Home > Products > spraying for board,cabinet door,glass > Good Quality Spray Painting / Paint Spray Machine FWE130
Good Quality Spray Painting / Paint Spray Machine FWE130
- FOSHAN PORT
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
FZF250 HDF Spraying Paint Machine
-
FXF250-P Handy Spray Paint Machine For the Board/Glass/Cabinet
-
HDF Painting Coating Equipment for Broad FXF250-PYW
-
Kitchen Cabinet Spray Painting Machine for Board
-
High Erequency Spray Painting Machine for Board FWE130
-
FXF250-PYW Excellent Quality Painting Machine for Wood
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | FENG XING | Model Number | FWE130 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description:

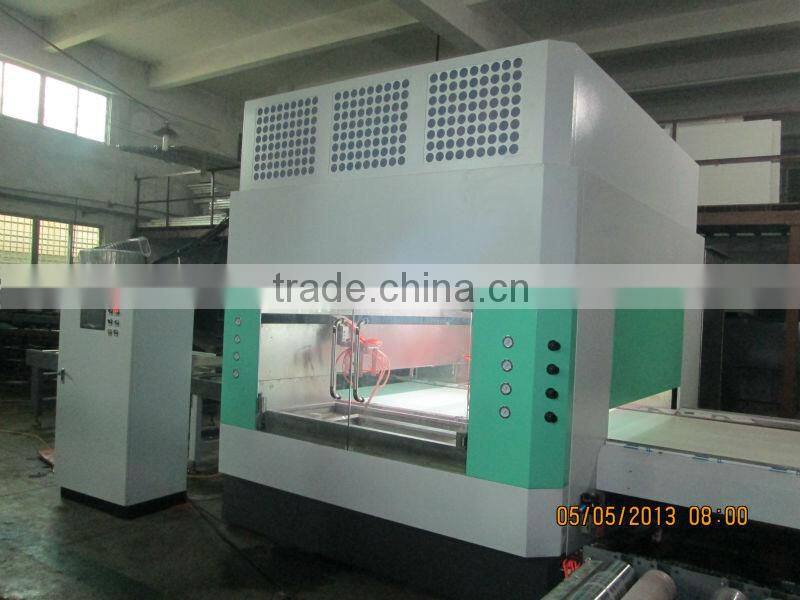

FWE130(atomatic numercal control spray painting machine)
Spraying for furniture board, wood line, cabinet door, panel, cabinet, stainless steel, showcase, glass
Standard Technical Parameters | |
Dimensions | 6*5*3 (m) |
Min processing length | 0.3 m |
Max processing width | 1.2 m |
Max processing height | 0.18 m |
Gun moving speed | 0~1800 mm/s |
Gun caliber | 0.8/1.0/1.3/2.5 |
Conveying speed | 6 m/min |
Servo motor (total) | 13 KW |
Air pressure | 0.6 MPA |
Types of paint | PE, NC, PU, UV, Waterborne paint |
Air consumption | 2800~3600 L/min |
The amount of paint used | 80~200 g/ m² |
Power supply | 380 V 50 HZ (three-phase) |
Features:
1. Equipped with an original imported Italian PE conveyer belt and all paint can be recycled.
2. Spray gun bearing adopts two-way two-group mode, and presets 4+4 airbrush system.
3. Spray gun system uses eight French Kremlin pressure mixed gas gun and a piston pump oil injection system.
4. The spray actuating device is drove by Japanese servo motor accurately.
5. An American BRANA light curtain scanning system is provided to scan the work-piece’s shape and size. The PLC controller can receive the work-piece’s signal and start spray painting.
6. Operator can set the painting parameter through the touching screen. Meanwhile the working state of the machine is displayed in the screen.
7. The circulation loop pipeline design ensures the stable pressure in spray gun and the paint flow is adjusted by the air-vent valve.
8. The air intake of double filtration devices makes the air clean and the filtration devices in exhaust pipe makes the paint aerosol being filtered clean.
9. The standard devices of the machine are eight original French KREMLIN medium-pressure mixed gas gun and a piston pump system. German WALTHER low pressure high atomization spray gun and French LERMLIN high pressure airless spray gun can be both used as automatic spray gun.
Packing:
How to distinguish between genuine and fake:
My machine have the Patent certificate of the People's Republic of China as below:
The contact way of our company:
Contact Us
- Foshan Shunde Hou Ji Numerical Control Equipments Co., Ltd.
- Contact nameSandy Lao Chat Now
- Phone86-0757-28904726
- AddressNo.32 Dadun Industry Road,Lecong Town ,Shunde Distrct,Foshan City,Guangdong China, Foshan, Guangdong
