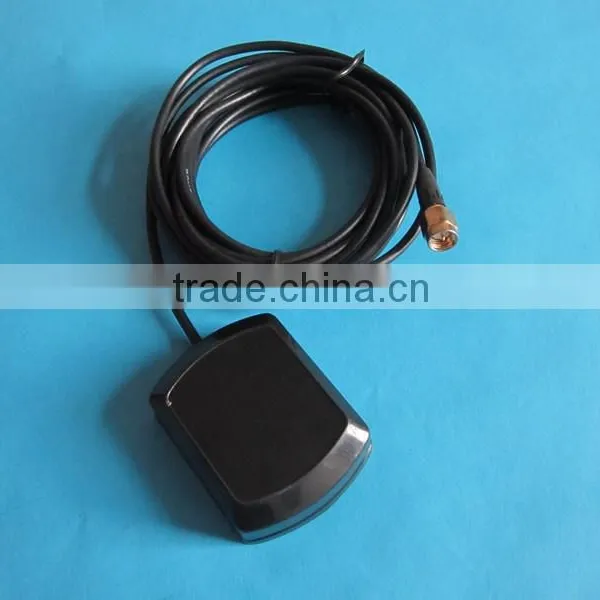

Manufacturer Supply 28dBi Antenna , External Receiver 1575.42mhz Antenna , Omni External Receiver GPS Antenna
Application
1.For GPS system,passive antenna,made of Ceramic Microstrip Substrate
2. Compact Size, Light Weight, Low Profile, Easy to Assemble and Hide
3. The high gain LNA is made of low noise microwave components to ensure the sensibility of the system.
Antenna |
Center Frequency |
1575.42±1MHz |
Band Width |
CF±5MHz |
|
Polarization |
RHCP |
|
Gain |
28dBic(Zenith) |
|
V.S.W.R |
<1.5 |
|
Impendance |
50Ω |
|
Axial Ratio |
3dB(max) |
|
Dimension |
20*20*4mm |
|
LNA |
Gain |
26±2dB |
Noise Figure |
<1.3 |
|
Filter Insertion Loss |
<3dB |
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
Supply Voltage |
2.2~5V DC |
|
Current Consumption |
10~26mA |
|
V.S.W.R |
<2.0 |
|
Mechanical |
Cable |
RG174 |
Connector |
SMA/MCX/FAKRA or others |
|
Radome Material |
ABS |
|
Mounting Method |
Magnet |
|
Environmental |
Operating Temperature |
-40°C~+85°C |
Relative Humidity |
Up to 95% |
|
Ingress Protection |
IP67 |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
