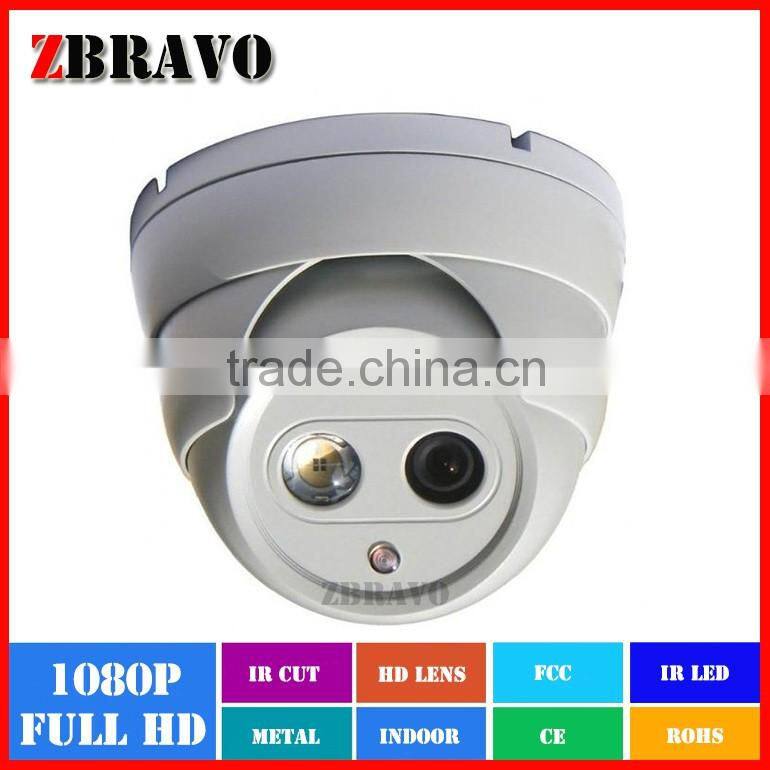

Indoor Sony Sensor 1920*1080 2Mega Pixel TVI Camera 1080P 1pc Dot Array Security Dome HDTVI Camera Compatible With Hikvision DVR

Indoor Sony Sensor 1920*1080 2Mega Pixel TVI Camera 1080P 1pc Dot Array Security Dome HDTVI Camera Compatible With Hikvision DVR thumbnail-1
Indoor Sony Sensor 1920*1080 2Mega Pixel TVI Camera 1080P 1pc Dot Array Security Dome HDTVI Camera Compatible With Hikvision DVR photo-1
US$ 30 - 60 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZBRAVO
Model Number:
Z-T3500H
Contact Supplier Request Quote Chat Now
Shenzhen Zbravo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ZBRAVO
Model Number Z-T3500H
Type Analog Camera
Style Dome Camera
Sensor CCD
Technology Infrared
Special Features Vandal-proof

Indoor Sony Sensor 1920*1080 2Mega Pixel TVI camera 1080P 1pc Dot Array Security Dome HDTVI Camera Compatible with Hikvision DVR





Indoor Sony Sensor 1920*1080 2Mega Pixel TVI camera 1080P 1pc Dot Array Security Dome HDTVI Camera Compatible with Hikvision DVR



  • Model : Z-T3500H
  • CCD + DSP : 1/3 SONY IMX322+NVP2440H
  • Image : 2.0Megapixel 1080P HDTVI Camera
  • Horizontal Resolution : 1080P

  • Effective Pixels (PAL / NTSC) : 1920(H)×1080(V)

  • Led: F5*35pcs
  • IR range : 35m
  • 3.6mm Fixed lens
  • Color: White
  • Weight: 1.2KG
  • Dimension : 127(D) x115(H)mm



Model Z-T3500N Z-T3500E Z-T3500N
CCD + DSP IMX239+FH8060 AR0130 +FH8521 IMX322+NVP2440H
Image Sensor 1.0 Megapixel CMOS      1.3 Megapixel CMOS       2.0 Megapixel CMOS
Horizontal Resolution 720P 960P 1080P
Effective Pixels
(PAL / NTSC) 		1280(H)×720(V) 1280(H)×960(V) 1920(H)×1080(V)
TV System PAL/NTSC
Compression H.264
Lens 3.6mm Fixed Lens
IR Leds 1pc Dot IR
IR Range 20Meters Night Vision
Day/Night Auto(ICR)/B&W/Color
Scanning System 2:1Interlace
Minimum illuminator 0.001Lux/F1.2
S/N Ratio >=58dB(AGG OFF)
AES 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
DNR 3D-DNR
WDR DWDR WDR
Transmission Distance Over 500m via 75-3 coaxial cable
Video Output 1-channel BNC high definition video output
AGC Auto/Manual/Off
White Balance ATW/Manual/Auto
Synchronization System Internal Synchronization
Dimension 140(D) x127(H)mm
Consumption <5W
Working Humidity ≤90%
Voltage DC12V (9V ~ 15V)
Operating Temperature —20℃~60℃ / 10% ~ 95%RH







Indoor Sony Sensor 1920*1080 2Mega Pixel TVI camera 1080P 1pc Dot Array Security Dome HDTVI Camera Compatible with Hikvision DVR



Indoor Sony Sensor 1920*1080 2Mega Pixel TVI camera 1080P 1pc Dot Array Security Dome HDTVI Camera Compatible with Hikvision DVR



Indoor Sony Sensor 1920*1080 2Mega Pixel TVI camera 1080P 1pc Dot Array Security Dome HDTVI Camera Compatible with Hikvision DVR







Indoor Sony Sensor 1920*1080 2Mega Pixel TVI camera 1080P 1pc Dot Array Security Dome HDTVI Camera Compatible with Hikvision DVR







Indoor Sony Sensor 1920*1080 2Mega Pixel TVI camera 1080P 1pc Dot Array Security Dome HDTVI Camera Compatible with Hikvision DVR
