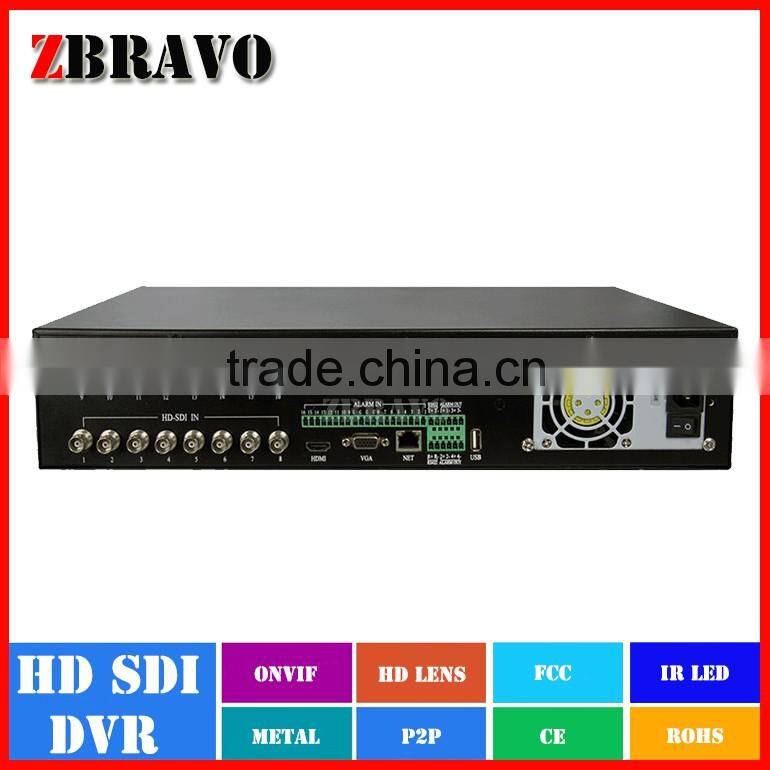

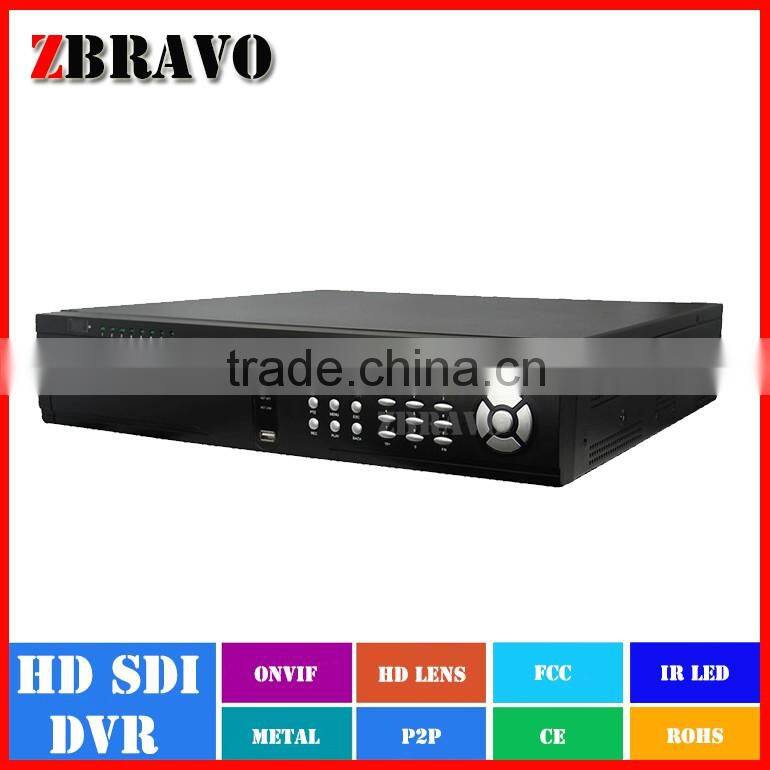

Multifunctional 1080P HD SDI DVR recorder for wholesales price
- Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources
- GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly
- With cloud access technology you can do remote view by one step without any complicated port forwarding. (P2P)
- Support 16CH recording
- Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other.
- Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobile phone view
- Multiple record mode:Auto,timer,motion and alarm recording mode
- Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play
- Support drag the progress bar can be targeted playback time directly
- Support 16CH playback simultaneously,each channel can be enlarge to full screen
- Support Network function:one IE browser centralized monitoring and CMS Software for HDSDI DVR
- Support DHCP,DDNS,PPPoE and NTP network service
- Supports remote surveillance up to 10 users simultaneously via the Enternet Explorer web browser
- Support more than 17 kinds protocol of the PTZ control
- Supports Multiple backup mode: USB flash drive,USB hard disk and network backup
- Support pre-alarm recording (before 10 sec),not lose any suspicious screen
- Support Mobile phone remote view by Symbian;Windows Mobile;Android,system;Iphone;Blackberry.
- Support High-Definition VGA output(VGA and BNC can work at the same time)
- Support alarm triggered recording will send alerts matter to the designated email.
- System auto recovery to power after power reconnected,and return to the pre-power-down state
| Model | Z-SDIDVR8016 |
| OS | LINUX RTOS |
| Video | |
| Video Codec | H.264 HIGH PROFILE Level 4.1 |
| Preview | 1920x1080 |
| Playback | 1920x1080 |
| Inputs | 16 * HDSDI inputs, BNC 1.0Vp~p, 75Ω |
| Output | 1 * VGA, DIN-15 cable |
| 1 * HDMI, 1* CVBS | |
| Resolution: 1920*1080, 1280*1024, 1024*768 | |
| Frame Rate | MAX 60fps, 400FPS(PAL);480FPS(NTSC) |
| Bitrate | 128k-12mbps |
| Aux Resolution | D1/CIF |
| Aux Bitrate | 1~15fps, 32kbps~512kbps |
| Capture | JPG |
| Audio | |
| Audio Codec | ADPCM-IMA/G.711/G.726 |
| Audio In | 16*RCA, 2 Vp~p, 600Ω |
| Audio Out | 1*RCA, 2 Vp~p, 600Ω |
| Talking In | 1*RCA, 2 Vp~p, 600Ω |
| Sample | 24KHz |
| Sample Bits | 16 bits |
| Audio Channel | mono |
| Audio Bitrate | 24kbps/64kbps |
| Type | 8*SATA, 2*eSATA |
| Record | |
| Record | Manual, time, motion detection, alarm linkage recording |
| Record Type | Hard disk record |
| Playback | 1080P 60fps/30fps Fulltime Playback |
| Backup | Mobile hard disk / U disk / DVD / Network |
| Cable | |
| Net | 1*10M/100M/1000M RJ45 Cable |
| USB | 2*USB Cable |
| PTZ | 1*RS422 |
| Alarm In | 16*Alarm Inputs |
| Alarm Out | 4*Alarm Outputs |
| Other | |
| Power | ATX110-220V, 250W, 50-60HZ |
| consumption | <80W(without had disk) |
| Tempreture | 0℃--+50 ℃ |
| Humidity | 10%~90%RH |
| Chassis | 2U |
| Size | 440x440x90mm mm(L*W*H) |
| Weight | 11Kg(Without HDD Accessories) |
