Pan Tilt Zoom 2.0 Mega Pixel AHD PTZ With 4/6/8/12mm Fixed Lens Optional

Pan Tilt Zoom 2.0 Mega Pixel AHD PTZ With 4/6/8/12mm Fixed Lens Optional thumbnail-1
Pan Tilt Zoom 2.0 Mega Pixel AHD PTZ With 4/6/8/12mm Fixed Lens Optional thumbnail-2
Pan Tilt Zoom 2.0 Mega Pixel AHD PTZ With 4/6/8/12mm Fixed Lens Optional thumbnail-3
Pan Tilt Zoom 2.0 Mega Pixel AHD PTZ With 4/6/8/12mm Fixed Lens Optional thumbnail-4

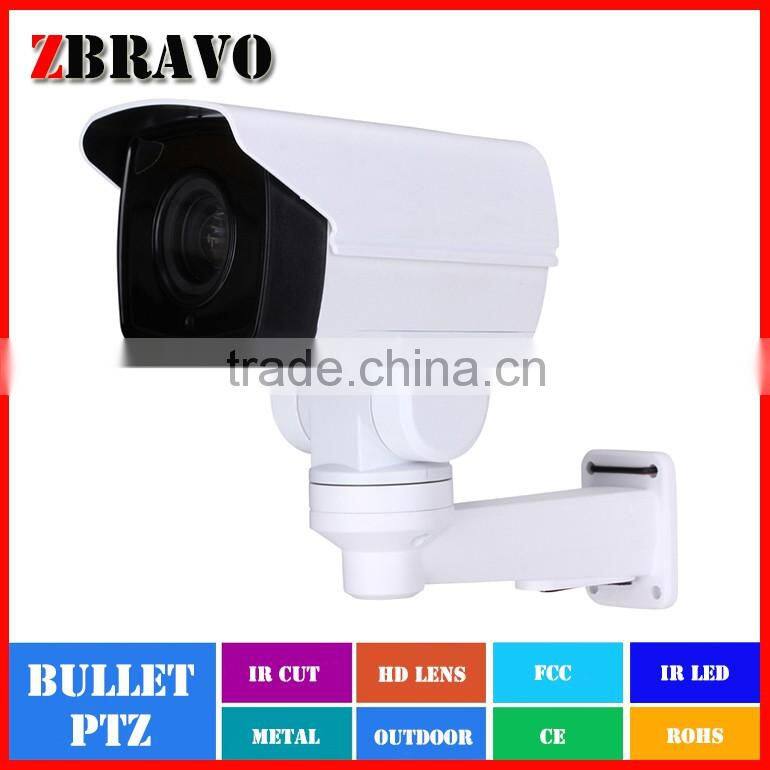

Pan Tilt Zoom 2.0 Mega Pixel AHD PTZ With 4/6/8/12mm Fixed Lens Optional photo-1

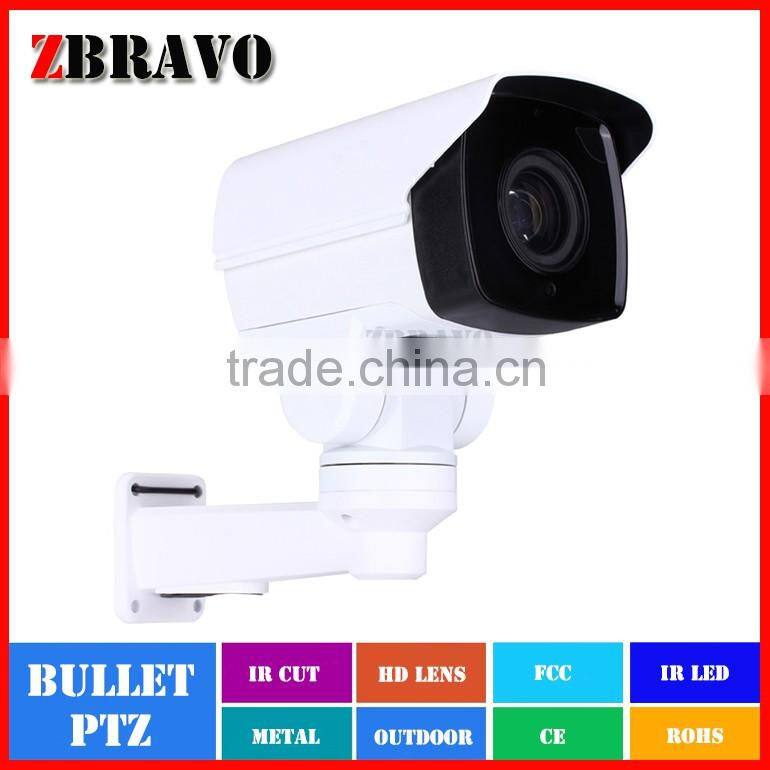

Pan Tilt Zoom 2.0 Mega Pixel AHD PTZ With 4/6/8/12mm Fixed Lens Optional photo-2

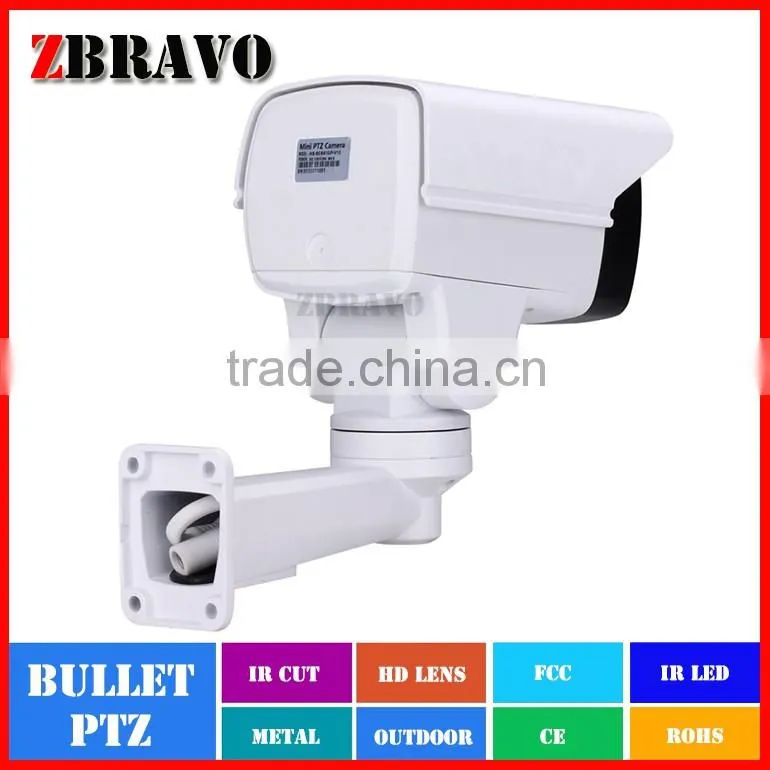

Pan Tilt Zoom 2.0 Mega Pixel AHD PTZ With 4/6/8/12mm Fixed Lens Optional photo-3

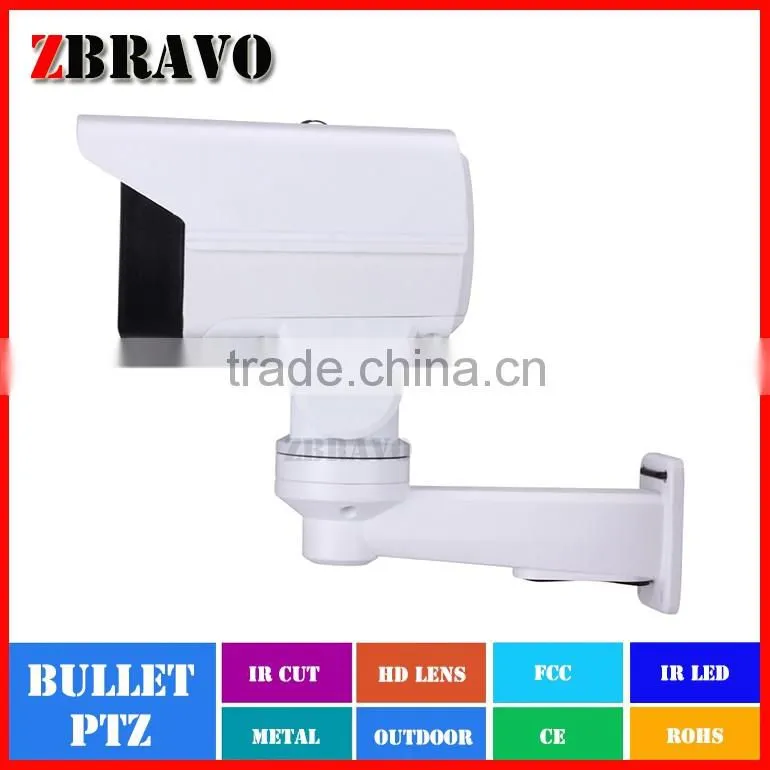

Pan Tilt Zoom 2.0 Mega Pixel AHD PTZ With 4/6/8/12mm Fixed Lens Optional photo-4
US$ 30 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZBRAVO
Model Number:
Z-AHDPTZ815F-2MP
Contact Supplier Request Quote Chat Now
Shenzhen Zbravo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ZBRAVO
Model Number Z-AHDPTZ815F-2MP
Type Analog Camera
Style Bullet Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof
Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional





Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional



  • Model : Z-AHDPTZ815F-2MP
  • Chipset : 1/3 SONY CMOS Sensor
  • Image Sensor : 2.0Megapixel 1080P IP Camera
  • Horizontal Resolution : 1080P

  • Effective Pixels (PAL / NTSC) : 1920(H)×1080(V)

  • Led:4pcs Array LED
  • IR range : 30m
  • Megapixel 4/6/8/12 fixed lens
  • Color: White



ModelZ-AHDPTZ815F-2MP
CameraImage Sensor1/3" SONY CMOS Sensor
Effective Pixels1080P(1920*1080)
Electronic Shutter1/25(1/30)s ~ 1/50000s
IRIS /
Day & NightICR
Min. Illumination0 Lux(IR on)
Image SettingsAWB, AGC Adjustable
Exposure Mode
(Auto/Manual)
Sharpness, Brightness Adjustable
Noise Reduction2D-NR
Image OrientationMirror/Flip
Privacy ZoneYes
 IrisFixed Iris
Water-proofIP66
BracketWall Bracket
Dimensions153mm×93mm×130mm(L×W×H)
Weight(gross)920g
PTZ Lens4/6/8/12mm optional
IR Distance30M
Pan Rotation Range0°~250°
Tilt Rotation Range-10°~55°
Pan Speed0.5°~12°/s
Tilt Speed0.5°~12° /s
Preset Position256
ConnectivityVideoBNC(AHD)
PowerDC Socket
OthersPower SupplyDC12V
Work Environment-35 degree ~60 degree, 10%~90% Humidity





Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional



Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional
Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional
Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional
Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional



Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional





Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional





Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional





Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional





Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional



Pan tilt zoom 2.0 mega pixel AHD PTZ with 4/6/8/12mm fixed lens optional
