factory wholesale high quality gps glonass antenna with BNC Male connector
Welcome to Shenzhen Yetnorson technology Co., LTD.
The advantage of factory wholesale high quality gps glonass antenna with BNC Male connector
1. Factory Price
2. Support different connectors
3. Custom cable length is available and fast delivery time .
1, Specifications of factory wholesale high quality gps glonass antenna with BNC Male connector
GPS Antenna |
Center Frequency |
1575.42±1MHz/1602mhz |
Band Width |
CF±5MHz |
|
Polarization |
RHCP |
|
Gain |
28dBic(Zenith) |
|
V.S.W.R |
<1.5 |
|
Impendance |
50Ω |
|
Axial Ratio |
3dB(max) |
|
Dimension |
25*25*4mm |
|
LNA |
Gain |
26±2dB |
Noise Figure |
<1.3 |
|
Filter Insertion Loss |
<3dB |
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
Supply Voltage |
2.2~5V DC |
|
Current Consumption |
10~26mA |
|
V.S.W.R |
<2.0 |
|
Mechanical |
Cable |
RG174 |
Connector |
SMA/MCX/FAKRA or others |
|
Radome Material |
ABS |
|
Mounting Method |
Magnet |
|
Environmental |
Operating Temperature |
-40°C~+85°C |
Relative Humidity |
Up to 95% |
|
Ingress Protection |
IP67 |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |

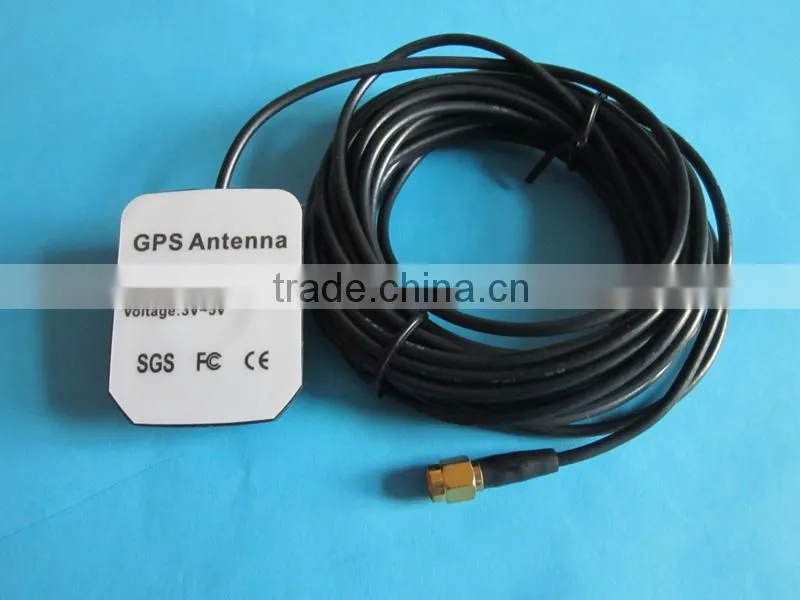

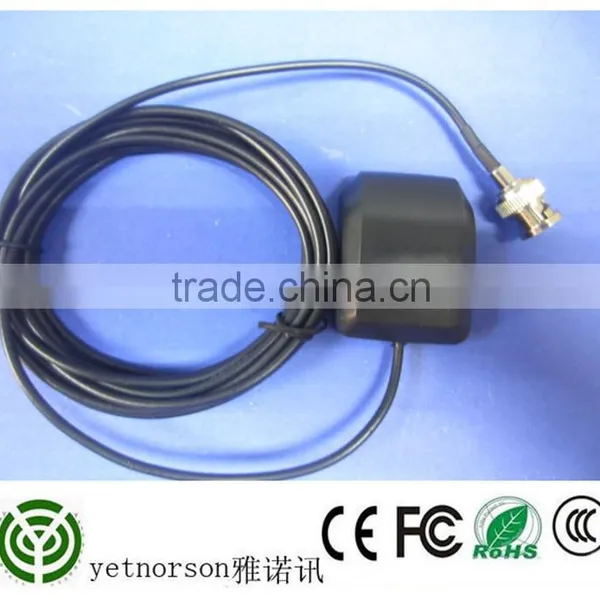

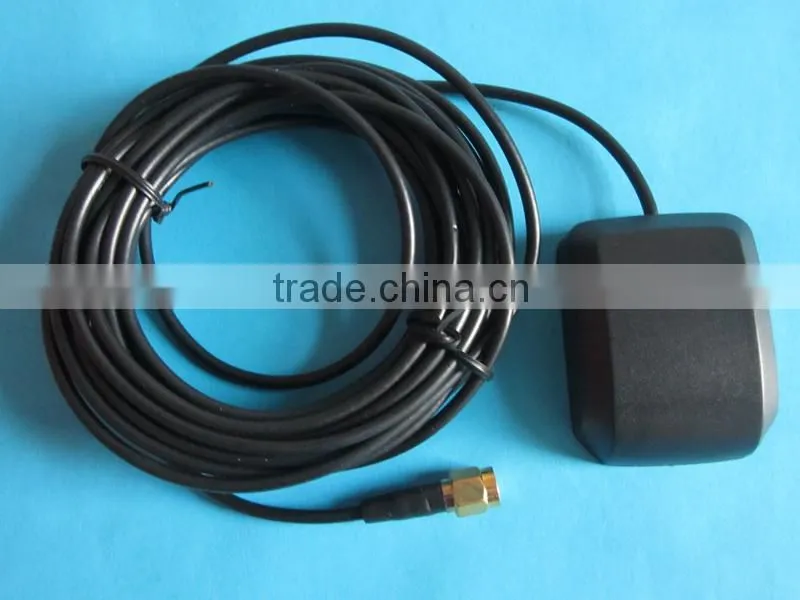

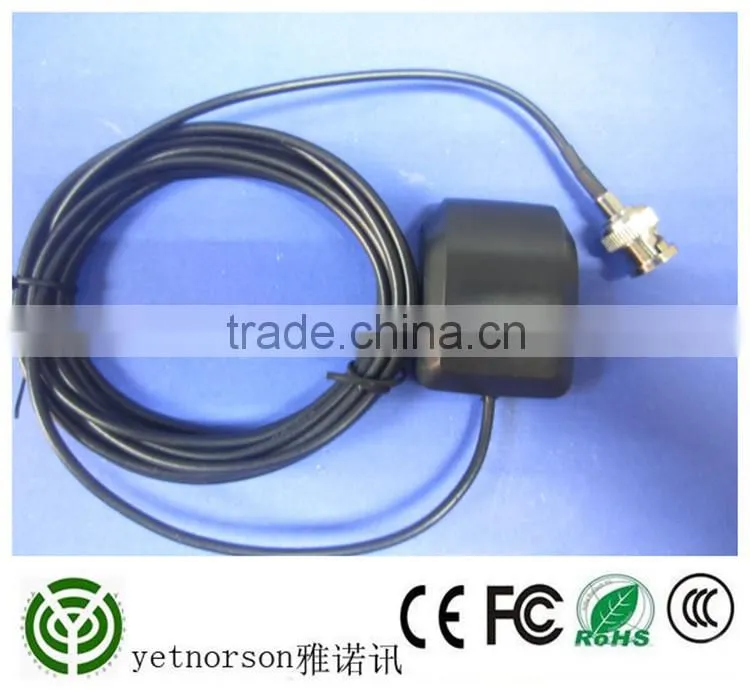

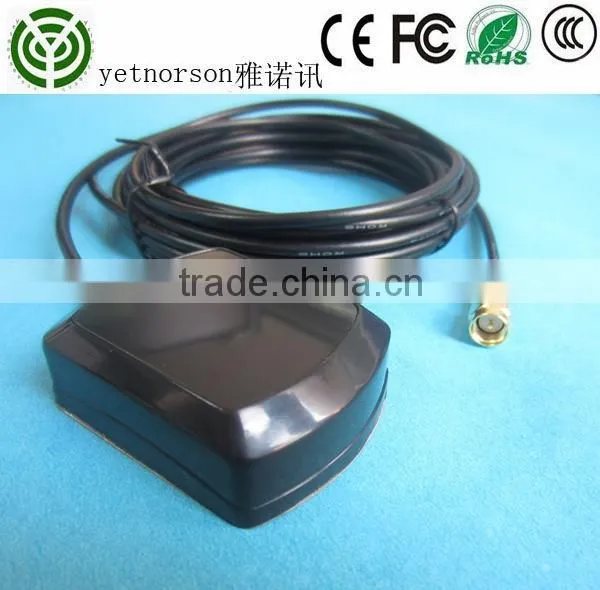

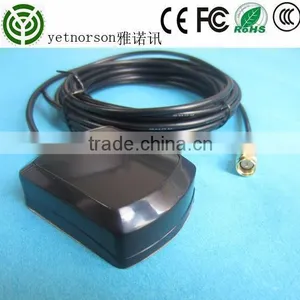

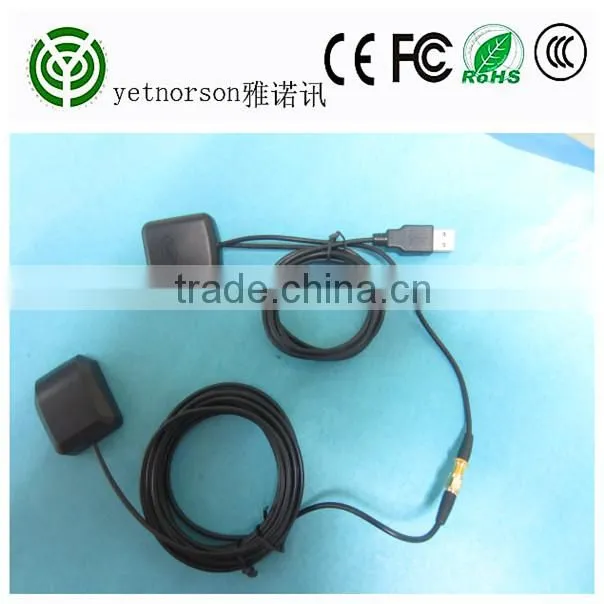

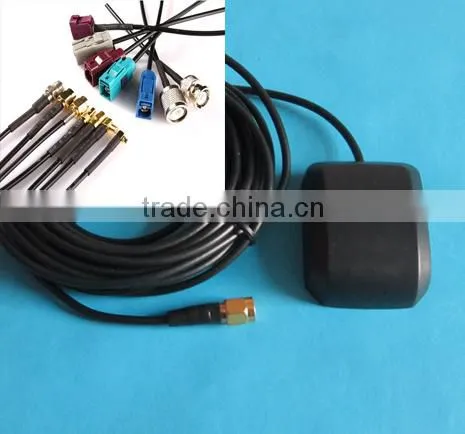

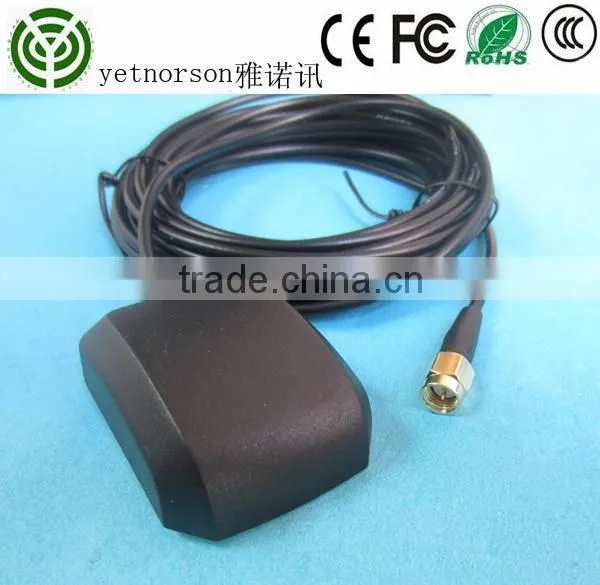

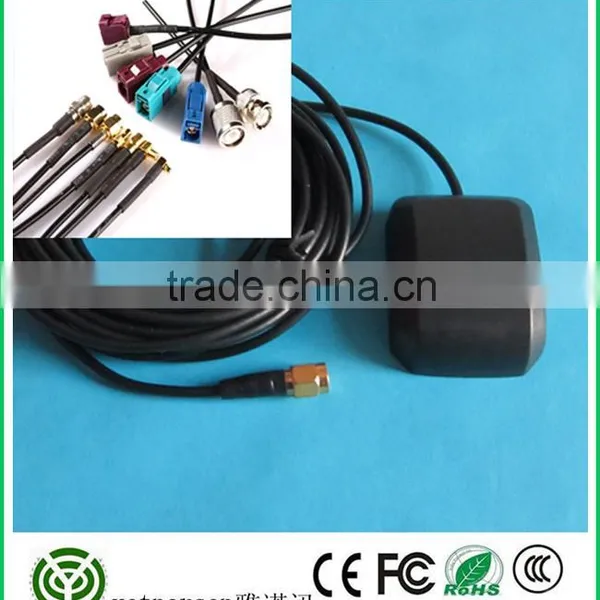

2,The photo of factory wholesale high quality gps glonass antenna with BNC Male connector

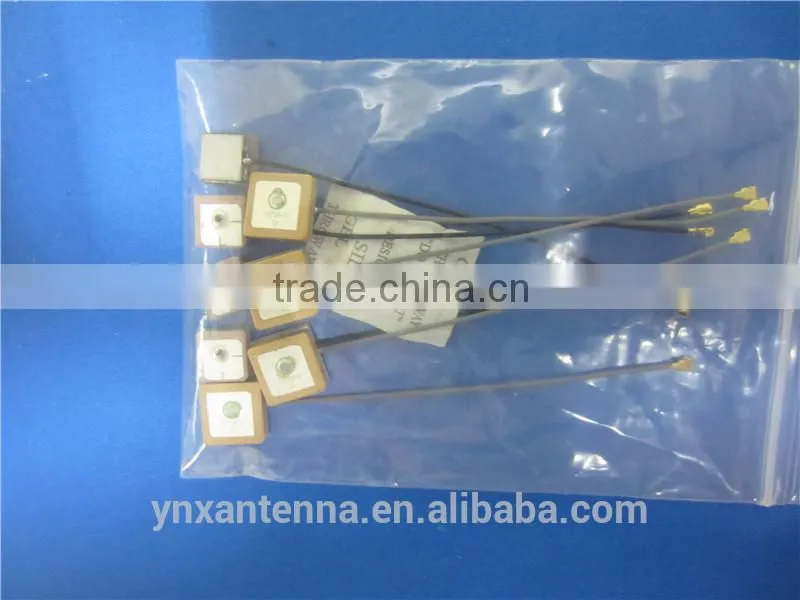

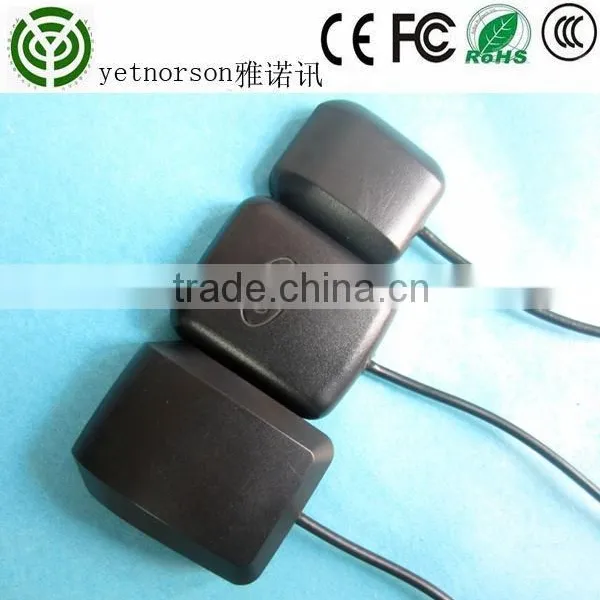

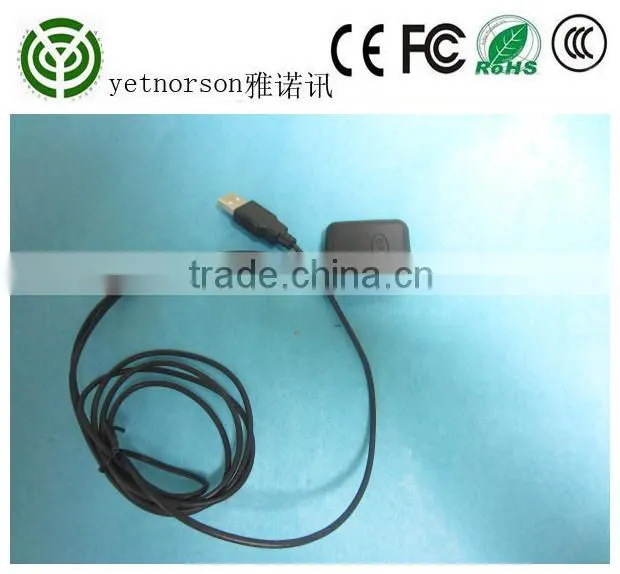

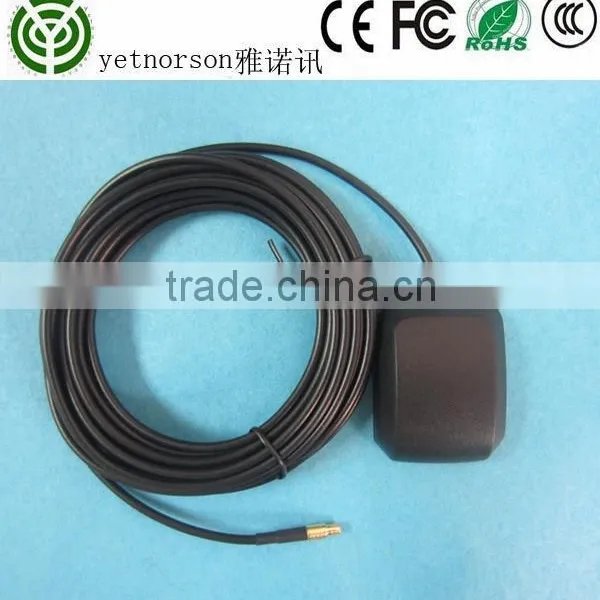

Some other type of our gps antenna :
3,The Payment of External Active GPS Antenna
We accept Paypal, T/T, Western Union, L/C and MoneyGram.
4,The Refund and External Active GPS Antenna
1. We can guarantee the product quality within one years
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred
5 The Packaging and Shipping of ISO9001 Factory price GPS antenna for android tablet gps antenna for tablet gps antenna for laptop
1. The parts from us are sure to have quality warranty, and they are double tested before shipping.
2. The items can be sent within 7working day after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging
6,Our Company
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series
7.Certificate
Any Other question freely contact us :
Skype: yetnorson03
Wechat/Tel/WhatsApp:+86 138 2527 1579
