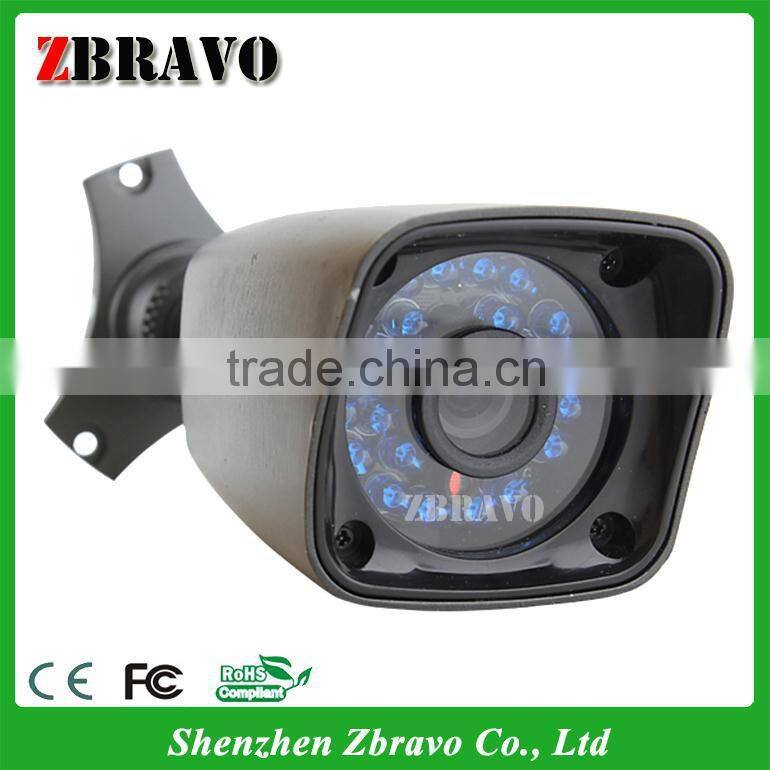

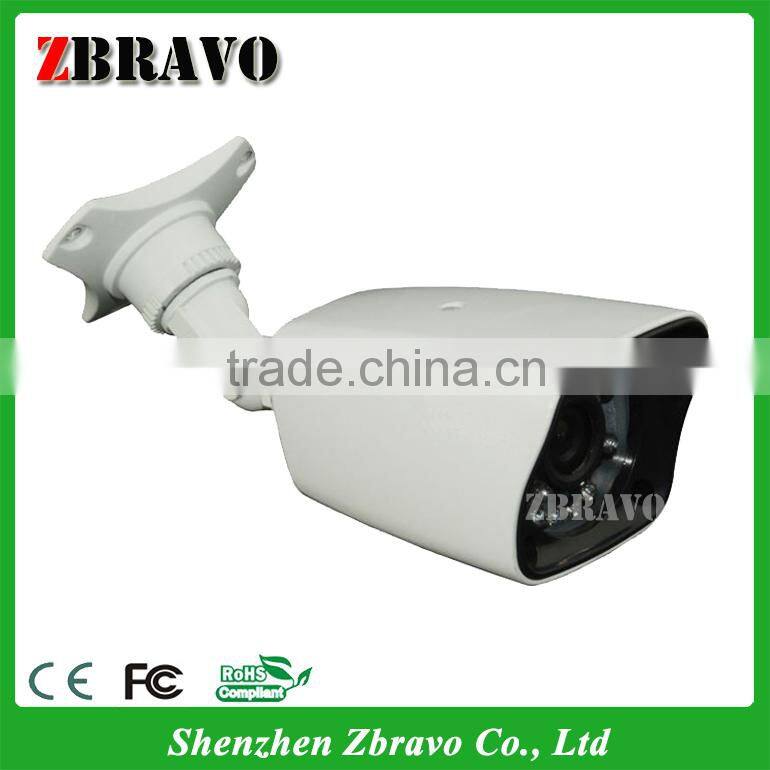

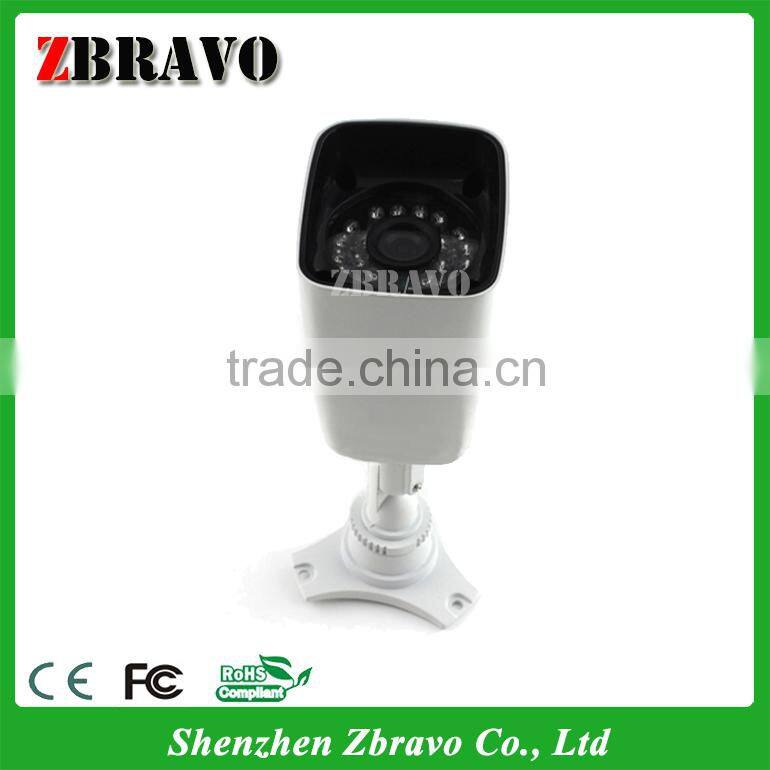

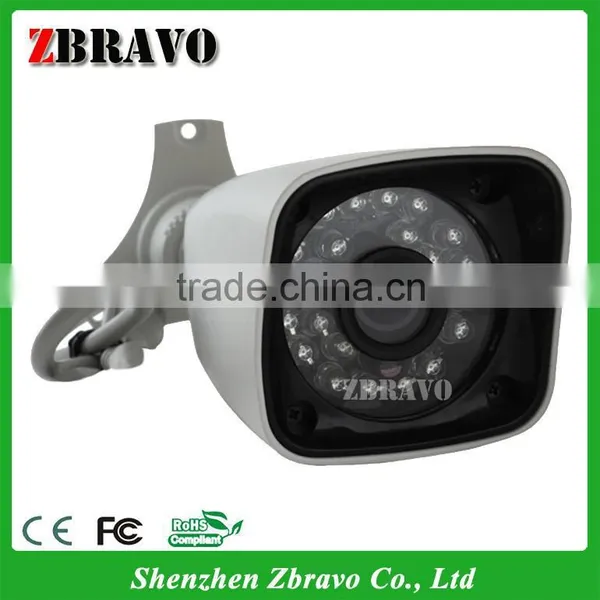

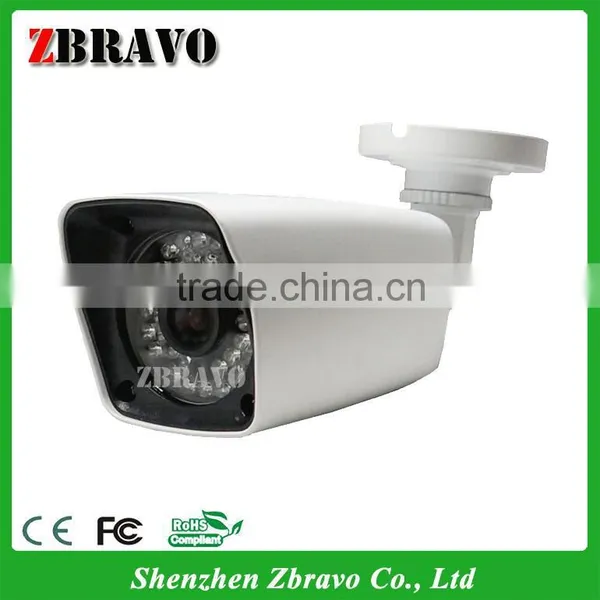

IP66 vandal-proof Onvif IP camer,Net working IP cam with IR cut

Model

Z-IP7208E-1M

Z-IP7208C-1M

Z-IP7208E-1.3M

Z-IP7208C-1.3M

Z-IP7208E-2M

Z-IP7208C-2M

Image Sensor

1/4" 1.0 Megapixel CMOS

1/3" 1.3 Megapixel CMOS

1/2.5" 2.0 Megapixel CMOS

Resolution

1280×720

1280×960

1920×1080

Minimum Illumination

3300mV/Lux-sec

5500mV/Lux-sec

1.76V/Lux-sec

S/N Ratio

39db

44db

52db

Frame Rate

1.0 Megapixel @ 25FPS / 30FPS

1.3 Megapixel @ 25FPS / 30FPS

2.0 Megapixel @ 25FPS / 30FPS

Min. Illumination

0.1Lux @(F1.2,AGC ON),0 LUX
with IR

0.01Lux @(F1.2,AGC ON),0 LUX
with IR

0.001Lux @(F1.2,AGC ON),0 LUX
with IR

Lens

3.6mm 3.0Megapixel fixed lens

IR Leds

36pcs F5 IR leds

IR Range

35meters Night Vision

Compression

H.264 High Profile

Focus Mode

Manual Focus

Day/Night

IR cut filter with auto switch, IR sensor.

Event Action

Video capture storage to back-end equipment,mobile phone,e-mail notification,channel amplifier,map display,go to the preset position

Network

1 RJ45 Ethernet interface, 10/100M adaptation

Delay

Within The LAN0.3S

Video Compression

H.264 compression ,dual stream ( 0.1M-6Mpbs adjustable)

Software Management

Multiple network monitoring and management system,
ONVIF be compatible with all software platform

WEB chrome

Microsoft Internet Explorer 6.0 or higher version,Google,Firefoorx,etc.

Protocol

Protocols: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

Onvif

Support Onvif 2.0

User Permission

Multi-user Classification Management

Power/Current

DC 12V/2A

POE

External POE (Optional)

Consumption

3.0W

Temperature

-10 ℃ ~+60 ℃

Humidity

0%-90%
