Shenzhen Zbravo Technology Co., Ltd.: Shenzhen, Guangdong, China; Main products: CCTV camera, IP camera, AHD camera, PTZ camera, DVR

Home > Products > HD AHD DVR > H264 High Profile 720P Realtime 4channel HD AHD Recorder Support CMS

H264 High Profile 720P Realtime 4channel HD AHD Recorder Support CMS

Name: H264 High Profile 720P Realtime 4channel HD AHD Recorder Support CMS
Brand: ZBRAVO
Availability: InStock

FOB Price

US$ 25 - 55 / Piece

1 Piece(Min. Order)

Port Shenzhen / Hongkong
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	ZBRAVO
Model Number	Z-ADVR6104ML8

Product Description

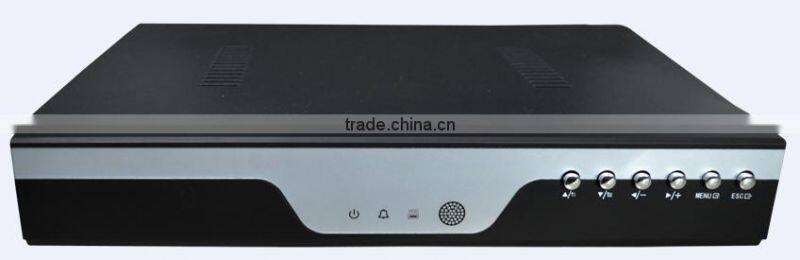

H264 High profile 720P Realtime 4channel HD AHD Recorder support CMS

Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources
GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly
With cloud access technology () you can do remote view by one step without any complicated port forwarding. (P2P)
Support 4CH AHD-M / 720P recording resolution
Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other.
Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobile phone view
Multiple record mode:Auto,timer,motion and alarm recording mode
Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play
Support drag the progress bar can be targeted playback time directly
Support 4CH playback simultaneously,each channel can be enlarge to full screen
Support Network function:one IE browser centralized monitoring and CMS Software for multiple AHD DVR
Support DHCP,DDNS,PPPoE and NTP network service
Supports remote surveillance up to 10 users simultaneously via the Enternet Explorer web browser
Support more than 17 kinds protocol of the PTZ control
Supports Multiple backup mode: USB flash drive,USB hard disk and network backup
Support pre-alarm recording (before 10 sec),not lose any suspicious screen
Support Mobile phone remote view by Symbian;Windows Mobile;Android,system;Iphone;Blackberry.
Support High-Definition VGA output(VGA and BNC can work at the same time)
Support alarm triggered recording will send alerts matter to the designated email.
System auto recovery to power after power reconnected,and return to the pre-power-down state

System	Model	Z-ADVR6104ML8
	Resolution	4CH 720P
	Operation System	Embedded LINUX
	System Resource	Multiple channels realtime recording,playback,network operation and USB backup
Screen	User Interface	GUI,on-screen menu tips
Screen	Screen Display	1/4 screen
Video	Standard	PAL(625 line,50f/s); NTSC(525 line,60f/s)
	Compression	H.264(High Profile)
	Display Quality	TV: 720P VGA: High definition
	Playback Quality	720P/960H/D1/Half-D1/CIF/QCIF
	Encode Capacity	720P
	Decode Capacity	720P
	Video Mode	DVR: 4CH720P/4CH720P@12FPS/4CHAHDL NVR: 8CH1080P/8CH720P/4CH1080P/4CH720P HVR(DVR+NVR): 2CH720P+2CH*720P
	Motion detect	Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)(only local channel)
Audio	Compression	G.711A
Audio	Talk back	Support
Record & Playback	Record Mode	Manual>Alarm>Video Detection>Timing
	Local Playback	1~4 channels
	Record Search	Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage & Backup	HDD Occupation	Video: CIF 4~5G/day/channel, D1 8~10G/day/channel
	HDD Occupation	Audio: 691.2M/day/channel
	Record Storage	Local HDD,Network
	Backup Mode	Network/USB movable HDD
Interface	Video Input	4ch BNC(1.0Vp-p,75Ω)
	Video Output	1ch BNC(1.0Vp-p,75Ω),1ch VGA
	Mobilephone View	Support
	Audio Input	1ch RCA(200-2800mV,30KΩ)
	Audio Output	1ch RCA(200-3000mV,5KΩ)
	Alarm Input	Not
	Alarm Output	Not
	Network	RJ45 10M/100M
	PTZ	Support
	USB	2 USB2.0
	HDD	1 SATA(maximum support 1 x 4T)
Others	3G & WIFI	Support
	Power Consumption	<5W(not include HDD)
	Working Temperature	0°C-+55°C
	Working Humidity	10%-90%
	Atmosphere Pressure	86kpa-106kpa
	Dimension	26023447mm
	Weight	2.5KG
