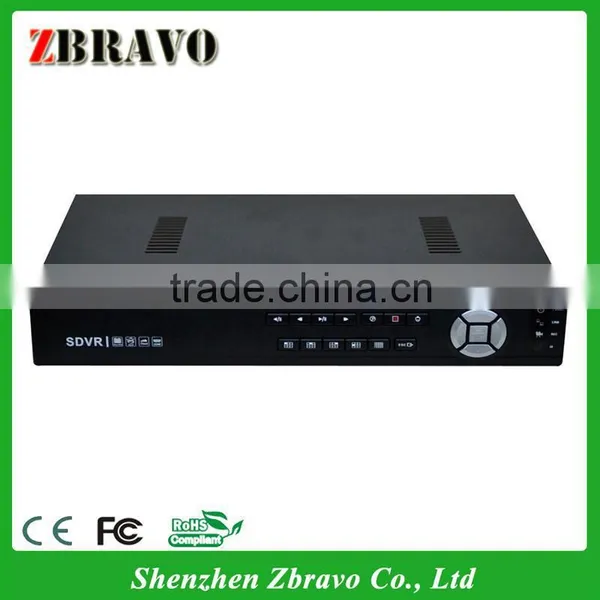

DVR/NVR/HVR 4channel HDAHD Recorder with cheap price
- Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources
- GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly
- With cloud access technology () you can do remote view by one step without any complicated port forwarding. (P2P)
- Support 4CH AHD-M / 720P recording resolution
- Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other.
- Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobile phone view
- Multiple record mode:Auto,timer,motion and alarm recording mode
- Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play
- Support drag the progress bar can be targeted playback time directly
- Support 4CH playback simultaneously,each channel can be enlarge to full screen
- Support Network function:one IE browser centralized monitoring and CMS Software for multiple AHD DVR
- Support DHCP,DDNS,PPPoE and NTP network service
- Supports remote surveillance up to 10 users simultaneously via the Enternet Explorer web browser
- Support more than 17 kinds protocol of the PTZ control
- Supports Multiple backup mode: USB flash drive,USB hard disk and network backup
- Support pre-alarm recording (before 10 sec),not lose any suspicious screen
- Support Mobile phone remote view by Symbian;Windows Mobile;Android,system;Iphone;Blackberry.
- Support High-Definition VGA output(VGA and BNC can work at the same time)
- Support alarm triggered recording will send alerts matter to the designated email.
- System auto recovery to power after power reconnected,and return to the pre-power-down state
System |
Model |
Z-ADVR6104M8 |
Resolution |
4CH 720P |
|
Operation System |
Embedded LINUX |
|
System Resource |
Multiple channels realtime recording,playback,network operation and USB backup |
|
Screen |
User Interface |
GUI,on-screen menu tips |
Screen Display |
1/4 screen |
|
Video |
Standard |
PAL(625 line,50f/s); NTSC(525 line,60f/s) |
Compression |
H.264(High Profile) |
|
Display Quality |
TV: 720P VGA: High definition |
|
Playback Quality |
720P/960H/D1/Half-D1/CIF/QCIF |
|
Encode Capacity |
720P |
|
Decode Capacity |
720P |
|
Video Mode |
DVR mode: 4CH*720P/4CH*AHDL |
|
Motion detect |
Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)(only local channel) |
|
Audio |
Compression |
G.711A |
Talk back |
Support |
|
Record |
Record Mode |
Manual>Alarm>Video Detection>Timing |
Local Playback |
1~4 channels |
|
Record Search |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
Storage |
HDD Occupation |
Video: CIF 4~5G/day/channel, D1 8~10G/day/channel |
Audio: 691.2M/day/channel | ||
Record Storage |
Local HDD,Network |
|
Backup Mode |
Network/USB movable HDD |
|
Interface |
Video Input |
4ch BNC(1.0Vp-p,75Ω) |
Video Output |
1ch BNC(1.0Vp-p,75Ω),1ch VGA |
|
Mobilephone View |
Support |
|
Audio Input |
1ch RCA(200-2800mV,30KΩ) |
|
Audio Output |
1ch RCA(200-3000mV,5KΩ) |
|
Alarm Input |
Not |
|
Alarm Output |
Not |
|
Network |
RJ45 10M/100M |
|
PTZ |
Support |
|
USB |
2 USB2.0 |
|
HDD |
1 SATA(maximum support 1 x 4T) |
|
Others |
3G & WIFI |
Support |
Power Consumption |
<5W(not include HDD) |
|
Working Temperature |
0°C-+55°C |
|
Working Humidity |
10%-90% |
|
Atmosphere Pressure |
86kpa-106kpa |
|
Dimension |
260*234*47mm |
|
Weight |
2.5KG |
