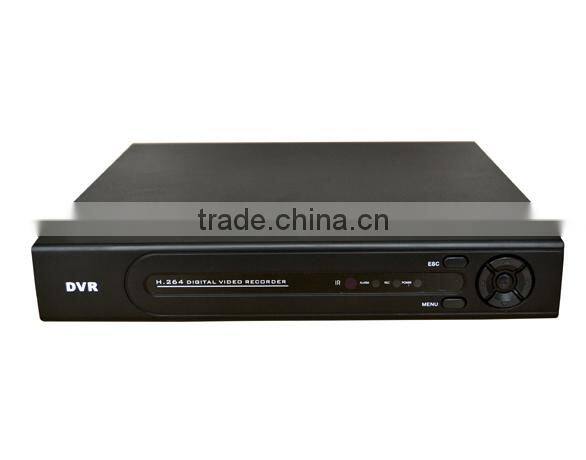

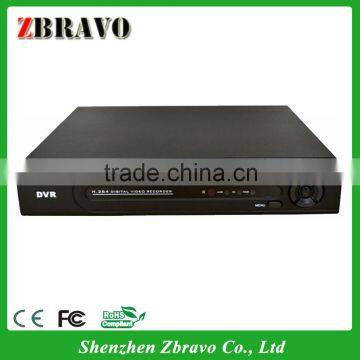

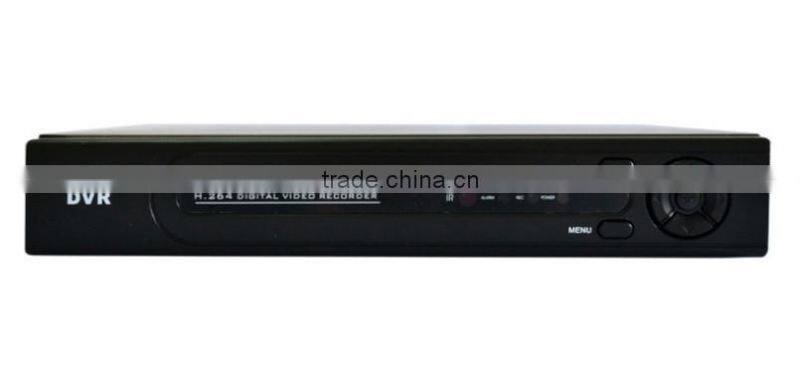

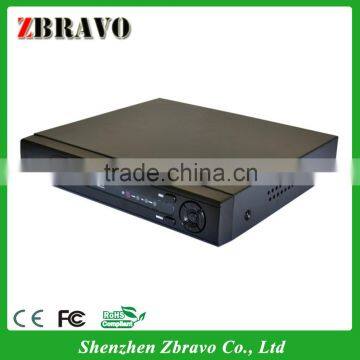

4ch AHD-L DVR,4channel AHD Recorder H264 iCloud P2P HD AHD DVR
- Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources
- GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly
- With cloud access technology () you can do remote view by one step without any complicated port forwarding. (P2P)
- Support 4*D1 real-time /4*AHD-L*12fps recording resolution
- Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other.
- Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobile phone view
- Multiple record mode:Auto,timer,motion and alarm recording mode
- Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play
- Support drag the progress bar can be targeted playback time directly
- Support Network function:one IE browser centralized monitoring and CMS Software for multiple AHD DVR
- Support DHCP,DDNS,PPPoE and NTP network service
- Supports remote surveillance up to 10 users simultaneously via the Enternet Explorer web browser
- Support more than 17 kinds protocol of the PTZ control
- Supports Multiple backup mode: USB flash drive,USB hard disk and network backup
- Support pre-alarm recording (before 10 sec),not lose any suspicious screen
- Support Mobile phone remote view by Symbian;Windows Mobile;Android,system;Iphone;Blackberry.
- Support High-Definition VGA output(VGA and BNC can work at the same time)
- Support alarm triggered recording will send alerts matter to the designated email.
- System auto recovery to power after power reconnected,and return to the pre-power-down state
System | Model | Z-ADVR7804TEL |
Main processor | Huawei Hi XM610 | |
Video | video compression | H.264(High Profile); |
Encode | 4*D1 real-time /4*AHD-L*12fps | |
Decode | 2*D1 real-time /4*AHD-L*12fps | |
Multi-mode | DVR:4*AHD-L;4*D1; | |
Audio | Audio compression | G.711A |
Intercom | Support | |
Recording | Record mode | Manual>alarm>motion detection>timing |
Playback Channels | 4 (pure local input mode) | |
Storage | Space occupation | 960H:12~20G/ day*channel |
720P:20G~30G/ day*channel | ||
Audio:691.2M/ day*channel | ||
Backup mode | Network backup,USB HDD, USB writer,SATA writer | |
Interface | Video input | 4 BNC |
Video output | 1ch VGA,1ch HDMI,1ch TV | |
Audio input | 4ch RCA | |
Audio output | 1ch RCA | |
Alarm input | no | |
Alarm output | no | |
Network interface | RJ45 10M/100M Adaptive Ethernet port | |
PTZ control | RS485;support multiple PTZ protocols | |
USB | 2 USB ports | |
Hard disk | 1 SATA(Each maximum support 4T) | |
Wireless | No | |
Other | Power | 12V/2A |
dimension | 255mm(length)* 225mm(width)* 45mm(height) |
