Home > Products > HD AHD Camera > AHD 1.0Megapixel Camera 720P Dot IR 3.6mm Mega Lens CMOS AHD Camera

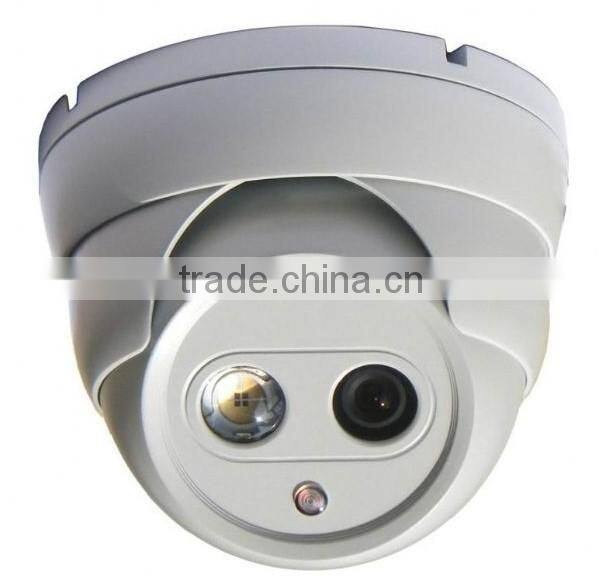

AHD 1.0Megapixel Camera 720P Dot IR 3.6mm Mega Lens CMOS AHD Camera
US$ 5 - 40
/ Piece
1 Piece(Min. Order)
- Shenzhen / Hongkong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
New Design! 1.3Megapixel 960P Dot IR Plastic 3.6mm Board Lens Dome AHD Camera
-
AHD 960P Camera Mini Dome 3.6mm Mega Lens Sony CMOS IR AHD Camera
-
New Design! 1.3Megapixel 960P Dot IR 3.6mm Board Lens 1500TVL Dome AHD Camera
-
AHD 1.3Megapixel Dome Camera 960P Dot IR 3.6mm Mega Lens IR AHD Mini Micro Camera Plastic
-
AHD 960P Camera Dot IR 3.6mm Mega Lens Sony CMOS IR AHD Camera
-
Indoor Dome 720P 1Megapixel AHD Camera Dot Matrix 3.6mm Lens CMOS Nextchip AHD Security Camera Home Safe
Product Details
| Place of Origin | Guangdong, China | Brand Name | Zbravo | |
| Model Number | Z-6306AHD | Type | Analog Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Other, CMOS AHD Camera |
Product Description
Specifications
AHD 1.0Megapixel Camera 720P Dot IR 3.6mm Mega Lens CMOS AHD CameraIR LED 1pc Dot IR
30M IR,With IR cut
Metal Dome
1.0MP
AHD 1.0Megapixel Camera 720P Dot IR 3.6mm Mega Lens CMOS AHD Camera
- Model : Z-6306AHD
- CCD + DSP : 1/4 OV9712+NVP2431H
- Image Sensor : 1Megapixel 720P AHD Camera
- Horizontal Resolution : 720P (1200TVL)
Effective Pixels (PAL / NTSC) : 1280(H)×720(V)
- Led: 1pc Dot IR
- IR range : 30m
- Mega 3.6mm board lens
- Color: White
- Weight: 0.45KG
- Dimension : 110(D) x85(H)mm
| Model | Z-6306AHD | Z-6306AHE | |
| CCD + DSP | 1/4 OV9712+NVP2431H | 1/3 SONY IMX238+NVP2431H | |
| Image Sensor | 1.0 Megapixel CMOS Sensor | 1.3 Megapixel CMOS Sensor | |
| Horizontal Resolution | 720P (1200TVL) | 960P (1500TVL) | |
| Effective Pixels (PAL / NTSC) | 1280(H)×720(V) | 1280(H)×960(V) | |
| TV System | PAL/NTSC | ||
| Lens | Mega 3.6mm board lens | ||
| Scanning System | 2:1Interlace | ||
| Minimum illuminator | 0.001Lux/F1.2 | ||
| S/N Ratio | >=58dB(AGG OFF) | ||
| AES | 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC) | ||
| DNR | 3D-DNR | ||
| DWDR | YES | ||
| Synchronization System | Internal Synchronization | ||
| Voltage | DC12V (9V ~ 15V) | ||
| Operating Temperature | —20℃~60℃ / 10% ~ 95%RH | ||
