Automatic Flat Bed Die Cutting Machine MW790A
US$ 100,000 - 200,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Product Type:
Other, die cutting machine
Processing Type:
Other, foil stamper and die cutter
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Flat Bed Die Cutting Machine MW1050AUS$ 100,000 - 200,000MOQ: 1 Unit -
Automatic Foil Stamping and Die Cutting MachineUS$ 100,000 - 200,000MOQ: 1 Unit
-
Hot Foil Stamping and Die Cutting MachineUS$ 50,000 - 100,000MOQ: 1 Unit
-
Automatic Rotary Hot Foil Stamping MachineUS$ 300,000 - 5,000,000MOQ: 1 Unit
-
Automatic Foil Stamping and Die Cutting MachineUS$ 250,000 - 350,000MOQ: 1 Unit
Product Type
Other, die cutting machine
Processing Type
Other, foil stamper and die cutter
Place of Origin
Shanghai, China
Brand Name
Towin
Model Number
MW790A
Certification
CE
Specifications
Automatic flat bed die cutting machine1.Die cutting machine
2.With stripping & embosing
3.High speed 5500 S/H
Automatic flat-bed die cutting machine
MAIN FEATURES

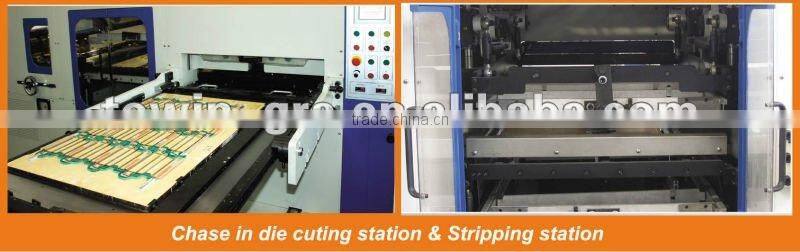

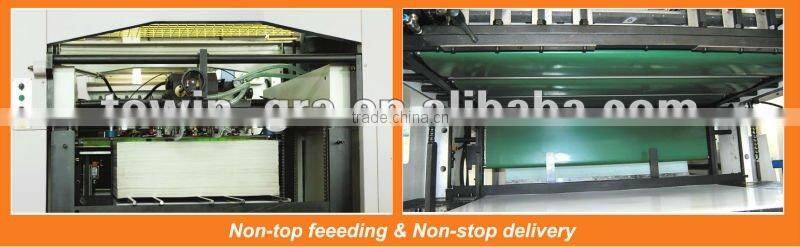

AUTOMATIC DIE-CUTTING MACHINE MODEL MW790A is consisted of feeding unit. main unit, stripping unit and delivery unit. Non-stop feeding and delivery, electrical control system are available with the machine. The inserter, pre-stack, stripping unit, BECKER pump and thermal embossing are all for you options.
- 1.Main unit drive is using AC inverter control. The air clutch is imported for machine’s running and break.
- 2.Micro-processor composed of PLC and program to monitor running of whole machine. More visual sketch plus word trouble indications in touch screen on the main unit to enable you to find trouble caused in shortest time to reduce machine down time.
TECHNICAL SPECIFICATIONS
- Max. sheet size(mm) 790×560
- Max. sheet size(mm) 310×210
- Max. Die cutting size (mm) 760×520
- Inside chase size (mm) 780×530
- Height of cutting rules (mm) 23.8
- Inter-platen distance (mm) 51.5
- Max. pressure (N) 120×104
- Stock range cardboard 90~2000g/m2
- E,B flute
- Min. gripper margin (mm) 6
- Max. machine speed (s/h) 5500
- Cutting plate thickness (mm) 5(Optional 4+1)
- Feeding pile height (mm) 1200
- Delivery pile height (mm) 950
- Rated power (kw) 15
- Air supply 0.8~1.0MPa,≥0.6m3/min
- Overall dimension(mm) 3855×3560×2210(MW790) 4668×3560×2210(MW790A)
- Weight of machine (kg) 7500 9000(MW790A)
