Specifications
Macnoald hamburger box machine1.Carton erecting for hamburg boxes,Mcdonald, KFC
2.High speed

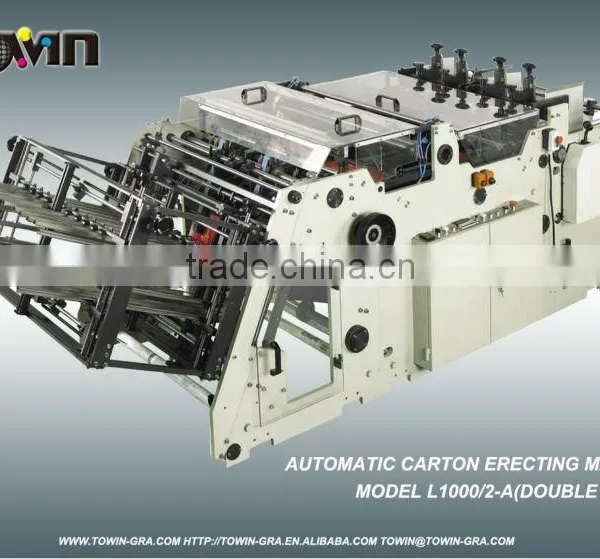

Hamburger box machine (Macdonald)
Applications:
This machine is used to produce the erected carton box such as the Hamburg boxes and other carton and micro flute corrugated trays, which are widely used by Mcdonal, KFC and other fast food brands.
Working principal:
Blank feeding unit feed the blanks to conveying chains. The chains will bring them to forming mould. In this section, the blanks will be applied water glue or hot melt glue. The gluing points and amount can be adjusted as you want. The gluing amount can be adjusted without machine stop. The glued blanks will be pressed by the forming mould. Then the formed erected box will be conveyed to box collecting section, where auto piling and counting will be finished. The auto counter actions according to your set value
Features:
¨ High efficiency: Produce as many as 180 pcs per minute and formed erected boxes are counted automatically
¨ Compact machine: Convenient for installation.
¨ Low power consumption: 8kw
¨ Frequency converter speed variation: Smooth, stable and high precision.
¨ Adoption of PLC: High automation, easy operation and maintenance and low rate of fault.
¨ Adoption of servo control: Move precisely, stably, smoothly and with low noise and vibration
¨ The best Cost-effective
Technical specifications
Model |
L800(single stream) |
L1000/2-A(double stream) |
Length of box blank(L) |
100-450mm |
100-450mm |
Width of box blank(B) |
100-580.385mm |
100-385mm |
Box height (H) |
15-200mm |
1260X800mm |
Length of box cover (H1): |
50-200mm |
50-200mm |
Box erection angle |
5-40 degree |
5-40 degree |
Substrate |
Carton:200-600gsm Corrugated board: less than 1.5mm |
Carton:200-600gsm Corrugated board: less than 1.5mm |
Machine speed: |
180pcs/min |
360pcs/min |
Machine weight |
2 tons |
2.5 tons |
Power supply: |
380V/50Hz |
380V/50Hz |
