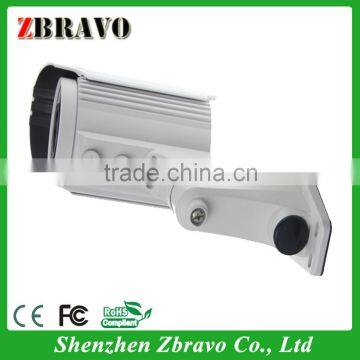

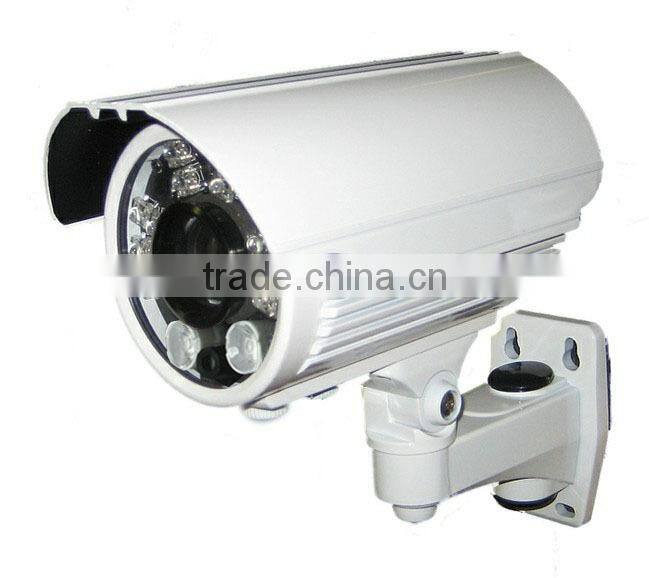

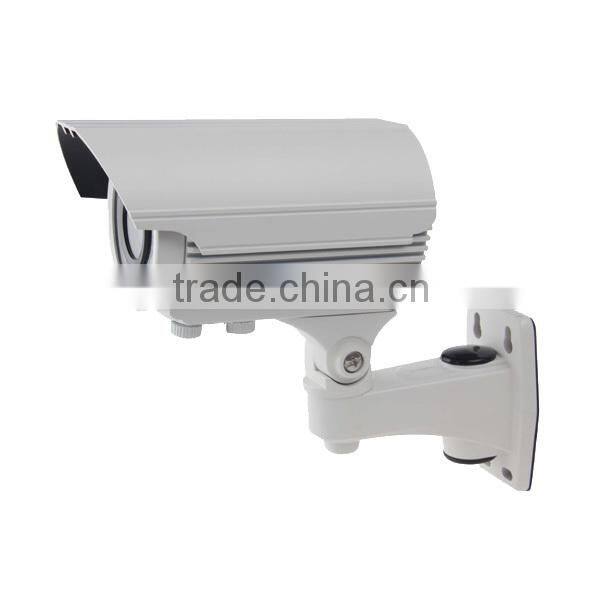

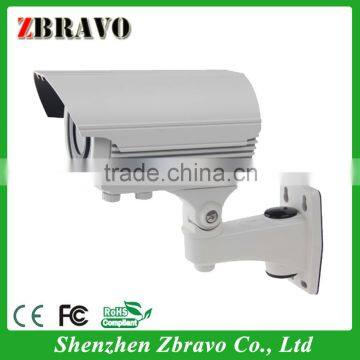

Fisheye Led Sense up Dot IR Bullet Camera With OSD

Fisheye Led Sense up Dot IR Bullet Camera With OSD thumbnail-1
Fisheye Led Sense up Dot IR Bullet Camera With OSD thumbnail-2
Fisheye Led Sense up Dot IR Bullet Camera With OSD thumbnail-3
Fisheye Led Sense up Dot IR Bullet Camera With OSD photo-1
Fisheye Led Sense up Dot IR Bullet Camera With OSD photo-2
Fisheye Led Sense up Dot IR Bullet Camera With OSD photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Zbravo
Model Number:
Z-D820K
Contact Supplier Request Quote Chat Now
Shenzhen Zbravo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Zbravo
Model Number Z-D820K
Type Analog Camera
Style Bullet Camera
Sensor CCD
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

Fisheye led Sense up Dot IR Bullet Camera with OSD
2pcs Dot IR with 7 pcs fish eye led
IR range :60m
Sony 650TVL

Fisheye led Sense up Dot IR Bullet Camera with OSD





Fisheye led IP66 Waterproof Sense up Dot IR Bullet Camera



  • Model : Z-D820K
  • CCD + DSP : ICX639BK+NVP2090
  • Horizontal Resolution : 650TVL , DWDR , OSD, 3DNR, Sense up
  • Pickup Device : 1/3'' Sony SUPER HAD CCD  Ⅱ
  • Waterproof Dot IR Camera
  • 2pcs Dot IR with 7 pcs fish eye led
  • IR range :60m
  • Megapixel 2.8-12 mm manual zoom lens
  • Color:White
  • Weight: 1.5KG
  • Dimension : 275(L) *110(W) *100(H)mm





Model Z-D820 Z-D820K Z-D820E Z-D820A Z-D820V
Image Sensor 1/3'' Sony SUPER HAD CCD  Ⅱ
CCD + DSP ICX633BK+3142 ICX639BK+2090E ICX811+4140 ICX811AK+4151 ICX663AK+4141
TV System PAL/NTSC
Horizontal Resolution 450TVL 650TVL 700TVL 800TVL 900TVL
Image Resolution
(PAL / NTSC)		 P:500(H)×582(V) P:752(H)x582(V) P:976(H)x582(V)
N:510(H)×492(V) N:768(H)x494(V) N:976(H)x494(V)
Lens 2.8-12mm varifocal lens
Scanning System 2:1Interlace
Minimum illuminator 0.0005Lux/F1.2 0.001Lux/F1.2
S/N Ratio >=48dB(AGG OFF) >=52dB(AGG OFF) >=115dB(AGG OFF)
AES 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
WDR No Yes
DNR No 3D 2D 3D 3D
OSD No Yes
Gamma Adjusting 0.45
White Balance ATW/Manual/Auto
AGC Auto/Manual/Off
synchronization System Internal Synchronization
Video Output 1.0Vp-p,75Ω
Voltage DC12V (9V ~ 15V)
Operating Temperature —20℃~60℃ / 10% ~ 95%RH






Fisheye led Sense up Dot IR Bullet Camera with OSD



                     Fisheye led Sense up Dot IR Bullet Camera with OSD

                     Fisheye led Sense up Dot IR Bullet Camera with OSD

Fisheye led Sense up Dot IR Bullet Camera with OSD







Fisheye led Sense up Dot IR Bullet Camera with OSD







Fisheye led Sense up Dot IR Bullet Camera with OSD
