Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera

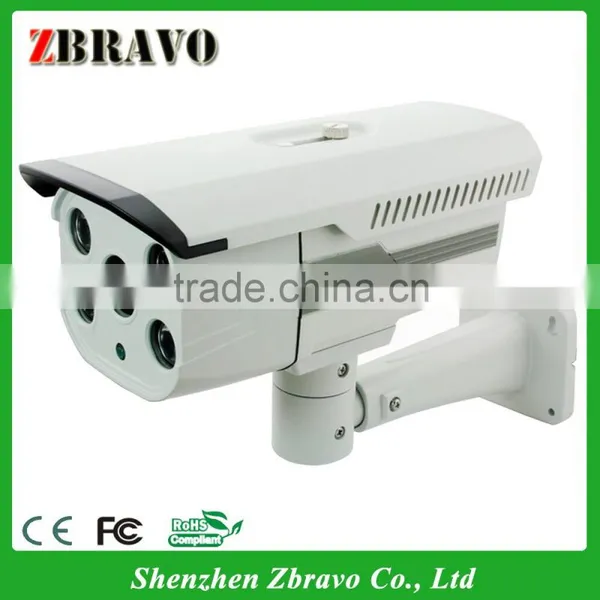

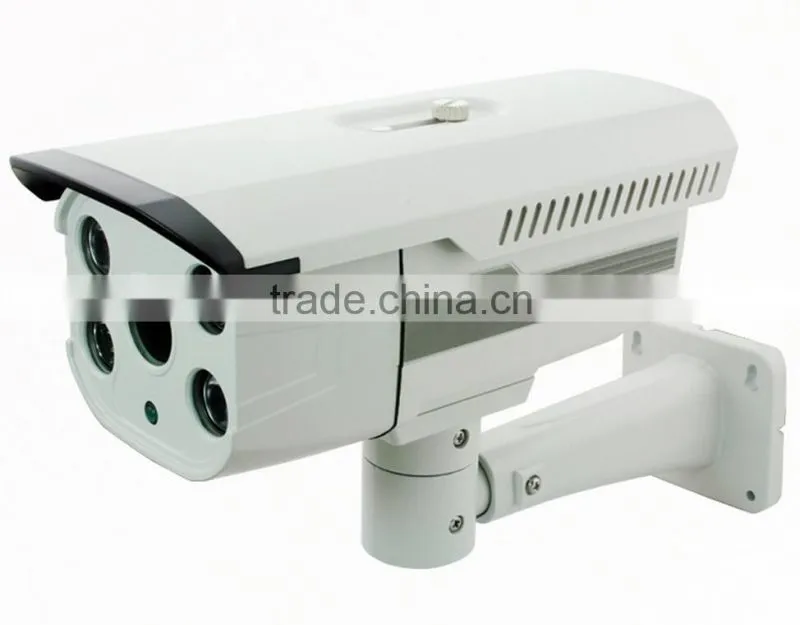

CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera

CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera thumbnail-1
CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera thumbnail-2
CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera thumbnail-3
CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera photo-1
CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera photo-2
CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Zbravo
Model Number:
Z-CD6071Z
Contact Supplier Request Quote Chat Now
Shenzhen Zbravo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Zbravo
Model Number Z-CD6071Z
Type Analog Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Other, Dot Matrix Led CCTV Camera

Specifications

Dot Matrix Led CCTV IR Camera With IR Cut
4pcs Dot IR LED
IR range 100m
CMOS 850TVL with ICR
Megapixel CS 8mm mount lens

CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera





CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera





  • Model : Z-CD6071Z
  • CCD + DSP : CMOS 3089
  • Horizontal Resolution : 850TVL,with IR-CUT
  • Pickup Device :  1/3"Super CMOS
  • 4 pcs* Dot IR-LED
  • IR range :100m
  • Megapixel CS 8 mm mount lens
  • Color:White

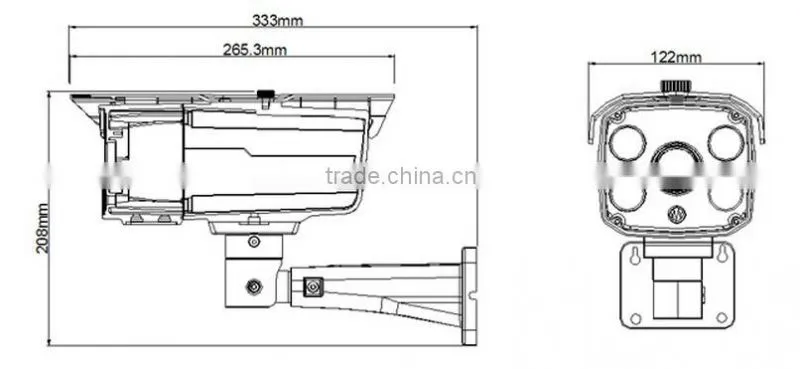

  • Dimension : 280*119*102mm
  • Weight: 1.8KG





Model Z-CD6071T Z-CD6071Z Z-CD6071N Z-CD6071U Z-CD6071X
CCD + DSP PC1089 PC3089 PC1099 HD1080 138+FH8520
Image Sensor 1/4"CMOS 1/3"Super CMOS
Horizontal Resolution 550TVL 850TVL 900TVL 1100TVL 1200TVL
TV System PAL/NTSC
Image Resolution
(PAL / NTSC)		 728*488 756*504 976*496 1080*820 1296*1041
Lens 2.8-12mm varifocal lens
Scanning System 2:1Interlace
Minimum illuminator 0.01Lux/F1.2
S/N Ratio >=48dB(AGG OFF)
AES 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
DNR No 3D
OSD No Yes
White Balance Auto ATW/Manual/Auto
AGC Auto Auto/Manual/Off
synchronization System Internal Synchronization
Video Output 1.0Vp-p,75Ω
Voltage DC12V (9V ~ 15V)
Operating Temperature —20℃~60℃ / 10% ~ 95%RH







CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera



                      CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera



                  CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera

                               CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera



                   CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera





CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera







CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera







CMOS 850TVL Megapixel CS Lens Dot Matrix Led With IR Cut CCTV IR Camera
