Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera

50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera

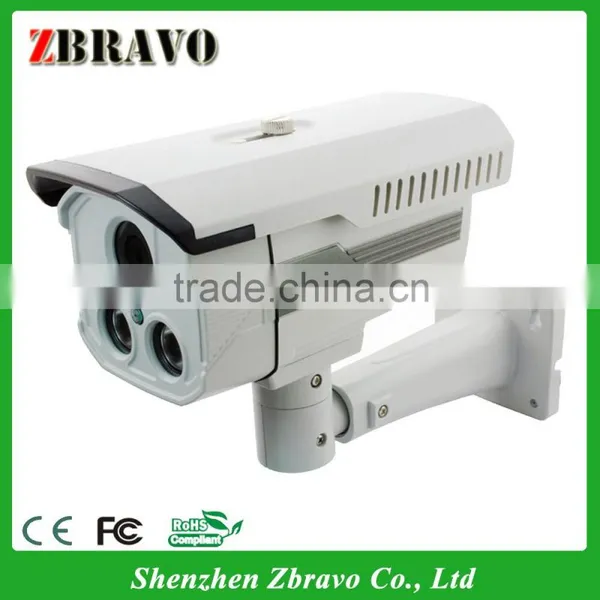

50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera photo-1

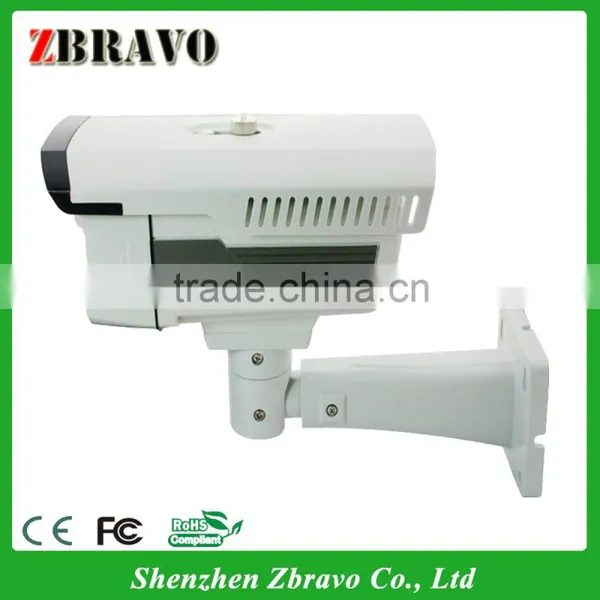

50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera photo-2

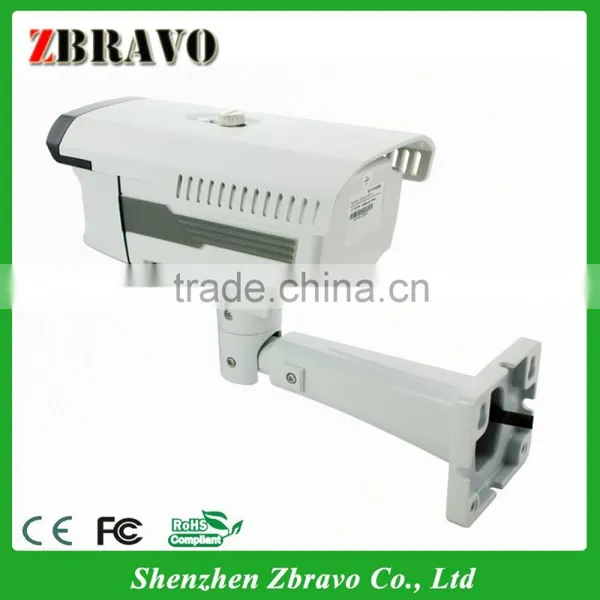

50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Zbravo
Model Number:
Z-CD6011U
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Zbravo
Model Number Z-CD6011U
Type Analog Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Other, 960H CCTV Camera

Specifications

960H CMOS 1100TVL HDIS CCTV Camera With OSD
2pcs Array IR
IR range 50m
1100TVL 960H with IR cut
2.8-12mm varifocal lens

50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera





50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera





  • Model : Z-CD6011U
  • CCD + DSP : HD1080
  • Horizontal Resolution : 1100TVL,960H,with OSD
  • Pickup Device :  1/3"Super CMOS
  • 2 pcs 42U Array IR
  • IR range :50m
  • 2.8-12mm varifocal lens
  • Color:White
  • Dimension :  273*119*99mm
  • Weight: 1.5KG





Model Z-CD6011T Z-CD6011Z Z-CD6011N Z-CD6011U Z-CD6011X
CCD + DSP PC1089 PC3089 PC1099 HD1080 138+FH8520
Image Sensor 1/4"CMOS 1/3"Super CMOS
Horizontal Resolution 550TVL 850TVL 900TVL 1100TVL 1200TVL
TV System PAL/NTSC
Image Resolution
(PAL / NTSC)
728*488 756*504 976*496 1080*820 1296*1041
Lens 2.8-12mm varifocal lens
Scanning System 2:1Interlace
Minimum illuminator 0.01Lux/F1.2
S/N Ratio >=48dB(AGG OFF)
AES 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
DNR No 3D
OSD No Yes
White Balance Auto ATW/Manual/Auto
AGC Auto Auto/Manual/Off
synchronization System Internal Synchronization
Video Output 1.0Vp-p,75Ω
Voltage DC12V (9V ~ 15V)
Operating Temperature —20~60 / 10% ~ 95%RH







50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera



                      50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera



                  50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera

                               50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera



          50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera





50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera







50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera







50M Night Vision CMOS 1100TVL With OSD HDIS 960H Surveillance CCTV Camera
