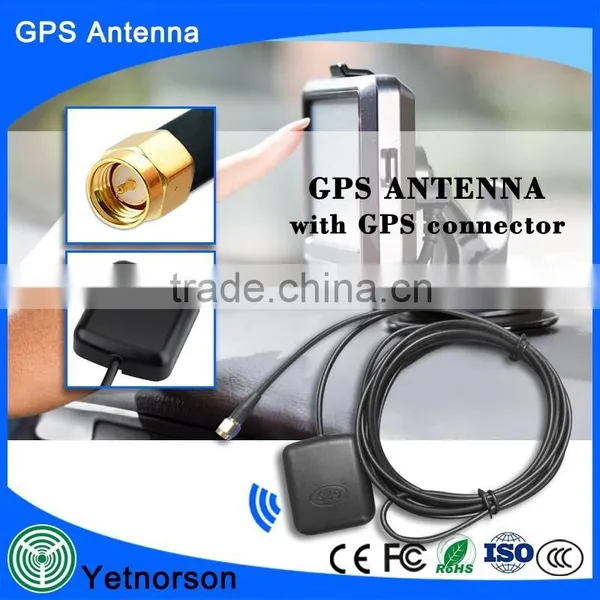

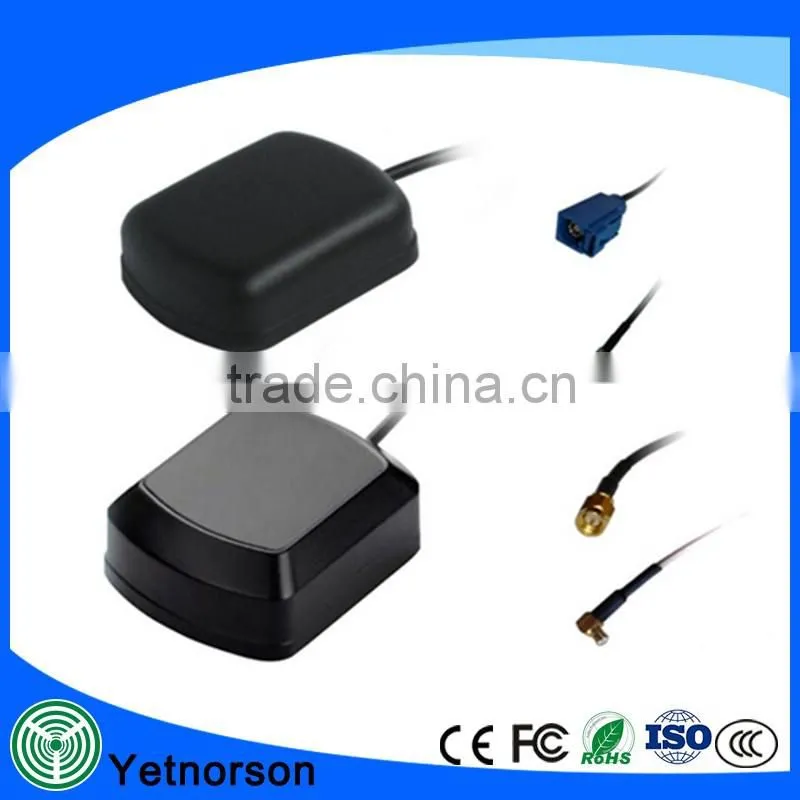

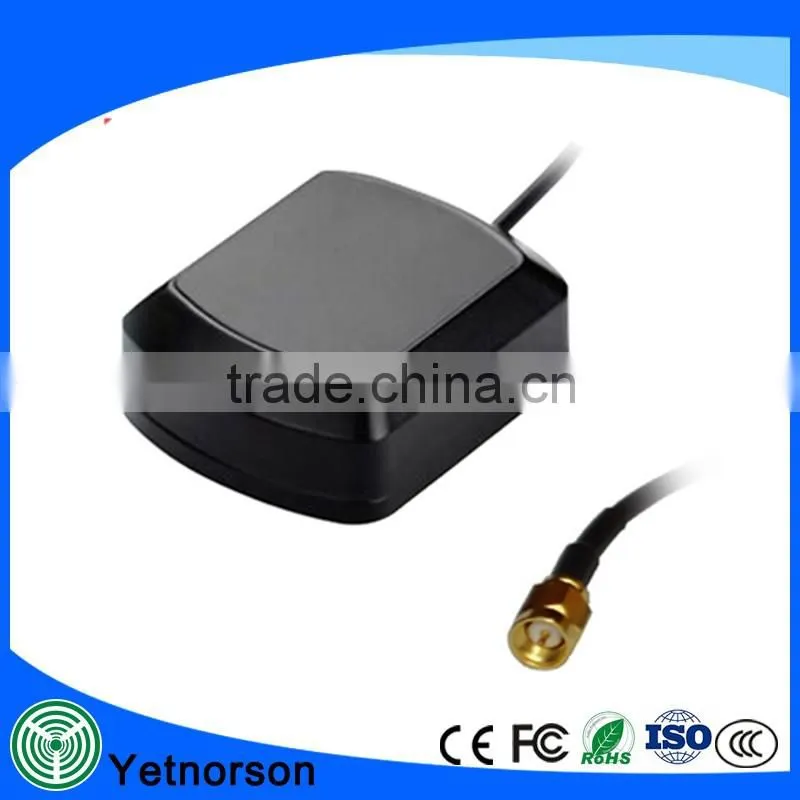

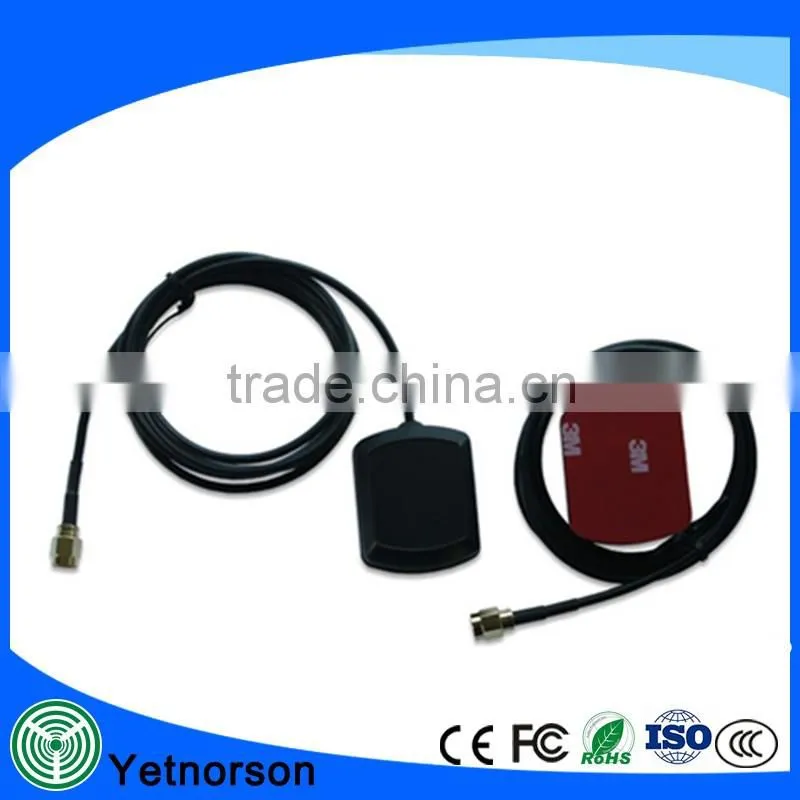

Magnetic Car GPS Antenna 28dbi Active Antenna With SMA FAKRA Connector
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Quality Tablet Android External Antenna Gps
-
(GPS Antenna) Mini Car tv 1575.42MHz GPS Antenna/LNA Gain 28 DBi External Gps Active Antenna
-
1575.42MHz Magnetic Base Car Active GPS Antenna With MCX Connector
-
1575.42mhz External GPS Antenna Active/Passive Antenna With SMA/MMCX/Fakra /BNC Connector
-
Active 28dbi Gps Antenna 3m RG174 Cable SMA Male 1575MHz
-
SMA Male /Fakra Connector Straight Connector With RG174 Cable GPS Antenna
Product Details
| Place of Origin | Guangdong, China | Brand Name | YNX | |
| Model Number | YNX-P006 | Car Make | all of the Car | |
| Frequence Range | 1575.42mhz/1602 | Gain(dB) | 28dB±3dB | |
| Cable Length | 3000mm |
One For Iphone 4 gps antenna with one PE bag packaging
Product Description
Magnetic Car GPS antenna 28dbi Active Antenna with SMA FAKRA Connector
Application :
1.For GPS system,active antenna,made of Ceramic Microstrip Substrate
2. Compact Size, Light Weight, Low Profile, Easy to Assemble and Hide
3. The high gain LNA is made of low noise microwave components to ensure the sensibility of the system.
1.specification of Magnetic Car GPS antenna 28dbi Active Antenna with SMA FAKRA Connector GPS Antenna
| Frequency (MHz) | 1575.42MHZ±1.023MHZ/1602mhz/1561MHZ |
| Bandwidth (MHz) | 6MHZ |
| Gain (dBi) | 28dB±3dB |
| Input Impendence (Ω) | 50 |
| V.S.W.R | ≤1.7 |
| Consumption Electric | <10mA |
| Polarization Intensity | R.H.C.P |
| Supply Voltage | DC3.3~5.0V |
| The Sound Coefficient | ≤1.5dB |
| Axial Ratio | 3Db |
| Max Input Power (w) | 50 |
| Operating Temperature | -40°C~+85°C |
| Storing Temperature | -40°C~+90°C |
| Cable length (mm) | 3000 |
| Connector Type | USB plug |
| Radome Color | Black |
| Weight (g) | 69 |
| Fixed Mode | Magnet |
es of the Magnetic Car GPS antenna 28dbi Active Antenna with SMA FAKRA Connector GPS Antenna
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
