Help CenterGPS Antenna Receiver Repeater
US$ 1.5 - 3
MOQ: 300 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YNX
Model Number:
YNX-P006
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Car GPS Navigation Antenna SMA Male Connector With 3m CableUS$ 1.5 - 3MOQ: 300 Pieces -
Waterproof GLONASS/GPS Active Antenna 30dBic Gain Magnetic MountUS$ 0.9 - 2.5MOQ: 1 Piece
-
Manufactory Supply 3-5v 28dBi Outdoor Active Gps External Antenna for Car NavigationUS$ 1.8 - 2.1MOQ: 1 Chain
-
Active 28dBi High Gain Gps External Outdoor Antenna With MMCX SMA FAKRA ConnectorUS$ 1.8 - 2.1MOQ: 1 Chain
-
Good Performance Gps External Outdoor Antenna With Frakra SMA ConnectorUS$ 1.8 - 2.1MOQ: 1 Chain
Place of Origin
Guangdong, China
Brand Name
YNX
Model Number
YNX-P006
Car Make
all of the Car
Frequence Range
1575.42mhz
Gain(dB)
28dB±3dB
Cable Length
3000mm

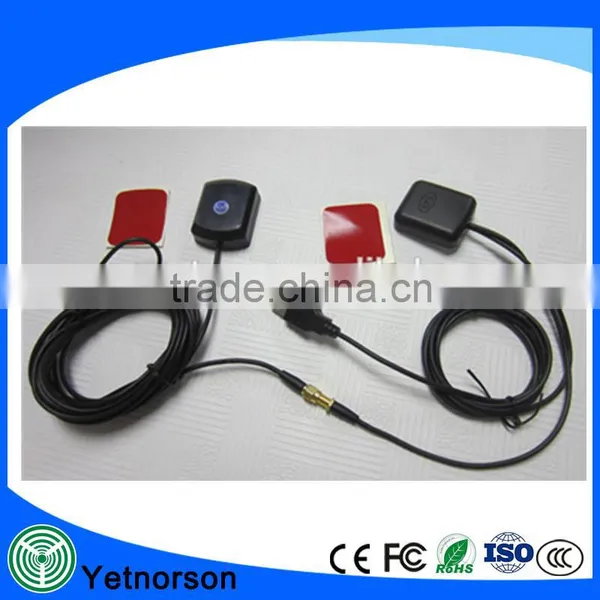

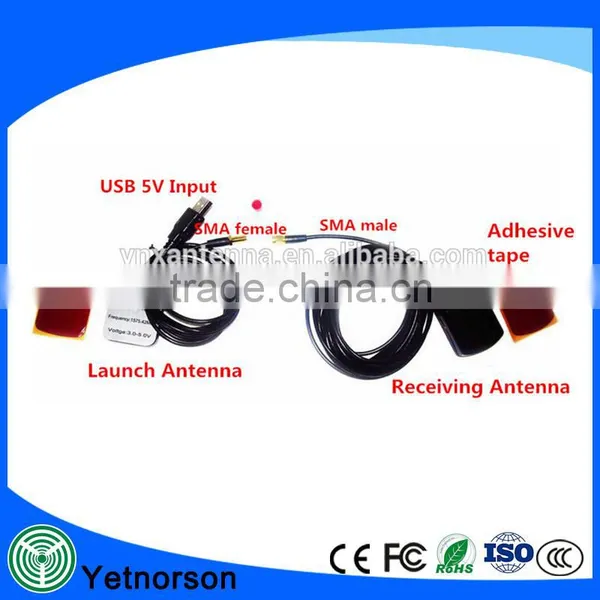

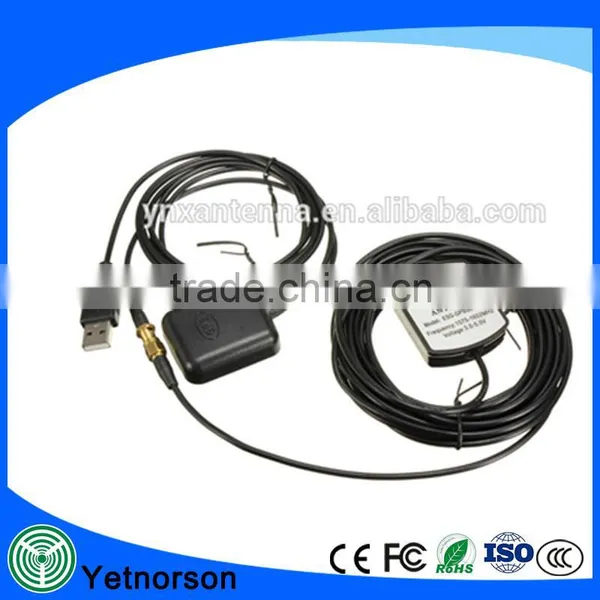

GPS Antenna Receiver Repeater
Product Description

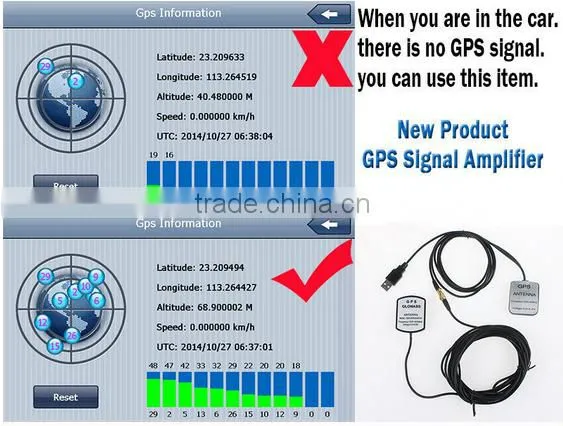

This kits is composed of outdoor(receiver) unit and indoor(transmitter) unit, is mainly used to receive the outside GPS satellite signal into the car and make the equipment work for ample of GPS signal. Its made up of reception antenna out of the car and the transmitting antenna in the car.
Specification:
* Frequency: 1575.42MHz
* Gain: 25-28 dB
* Noise: <=2dB
* Attenuation: 7dB±20MHz
* Transmitting Frequency: 1575.42MHz
* Transmitting Gain: 11-14dB
* Emission Inhibition: 10 dB+/-20MHz
* Antenna/Repeater Power Supply: DC 3-5V
* Working Temperature: (-45C)-(+85C)
* Storage Temperature: (-50)-(+90C)
* Humidity: 100%
* Outdoor Antenna: 47*39*14(mm), length 5meters
* Indoor Antenna: 50*39*15(mm), length 1.5meters
* Effect area: about 2 square meter

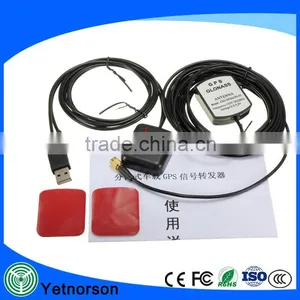

Package
* 1xOutdoor Antenna
* 1xIndoor Antenna
* 1xAC adapter, Default US plug, if you need other version, please give me a message.
* 1xCigarette lighter adapter
Installation
* Place the outdoor unit on the top of car
* Connect outdoor unit and indoor unit
* Plug indoor antenna USB into USB power Adapter. After that, the GPS receiver will operate normally when its power is open.
Note: Do not to put the R and T antenna close together and 3 meter is necessary between them without hinder
***Car power adapter shape may be different in different Lots***
Specification:
* Frequency: 1575.42MHz
* Gain: 25-28 dB
* Noise: <=2dB
* Attenuation: 7dB±20MHz
* Transmitting Frequency: 1575.42MHz
* Transmitting Gain: 11-14dB
* Emission Inhibition: 10 dB+/-20MHz
* Antenna/Repeater Power Supply: DC 3-5V
* Working Temperature: (-45C)-(+85C)
* Storage Temperature: (-50)-(+90C)
* Humidity: 100%
* Outdoor Antenna: 47*39*14(mm), length 5meters
* Indoor Antenna: 50*39*15(mm), length 1.5meters
* Effect area: about 2 square meter
Package
* 1xOutdoor Antenna
* 1xIndoor Antenna
* 1xAC adapter, Default US plug, if you need other version, please give me a message.
* 1xCigarette lighter adapter
Installation
* Place the outdoor unit on the top of car
* Connect outdoor unit and indoor unit
* Plug indoor antenna USB into USB power Adapter. After that, the GPS receiver will operate normally when its power is open.
Note: Do not to put the R and T antenna close together and 3 meter is necessary between them without hinder
***Car power adapter shape may be different in different Lots***
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
