Help CenterASTM A193 B7 Stud Bolt
Related Products
Specifications
Place of Origin:Jiangsu,China(mainland)Size:ALl
Brand:ZG
Standard:ASTM A 193-B7
Detail Descrption of the Goods:

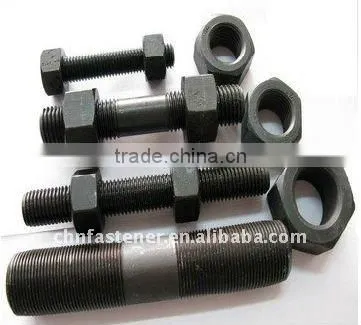

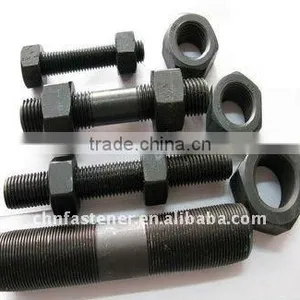

ASTM A 193-B7 Stud Bolt
1. Mateail:
Mid Carbon Steel, Carbon Steel,Stainless Steel.
2..Finish:
Plain, Black,Hot-dip Galvanizing, Zinc Clear, Zinc Yellow, Zinc Black, Copper Yellow, Dacromet, etc.
3.. Size:
<
| Threaded Rods / Stud Bolts : ASTM A193 Grade B7, Grade B7M, Grade B16 | ||||||||
| Threaded Rods , Stud Bolts : ASTM A320 Grade L7,Grade L7M | ||||||||
| DESCRIPTION | Grade | Temperature | Strength and Ductility | |||||
| Range | ||||||||
| Tensile | Yield | Reduction | Elongation | Alloy | AISI | |||
| Min. | of Area | EL | Type | |||||
| psi | R/A | |||||||
| ASTM A-193 | B7 | High Temp. | 125,000 | 100,000 | 50 | 16 | Cr-Mo | -4140 |
| from 0 – | ||||||||
| 480ºC | ||||||||
| ASTM A-193 | B7M | High Temp. | 100,000 | 80,000 | 50 | 18 | Cr-Mo | -4140 |
| from 0 – | ||||||||
| 450ºC | ||||||||
| ASTM A-193 | B16 | High Temp. | 125,000 | 105,000 | 50 | 18 | Cr-Mo V | (4140M) |
| from 0 – | ||||||||
| 550ºC | ||||||||
| ASTM A-320 | L7 | Low Temp. | 125,000 | 105,000 | 50 | 16 | Cr-Mo | -4140 |
| -101ºC | ||||||||
| ASTM A-320 | L7M | Low Temp. | 100,000 | 80,000 | 50 | 18 | Cr-Mo | -4140 |
| -73ºC | ||||||||
| ASTM A-193 | B8 | Low Temp. | 75,000 | 30,000 | 50 | 30 | 18% CR – | -304 |
| -200 – 650ºC | 8% Ni | |||||||
| ASTM A-193 | B8M | Low Temp. | 75,000 | 30,000 | 50 | 30 | 16%Cr – | -316 |
| -200 – 750ºC | 10% Ni | |||||||
| ASTM A-320 | B8 | Low Temp. | 75,000 | 30,000 | 50 | 30 | 18% Cr – | -304 |
| -200 – 650ºC | 8% Ni | |||||||
| ASTM A-320 | B8M | Low Temp. | 75,000 | 30,000 | 50 | 30 | 16% Cr – | -316 |
| -200 – 750ºC |
10% Ni
|
|||||||
4.Detail Quantity Inspection:
1. 100% inspection during the Production
2. QC department
5.Quality-Certificates:
ISO9001,ISO14001,ROHS,SGS
6.Detail Packing Data:
Small Box ,and then Carton, then pallent 30kg blk Pacled in Carton, Then pallent Upn customer's demands
pcs*box, box*carton, carton and the pallent
Carton size: 250*280*170/ 370*320
Carton Weight:0.2567kg
7.Detail Delivey Time:
15-20days
8.Detail Address of Our Company:
Our company in kunshan
From Shanghai HongQiao Air port to kunshan by Trail spend 18 mintues;
From Shanghai Pudong Air port to Kunshan by car spend 2 hours;
From Suzhou to Kunshan by trail spend 11 mintues;
