Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > High Quality Led Light Strip 3528SMD 240led

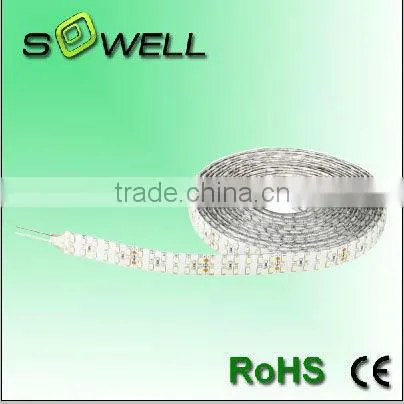

High Quality Led Light Strip 3528SMD 240led
Negotiable
MOQ: 500 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
SO240-MS3528R-W24-IP
Type:
Flex LED Strips
Input Voltage(V):
12
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality SO240-MS3528R-W24 Led Light StripNegotiableMOQ: 500 Meters -
High Quality 2835SMD 60leds Light StripNegotiableMOQ: 500 Meters
-
High Quality SO-2835-30 Led Light StripNegotiableMOQ: 500 Meters
-
High Quality SO-5630-60 Led Light StripNegotiableMOQ: 500 Meters
-
DC12V 4.8W 3500-7000K High Quality LED Light StripsNegotiableMOQ: 500 Meters
LED Light Source
SO240-MS3528R-W24-IP
Type
Flex LED Strips
Input Voltage(V)
12
Color Temperature(CCT)
WWW/ R/Y/B/G
Working Temperature(℃)
-25, 50
Working Lifetime(Hour)
30000
Certification
BV, CCC, CE, CQC, C-tick, EMC, FCC, GS, LVD, REACH, SAA, SASO, VDE
Emitting Color
White
Place of Origin
Zhejiang, China
Brand Name
sowell
Model Number
SO240-MS3528R-W24-IP
Specifications
1.high quality led light strip2.12V DC,5M/Roll
3.Flexible to install,Single color
4.RGB is available
5.IP65,IP20
high quality led light strip
| Features: | |||
| 12V or 24VDC option | |||
| 3528SMD employed, imported chip, high quality and reliability | |||
| High brightness, even color light distribution and low lumen degradation | |||
| CCT: 2400K-20000k Option | |||
| 12LEDs per mininum cut | |||
| Easy to intall with 3M adhensive tape | |||
| IP20, IP65, IP67, and IP68 rated options | |||
| Flexible, can be bent into any shape | |||
| Energy saving, eco-friendly and long lifetime | |||
| CE certisfied and RoHS compliant | |||
| Applications: | |||
| Backlighting for light box | |||
| Stairway accent lighting | |||
| Concealed lighting and cove lighting | |||
| Edge lighting and event lighting | |||
| Counter lighting and conference lighting | |||
| Archtectural decorative lighting | |||
| Archway, canopy and bridge edge lighting | |||
| Amusement park,theater mood lighting | |||
| Auditorium walkway lighting | |||
| Exhibition lighting and performance lighting | |||
| Part Number | Emitting Color |
LED/m | Brightness | Size (WxH mm) |
Voltage (DC) | Current (A/m) | Typ. Power (W/m) |
Beam Angle | IP Rated |
| SO240-MS3528R-W24-IP | Red | 240 | 160-280mcd |
17*5.0 (IP67/IP68) |
24V | 0.8 | 19.2 | 120° |
IP67 IP68 |
| SO240-MS3528Y-W24-IP | Yellow | 240 | 160-310mcd | 24V | 0.8 | 19.2 | 120° | ||
| SO240-MS3528B-W24-IP | Blue | 240 | 250-300mcd | 24V | 0.8 | 19.2 | 120° | ||
| SO240-MS3528G-W24-IP | Green | 240 | 1000-1600mcd | 24V | 0.8 | 19.2 | 120° | ||
| SO240-MS3528W-W24-IP | White | 240 | 6-7LM | 24V | 0.8 | 19.2 | 120° | ||
| SO240-MS3528WW-W24-IP | Warm White | 240 | 24V | 0.8 | 19.2 | 120° |
| Note: Orange, amber, pink, purple colors available. White,Yellow, black PCB option | ||||||||||
| Operating Temperature: -20~50°C. Must be used with heat sink for better heat dissipation. Powered both ends necessary when voltage drop occurs | ||||||||||
| Terms and Conditions: | ||||||||||
| 1. Price terms: EX-work Shenzhen | ||||||||||
| 2. MOQ: 250meters per color, if less than MOQ, extra 0.5USD/meter will be charged accordingly | ||||||||||
| 3. Delivery time: around 14 days after deposit payment confirmation | ||||||||||
| 4. Packing terms: 5meter per reel, 1 reel into 1 anti-static bag, 40~50reels into large size carton (41*41*26cm) | ||||||||||
| 5. Payment terms: T/T 100% before shipment, start production upon payment confirmed | ||||||||||
| 6. Shipment terms: by DHL or UPS or TNT alike at customer's account, if at our accounts, necessary shipping cost will be charged into PI. | ||||||||||
| 7. Warranty: 2-year limited warranty | ||||||||||
| 8. Payment Note: All banking charges, if any, are to be borne by the customers/buyers |
