Powerful Outdoor Tracker GPS- GSM Antenna,car Tracker Gps-gsm Antenna With 28db

Bubble envelope,Carton packaging or as request of car tracker gps-gsm antenna with 28db

Specifications

  Powerful Outdoor Tracker GPS- GSM Antenna,car tracker gps-gsm antenna with 28db

                                 Welcome to Shenzhen Yetnorson technology Co., LTD.

                            (The expert of producting antenna)

Thank you for viewing this amazing Powerful Outdoor Tracker GPS- GSM Antenna,car tracker gps-gsm antenna with 28db

The advantage of Powerful Outdoor Tracker GPS- GSM Antenna,car tracker gps-gsm antenna with 28db

1,factory direct sales
2,rich experience , proven technique
3,low price  and  high  gain
4,wider frequency

1 Specifications of Powerful Outdoor Tracker GPS- GSM Antenna,car tracker gps-gsm antenna with 28db

Technical Specifiction of Powerful Outdoor Tracker GPS- GSM Antenna,car tracker gps-gsm antenna with 28db

GPS/GSM combination antenna
1.GSM/GPS multi-band antenna.
2.Long distance transmission,signal good.
3.gps gsm combined ant

4.factory direct sales, low price

Product Description of Powerful Outdoor Tracker GPS- GSM Antenna,car tracker gps-gsm antenna with 28db

GSM+GPS multi-band antenna, combination antenna,
Model: XQJ-1575/900-1800M-A

Size: 80x14mm

GPS antenna part

• Center Frequency:1575.42MHz
• Polarization: RHCP (right hand circular polarization)
• LNA Gain: 28dB typical
• Noise figure: 1.5 maximum
• Bandwidth: 10MHz
• VSWR: 2.0 maximum
• Impedance:50 Ohms
• Power consumption: 2.7 to 5.5V DC/28mA
• Cable and connector: 3m RG-174 with RP SMA male connector
• Operating temperature: -35 to +85 degrees Celsius
• Storage temperature: -40 to +95 degrees Celsius
• Dimensions-mm: 80*14

 GSM antenna part

• Frequency: 890-960MHz/ 1710-1880MHz
• Polarization: vertical
• Gain: 3dBi
• VSWR: 2.0 maximum
• Impedance: 50 Ohms
• Power handling capacity: 10W maximum
• Cable and connector: 3M RG174 with SMA male connector
• Operating temperature: -35 to +85 degrees Celsius
• Storage temperature: -40 to +95 degrees Celsius
• Dimension-mm: 80*14

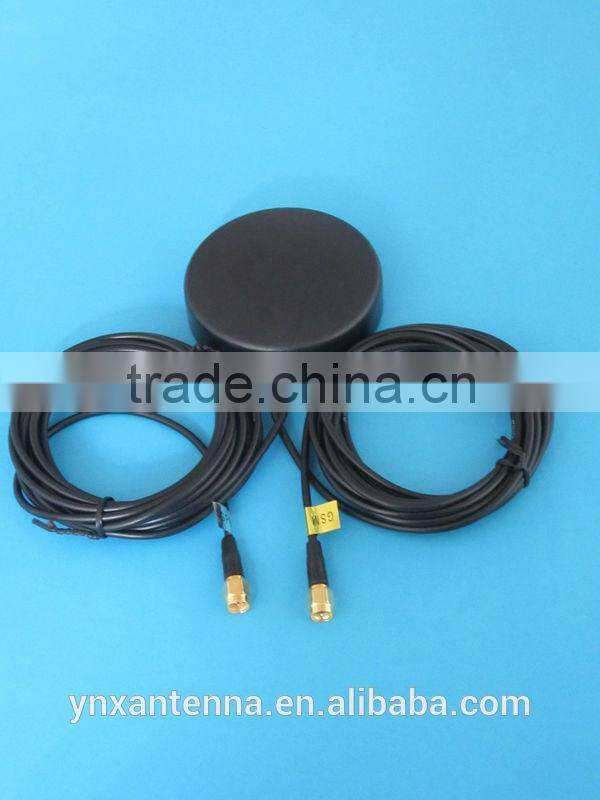

2 The appearance of Powerful Outdoor Tracker GPS- GSM Antenna,car tracker gps-gsm antenna with 28db

3,The Payment of Powerful Outdoor Tracker GPS- GSM Antenna,car tracker gps-gsm antenna with 28db

We accept Paypal, T/T, Western Union, L/C and MoneyGram.

4,The Refund and Replacement of Powerful Outdoor Tracker GPS- GSM Antenna,car tracker gps-gsm antenna with 28db

1. We can guarantee the product quality within one years .

 2. If parts cannot work, we will return payment or replacement to you.

 3. Any items must be returned in their original condition to qualify for a refund or replacement

 4. The buyer is responsible for all the shipping cost incurred

5, The Packaging and Shipping of Powerful Outdoor Tracker GPS- GSM Antenna,car tracker gps-gsm antenna with 28db

1. The parts from us are sure to have quality warranty, and they are double tested before shipping.
2. The items can be sent within 7working day after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging

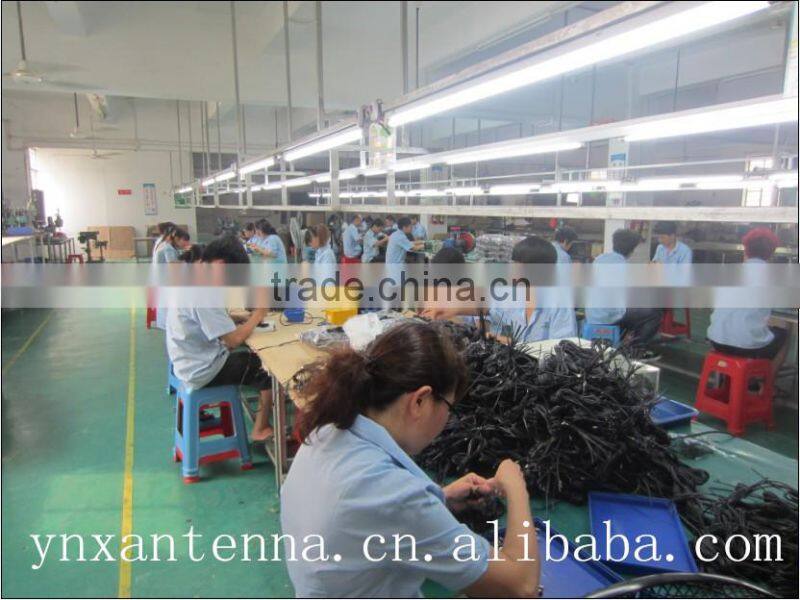

6,Our Company

        Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series

 Quality is essential to both of us, we believe that High quality, Low   price,Mutual benefit will be good basis of our cooperation.

 Please contact us if you have any questions or other requirement.
