Yetnorson Hot Sell Combined Gps and Gsm Antenna With High Gain Good Performance

One product with PE bag packaging of hot sale Combined Gps and Gsm antenna

Specifications

Yetnorson hot sell Combined Gps and Gsm antenna with High gain good performance

Application

 1.For GPS system,passive antenna,made of Ceramic Microstrip Substrate

2. Compact Size, Light Weight, Low Profile, Easy to Assemble and Hide

3. The high gain LNA is made of low noise microwave components to ensure the sensibility of the system.

 1. Combined Gps and Gsm antenna form information

GSM+GPS multi-band antenna, combination antenna,
Model: XQJ-1575/900-1800M-A

Size: 80x14mm

GPS antenna part

• Center Frequency:1575.42MHz
• Polarization: RHCP (right hand circular polarization)
• LNA Gain: 28dB typical
• Noise figure: 1.5 maximum
• Bandwidth: 10MHz
• VSWR: 2.0 maximum
• Impedance:50 Ohms
• Power consumption: 2.7 to 5.5V DC/28mA
• Cable and connector: 3m RG-174 with RP SMA male connector
• Operating temperature: -35 to +85 degrees Celsius
• Storage temperature: -40 to +95 degrees Celsius
• Dimensions-mm: 80*14

 GSM antenna part

• Frequency: 890-960MHz/ 1710-1880MHz
• Polarization: vertical
• Gain: 3dBi
• VSWR: 2.0 maximum
• Impedance: 50 Ohms
• Power handling capacity: 10W maximum
• Cable and connector: 3M RG174 with SMA male connector
• Operating temperature: -35 to +85 degrees Celsius
• Storage temperature: -40 to +95 degrees Celsius
• Dimension-mm: 80*14

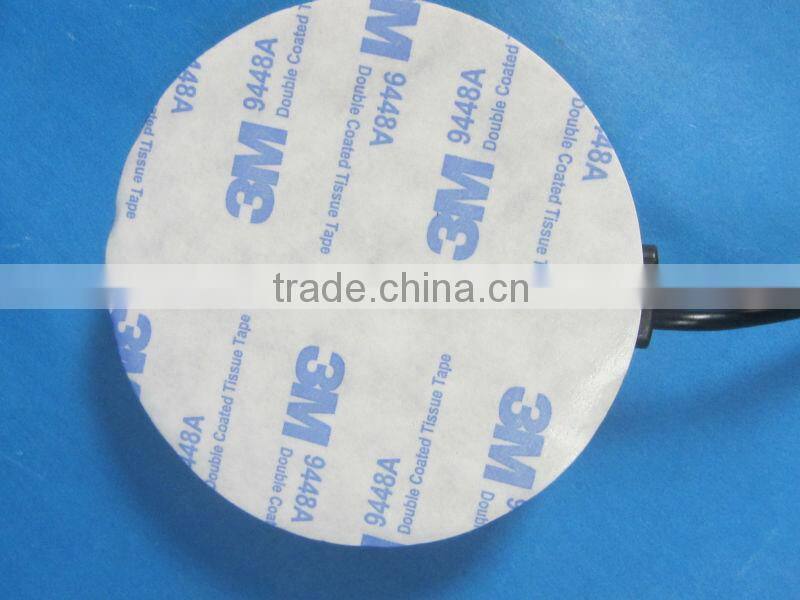

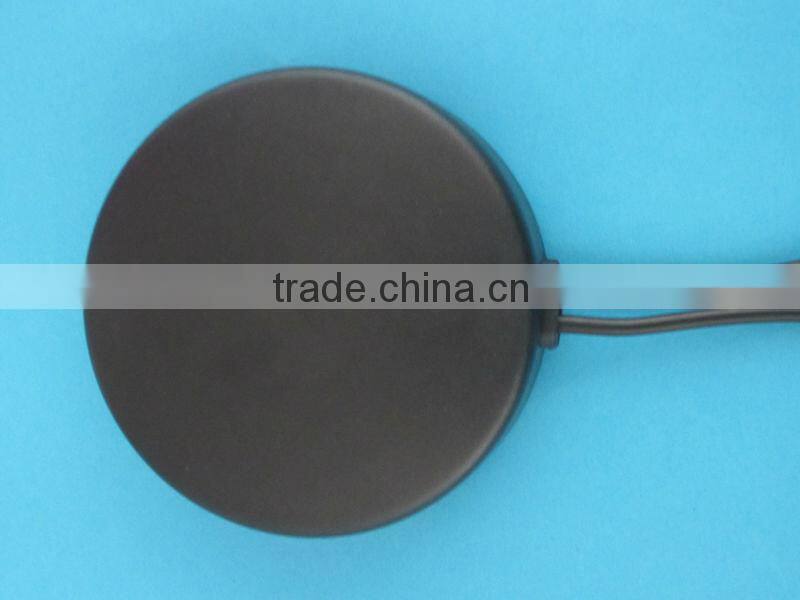

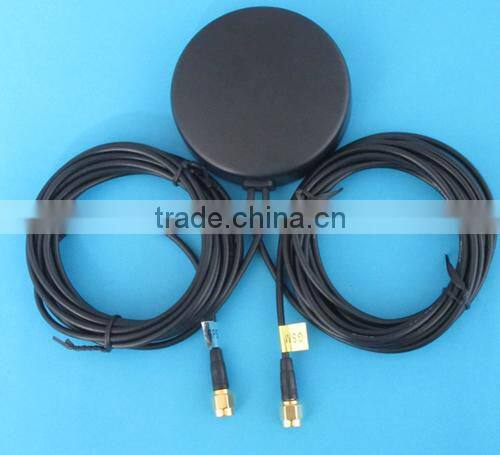

2. Combined Gps and Gsm antenna detial photos

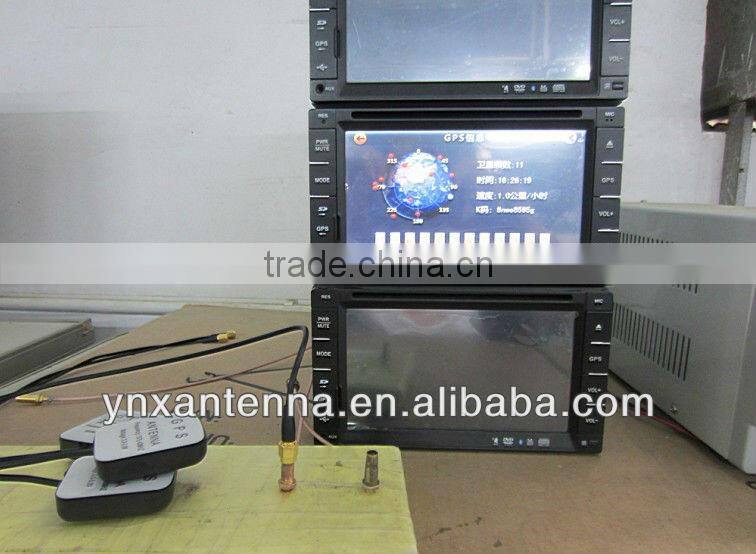

3. High Quality GPS Antenna   testing report

 4.Our Company and Factory detial pictures

5. Payment Way:

We accept Paypal, T/T, Western Union, L/C and MoneyGram.

6. Shipment:

1. The parts from us are sure to have quality warranty, and they are double tested before shipping.
2. The items can be sent within 7working day after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.

7. Refund & Replacement

1. We can guarantee the product quality within 3 months.
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
