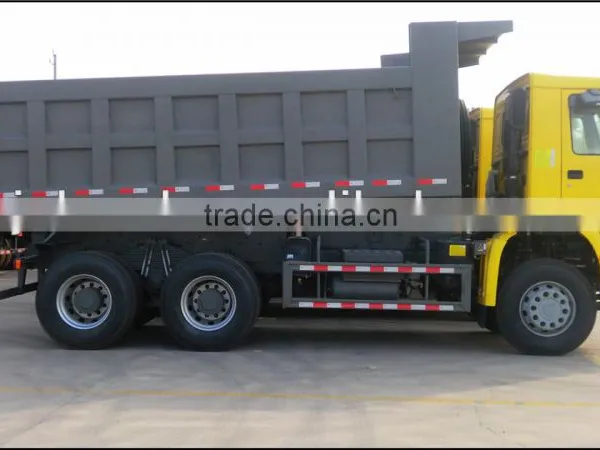

Dump Truck Manufacturer Sinotruk 30-60 TON HOWO dump truck

SINOTRUK HOWO dump truck  6x4 (ZZ3257N3447A1 )

Model: ZZ3257N3447A1

Traction type: 6X4

Driving type: LHD (RHD is optioned)

Cabin: HOWO cab, Air Conditioner. flat head, double doors, tippable, one sleeper

Engine brand: SINOTRUK

Engine model: WD615.69

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line

with water cooling, turbo-charging & intercooling

Displacement: 9.726 liters

Max. output: 336hp@2200rpm

Max torque: 1350NM@1200-1650rpm

Bore/Stroke(mm):126/155

Mean Position Speed: 9.53m/s

Compression ratio:15.5:1

Specific fuel consumption: 195g/Kwh

Gear box:

Model: HOWO HW1571010 Speeds

Clutch:

Model: 430 imported diaphragm type

Steering: ZF Technology

Front axle: HOWO front axle

Rear axle: HC16 (punching-welding axle housing, double

Reduction driving axle, inter-wheel differential and differential lock)

Tyre: 12.00-20 tyre

Spring: 9/12, 10/12

Fuel consumption (L/100km): 36

Fuel tank capacity (L): 200

Max. speed (km/h): 75

Max. gradeability(%): 25

Kerb. mass: 12220kg

Total mass: 25000kg

Wheel base (mm): 3425+1350

Front overhang (mm): 1500

Rear overhang (mm): 1560

Front track (mm): 2022

Rear track (mm): 1830

Turning circle diameter: 24m

Approach angle: 19 degree

Departure angle: 30 degree

Dimension (mm): 7835x2496x3170

Body:

Inner size(mm): 5200x2300x1500

Capacity:18m3

Thickness of body steel(mm): floor 8 side & back 6

Tipping type: middle F type (underbody)
