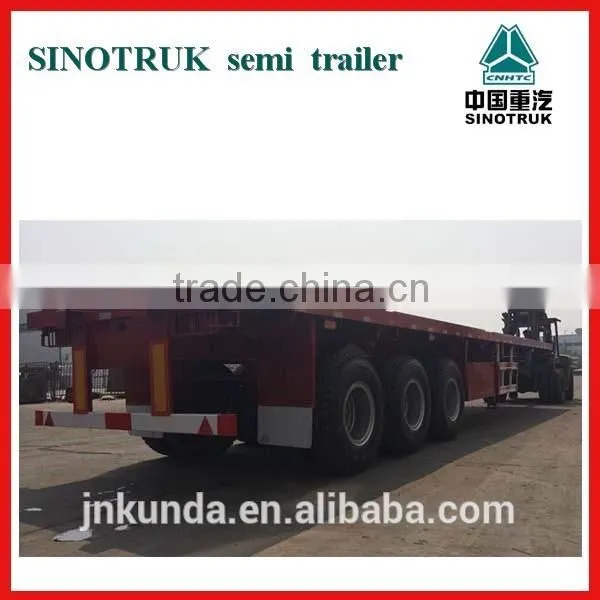

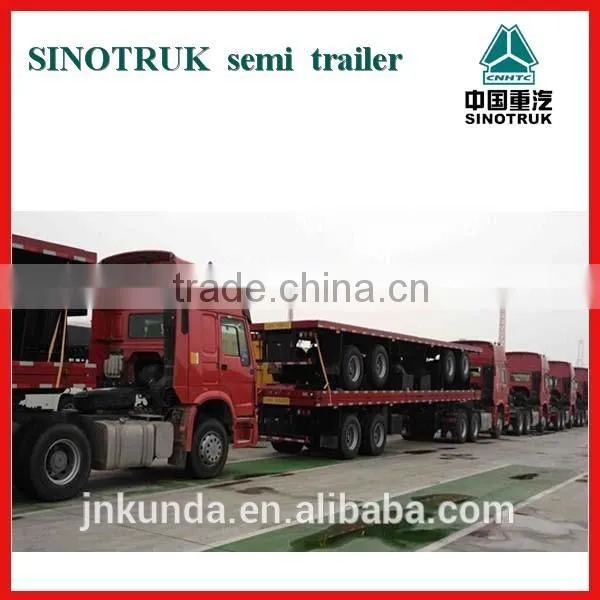

China high quality three axle 40t 40 feet flatbed trailer

Trailer Model

3 Axle flatbed Semi Trailer

Overall Dimension(Lx W x H)(mm)

13000*2500*1490

Function

1x40ft container or 2x20ft container. Or carry other stuff.

Tare Weight(KG)

6350

Loading Weight( KG)

40000

Total Weight(KG)

50000

Axle Brand

Standard 13TON Axle

Axle Number

Three

Wheelbase(mm)

6260+1310+1310

Suspension system

Common Mechanical suspension

Steel Spring

10/10/10 leaf spring suspension

The material of Main beam

The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm,middle plate is 10mm.

Platform plate

3mm Diamond plate

Container Twist Locker

12 pieces

Tire Type and quantity

12.00-20 12units

Traction Pin

50mm or 90mm

Spare Wheel Bracket

2 picecs

Tool Box

1 Standard

Landing Gear

Standard 28ton

Brake system

Dual Line braking system ,none ABS.

Brake air chamber

Two double and two single chamber

Electrical system

1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Side Guard

According to customer’s requirement

Painting

Color by customer’s requirement

Packing

Polish with wax before shipping

Delivery way

Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume.
