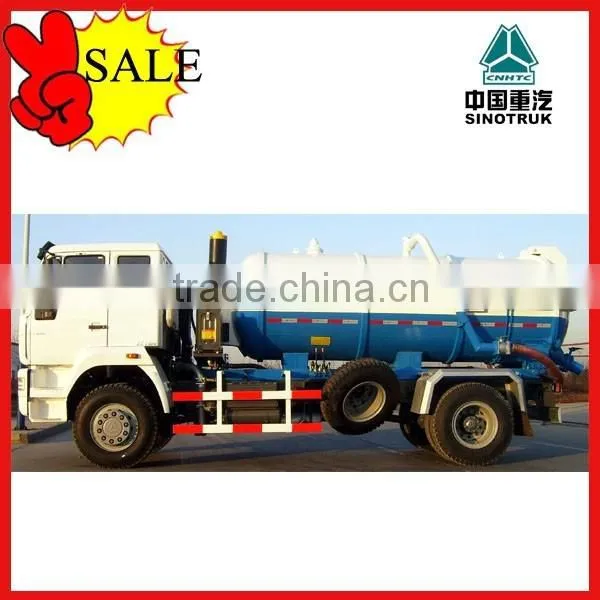

2015 promotion 10m3 chinese sewage vacuum sucking truck
About us
Jinan kunda has more than ten year's rich experiences in transport vehicles. Our products are exported worldwide:
Asia: Vietnam, Myanmar, Philippines, Indonesia, Kazakhstan, Bangladesh, Pakistan, Tajikistan, Kuwait, Saudi Arab, Azerbaijan, etc.
Africa: Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Uganda, Rwanda, Mauritania, Senegal, Ghana, Nigeria, South Africa, Congo, Zambia, Zimbabwe, Angola, etc.
South America: Peru, Chile, Argentina, Brazil, Bolivia, etc..
Advantages
*Original Sinotruk truck, famous brand around the world.
*Superior Performance , low fuel consumption
*Variety of personalized configuration options
*Safe and comfortable.
*Suitable for many climate and road condition.
Products
*Dump truck:
HOWO 6x4 dump truck, HOWO 8x4 dump truck;
HOWO A7 6x4 dump truck, HOWO A7 8x4 dump truck;
SWZ 4x2 dump truck, SWZ 6x4 dump truck, SWZ 8x4 dump truck
*Tractor truck:
HOWO 4x2 tractor truck, HOWO 6x2 tractor truck, HOWO 6x4 tractor truck;
HOWO A7 4x2 tractor truck, HOWO A7 6x2 tractor truck, HOWO A7 6x4 tractor truck;
SWZ 4x2 tractor truck, SWZ 6x2 tractor truck, SWZ 6x4 tractor truck
*Concrete/cement mixer truck, Fuel/oil tanker truck, Water tanker truck, Garbage truck, Sewage suction truck, wood transport truck, terminal tractor truck, light truck, refrigerated truck, and so on.
*Truck trailers: flatbed semi trailer, lowbed semi trailer, fuel tanker trailer, lpg tanker trailer, bulk cement trailer, tipping trailer, cargo trailer, car carrier trailer, wood transport trailer and so on.
Specifications
Name |
Vacuum Suction Truck |
|
|
Main parameters |
Model |
JYJ5162GXW |
Chassis model |
ZZ1164G4215C1 |
|
Driving type |
4x2 |
|
Rated payload(kg) |
8000 |
|
Curb weight(kg) |
7870 |
|
G.V.W.(kg) |
16000 |
|
Volume of tank(m3) |
10.5 |
|
Size parameters |
Overall dimensions(LxWxH,mm) |
7630x2496x3400 |
Tank overall dimensions(LxD,mm) |
3828x1800 |
|
Wheelbase(mm) |
4200 |
|
Front/rear overhang(mm) |
1250/2180 |
|
Approach/Departure angle (°) |
24.5/13 |
|
Min. ground clearance (mm) |
240 |
|
Performance parameters |
Max. speed(km/h) |
95 |
Effective suction(m) |
6 |
|
Max. vacuum(Mpa) |
-0.09 |
|
Suction time(min) |
8 |
|
Discharge time(min) |
6 |
|
Engine |
Model |
YC4E160-30 |
Max. power(kw) |
118 |
|
Vacuum pump |
Model |
60QZB-240 |
Rated power(kw) |
11.8 |
|
Rated speed(r/min) |
500 |
|
Exhaust rate(m3/min) |
4 |
|
Max. vacuum degree(Mpa) |
-0.092 |
|
Lifting of tank |
Lifting type |
Side lifting |
Hydraulic cylinder |
DG-φ100xφ70x770 |
|
Max. lifting angle(°) |
38 |
|
End cover |
Max. opening angle(°) |
55 |
Hydraulic cylinder |
DG-φ63xφ40x850 |
|
