Home > Transportation > Truck > Dump Truck > off Road All Wheel Drive 6*6 Dump Truck

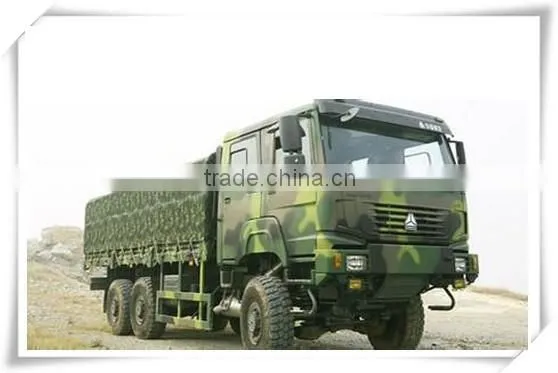

off Road All Wheel Drive 6*6 Dump Truck

Name: off Road All Wheel Drive 6*6 Dump Truck
Brand: SINOTRUK HOWO
SKU: 115334741
Availability: InStock

US$ 35,000 - 55,000 MOQ: 1 Set

Key Specifications

Drive Wheel:

6x6

Capacity (Load):

41 - 50t

Horsepower:

351 - 450hp

Jinan Kunda Automobile Sales Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x6

Capacity (Load) 41 - 50t

Horsepower 351 - 450hp

Condition New

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Gross Vehicle Weight 32000

Place of Origin Shandong, China

Brand Name SINOTRUK HOWO

Model Number SINOTRUK HOWO

Dimensions (L x W x H) (mm) 8245*2496*3850

Model	HOWO 6*6 All wheel drive dump truck HW7/336/K38/6X6W
Gross weight (kg)	25000
Kerb weight ( kg)	12490
Cab	HOWO76 long cab ,with one sleeper and one air conditioner
Engine	Model :WD615.69 Engine power:336 Euro II emission standard Displacement :9.726L
Gearbox	HW19710,SINOTRUCK10 forwarded&2 reverse gear box, with HW70 PTO
Steering	ZF8098, German hydraulic steering with power assistance
Front axle	STR cast steel steering axle with big Nuclearance and light weight
Driving axle	ST16 welded high strengthen heavy duty axle rated loading capacity:16T/axle Ratio: 5.73 Optional: 6.72 for bad road conditions
Transfer case	Model :ZQC2000 High-grade /low-grade ratio : 0.89 /1.536
Brake type	Service braking :dual circuit compressed air brake Parking braking :spring energy air cut brake
Election system	HOWO electric system ,24V, negative grounded
Tire	12.00-20 Bias tires Optional: 12.00R20 Radial tires number of tire :10+1
Wheel base mm	3800+1400
Number of axles	3
Over hang mm	1578/1460
Approach/departure angle	32/41
Number of spring leaf	9/12
Maximum speed km/h	67
Fuel tank L	400
Van dimension (mm)	517023001200 Thickness floor8mm/side 6mm
Overall sizes (mm)	823824963110
