Specifications
Factory sell Widely used for Cisco GPS Antenna1) 29dbi
2)VSWR:1.5
3) 1575.42MHz
4)SGS,FCC,CE,ROHS
Welcome to Shenzhen Yetnorson technology Co., LTD.
Thank you for viewing this amazing New Factory sell Widely used for Cisco GPS Antenna
The advantage of New Factory sell Widely used for Cisco GPS Antenna
1,rich experience , proven technique
2,low price and high gain
3,wider frequency
1, Specifications of New Factory sell Widely used for Cisco GPS Antenna
Electrical Specification of New Factory sell Widely used for Cisco GPS Antenna | |
Center Frequency (MHz) |
1575.42MHZ±2MHZ |
Bandwidth (MHz) |
6MHZ |
Gain (dBi) |
29dB±3dB(LNA) |
Input Impendence (Ω) |
50Ω |
V.S.W.R |
≤1.8 |
Consumption Electric |
<10mA |
Polarization Intensity |
R.H.C.P |
Supply Voltage |
DC3.3~5.0V |
ESD-Compliant |
SJ/T 10694 |
Testing voltage(KV) |
15 |
The Sound Coefficient |
≤1.5dB |
Axial Ratio |
3dB |
Max Input Power (w) |
50 |
Operating Temperature |
-40°C~+85°C |
Storing Temperature |
-20°C~+85°C |
Cable length (mm) |
3000 |
Connector Type |
FAKRA C (Blue) |
Radome Color |
Black |
Dimension-mm |
Φ72 x 21 |
Weight (g) |
140 |
Electrical Specifications of New Factory sell Widely used for Cisco GPS Antenna | |
Frequency Range (MHz) |
900-1800Mhz |
Input Impendence (Ω) |
50 |
V.S.W.R |
≤1.5 |
Gain (dBi) |
3.0 |
Polarization Type |
Vertical |
Radiation Direction |
Omnidirectional |
Max Input Power (w) |
50 |
Operating Temperature |
-40°C~+85°C |
Storing Temperature |
-20°C~+85°C |
Cable length (mm) |
3000 |
Connector Type |
SMA |
Radome Color |
Black |
Dimension-mm |
Φ72 x 21 |

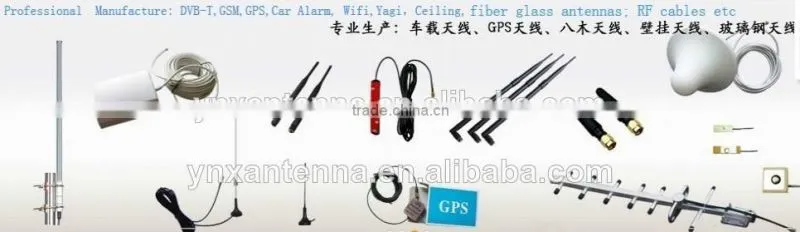

2,The appearance of New Factory sell Widely used for Cisco GPS Antenna
GPS GSM Antenna GPS GSM Anten GPS GSM Antenna
3,The Payment of New Factory sell Widely used for Cisco GPS Antenna
We accept Paypal, T/T, Western Union, L/C and MoneyGram.
4,The Refund and Replacement of New Factory sell Widely used for Cisco GPS Antenna
1. We can guarantee the product quality within one years
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred
5 The Packaging and Shipping of New Factory sell Widely used for Cisco GPS Antenna
1. The parts from us are sure to have quality warranty, and they are double tested before shipping.
2. The items can be sent within 7working day after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging
6,Our Company
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series
7.Certificate
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
