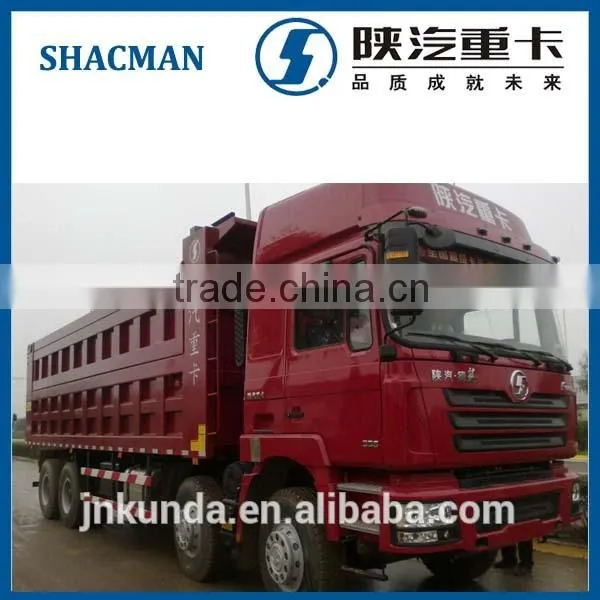

China truck dump truck for sale
Product parameters:
Model |
SX3315DT346 |
|||
Kerb mass (kg) |
14800 |
|||
Max. total mass (kg) |
31000 |
|||
Max. speed (km/h) |
82 |
|||
Min. turning diameter (m) |
24 |
|||
Min. ground clearance (mm) |
314 |
|||
Max. gradeability (%) |
40 |
|||
Appearance dimensions (mm) |
Max. Length |
9900 |
||
Max. Width |
2490 |
|||
Max. Height |
3450 |
|||
Wheel base (mm) |
1800+3000+1350 |
|||
Overhang(front/rear) |
1525/1550 |
|||
Track width (mm) (front/rear) |
1939/1939, 1850/1850 |
|||
Engine |
WP10.375 EUR III |
|||
Output power ps r. p. m |
375/2200 |
|||
Torque N.m r. p. m |
1460 /1200-1600 |
|||
Cylinder bore×Engine stroke (mm) |
126×130 |
|||
Compression ratio |
15.5:1 |
|||
Fuel consumption for 100km (L) |
36 |
|||
Dimensions of lorry body(L×W×H) |
7200×2300×1000 |
|||
Fuel tank capacity (L) |
300 Aluminum alloy |
|||
Clutch |
GF430 Single-plate, air-assisted, mechanically operated, spring type |
|||
Gearbox |
Transmission |
Fuller RTD-11509C |
||
Gear ratio |
12.44 8.31 6.09 4.54 3.36 2.47 1.81 1.35 1.00 13.02(R) |
|||
Front axle |
6.5STR front axle |
|||
Rear axle |
16T MAN casting axles |
|||
Frame |
850mm*300mm*(8+7) |
|||
Suspension |
Front |
Longitudinal semi-elliptic leaf spring type with telescopic absorber |
||
Rear |
Longitudinal parabolic leaf spring balance type |
|||
Steering |
ZF8098 Integral type power-steering |
|||
Cab |
F2000 cab, Middle-long flat head, |
|||
why shacman ?
1 the best golden chain:weichai power ,hande axle and fast transmission .
2 professional and be the top of the china`s large-tonnage heavy truck market.
3 military quality: above 90% military truck of chinese army,and only heavy duty truck manufacturer that has successively participated military review on china`s national day for three times .
what can i offer you ?
not only a whole truck body,but also the original spare parts of chacman,and professional service .
Please feel free to cantact me :
Email:marry{at}
Web:/
Mobile No:0086-18953179836
Tell:0086-531-62312677
Fax:0086-531-62312688
Skype:yu.marry1
