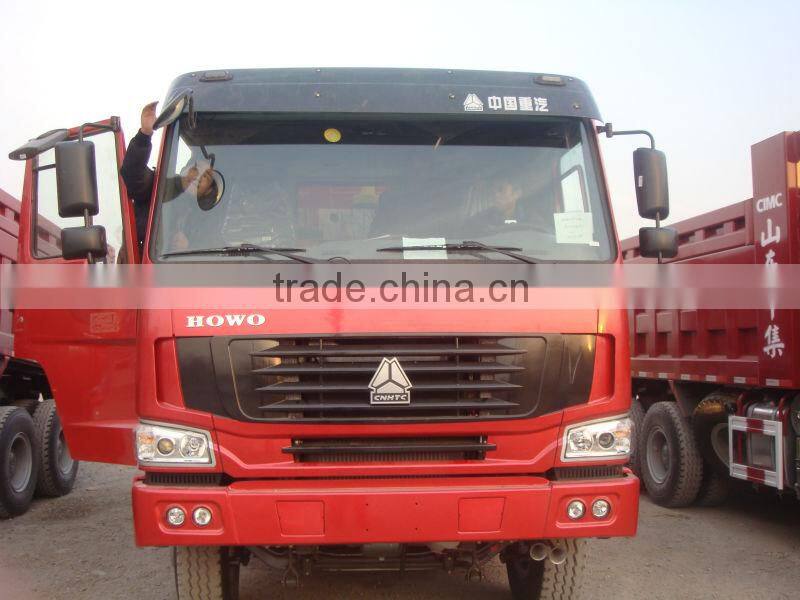

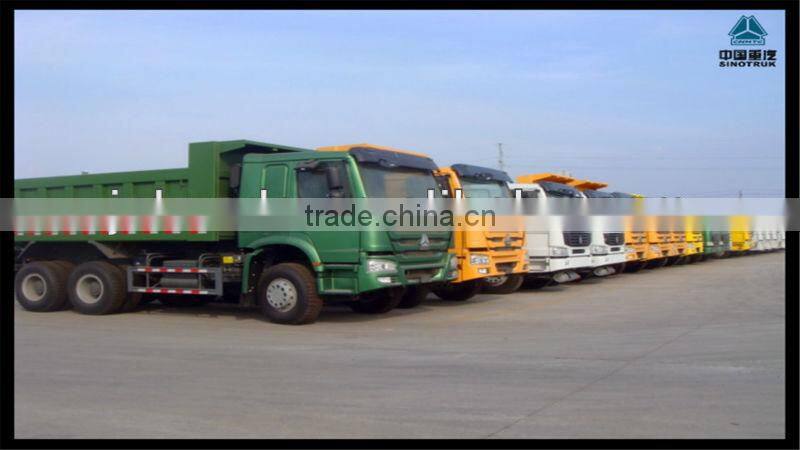

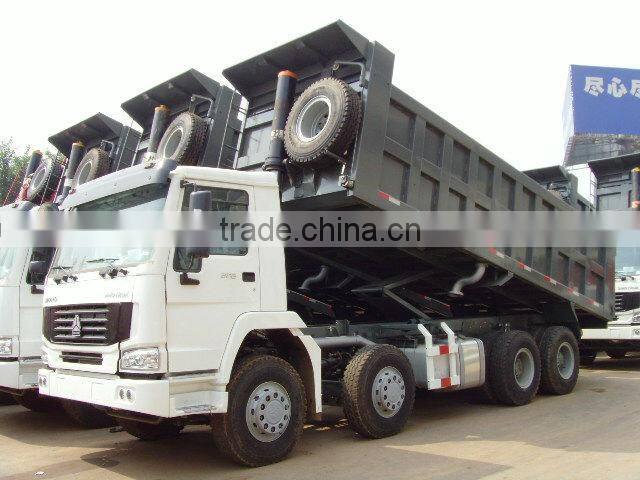

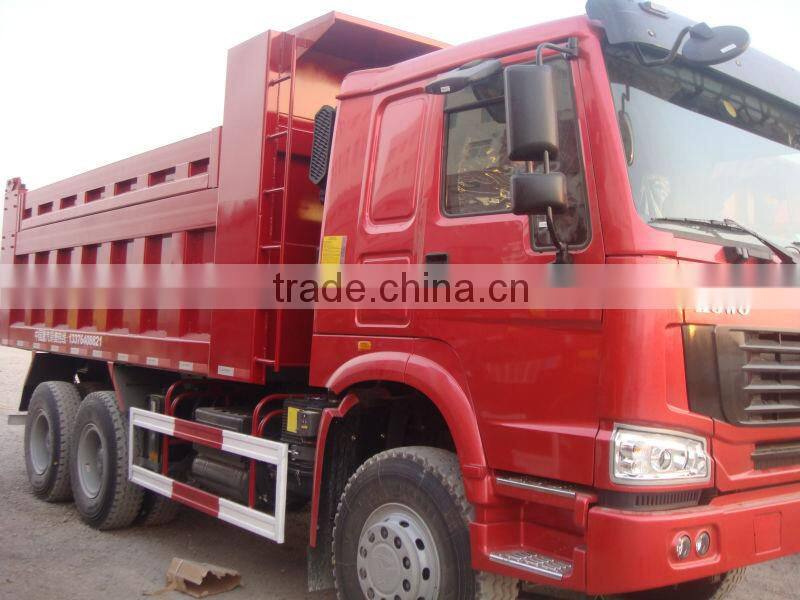

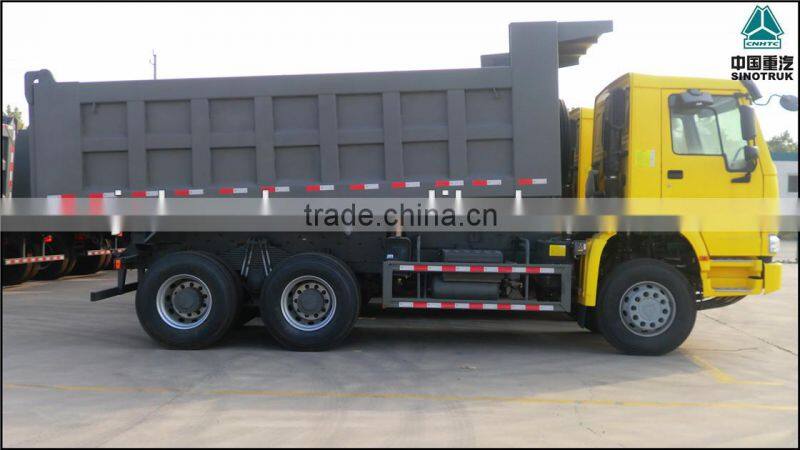

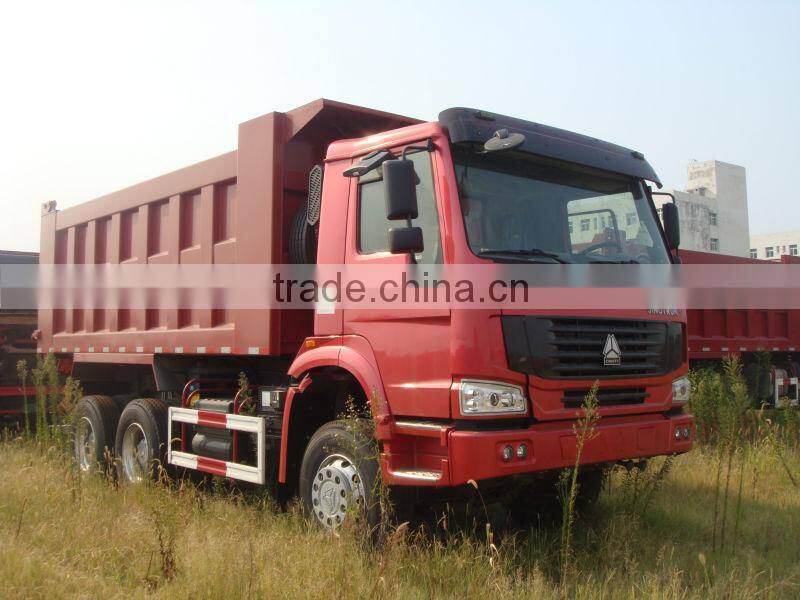

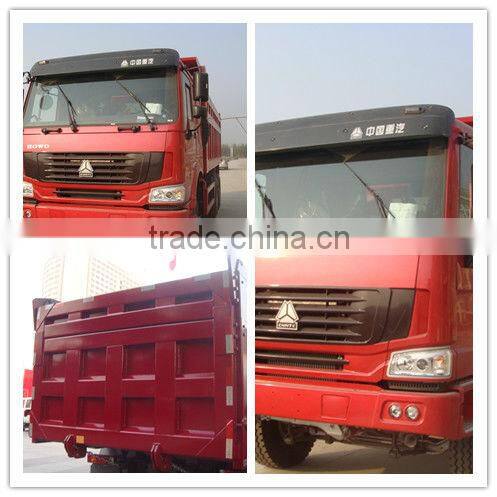

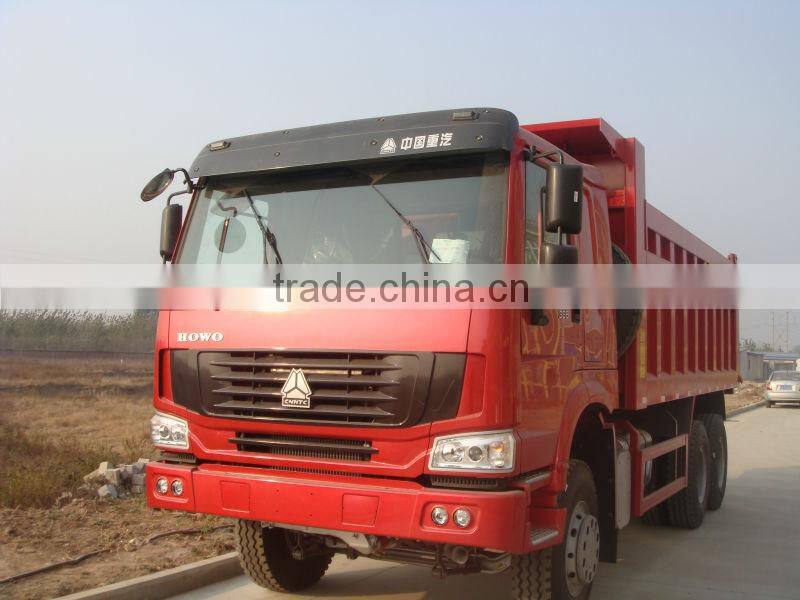

mining dump truck 70 ton
dump Truck Model |
ZZ3257N3647A |
||||
dump Truck Brand |
SINOTRUK –HOWO |
||||
dump Dimension(Lx W x H)(unloaded)(mm) |
8214x2496x3386 |
||||

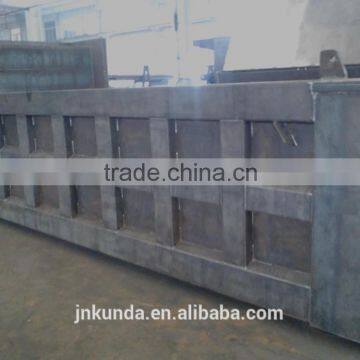

dump Cargo body size (L*W*H, mm) |
5400x2300x1400 |
||||
dump Cargo body thickness(mm) |
bottom:8mm, side:6mm, |
||||
dump Lift type of Carriage |
Ventral lifting |
||||
Approaching angle/Departure angle(°) |
19/26 |
||||
Overhang(front/rear) (mm) |
1500/1739 |
||||
Wheel base (mm) |
3625+1350 |
||||
dump Max speed(km/h) |
75 |
||||
Curb weight(kg) |
12290 |
||||
Loading Weight(kg) |
30000 |
||||
Fuel tanker capacity |
300L with locking fuel cap |
||||
Fuel consumption(L/100km) |
32 |
||||
Clutch |
Single-plate dry clutch Φ420mm |
||||
|
Engine Model (Steyr technology, made in China) |
Model |
WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter cooling |
|||
|
Horse Power, max(kw/rpm) |
371HP,247/2200 |
||||
Emission Standard |
EURO II |
||||
Transmission |
Model |
HW 19710,10 forwards and 2 reverse |
|||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
Auxiliary brake |
Engine exhaust brake
|
||||
Steering system |
Model |
ZF8098 hydraulic steering with power assistance |
|||
Front axle |
HF9 , Steering with double T-cross section beam Loading capacity:9000KG |
||||
Rear axle |
HC16, Casting axle housing, central double reduction with differential locks between axles and wheels |
||||
dump truck Color |
Optional |
||||
dump truck Tire |
12.00-20 10 pieces |
||||
|
Electrical system
|
Operating voltage |
24V,negative grounded |
|||
Starter |
24V,7.35KW |
||||
Alternator |
28V,1500W |
||||
Batteries |
2*12V.165Ah |
||||
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | |||||
Cab |
HW76 cab, (one sleeper,with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
||||
we will supply professionalservices
