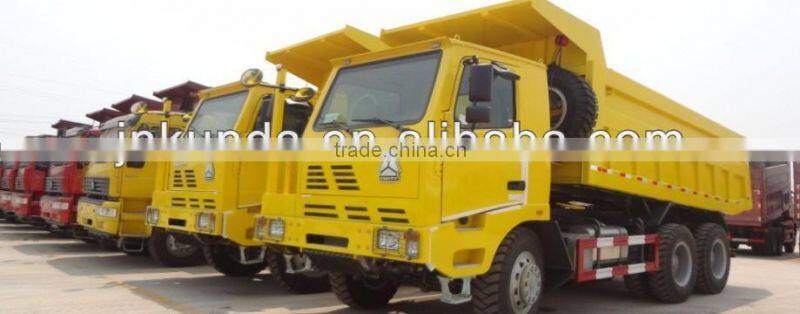

Sinotruck Mining Dump Truck /sinotruk Hova Mining Dump Truck

Name: Sinotruck Mining Dump Truck /sinotruk Hova Mining Dump Truck
Brand: HOWO
Availability: InStock

FOB Price

US$ 70,000 - 90,000 / Unit

1 Unit(Min. Order)

Port Tianjin Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Drive Wheel	6x4	Capacity (Load)	41 - 50t
Horsepower	251 - 350hp	Condition	New
Transmission Type	Manual	Emission Standard	Euro 2
Fuel Type	Diesel
Gross Vehicle Weight	75000	Place of Origin	Shandong, China
Brand Name	HOWO	Model Number	ZZ5707S3840AJ
Dimensions (L x W x H) (mm)	860033003670

Product Description

Specifications

6*4 drive,371hp
bottom plate consists of 7 stringer
Hyva 172 hydraumatic system
suit for open pit

------Advantages:

1) IS9000, 3C and TS16949 certificate

2) High quality and competitive price

3) Professional technology

4) MAN/STERY driving axle

5) HOWO400L, D-Aluminum alloy fuel tank

6) Strong chassis for rough road

------Details:

1)HOWO Mine Overlord is a heavy-duty mining self-dumping truck produced based on CNHTC Mine Overlord for various open pits, steel works, water and power supply construction sites and harbors, braving poor roads and harsh working environment for short distance transport, especially suitable for mining and rock excavation.

2)The chassis features in high strength skeleton cover, single side cab, high-power diesel engine and low temperature heating device convenient for starting and cab heating in winter.

3)The upper structure is made of high quality 16Mn and high tensile steel plate locally. The bottom plate consists of 7 longitudinal beams, very high in loading capacity.

4)The cab shield is in streamline design effectively protecting the cab for safety. The whole vehicle is rational in structure and high in impact resilience. Hova172 system is known for high lifting power, stable and reliable.

------Parameter:

Machinery name	Hot Sale HOWO 6x4 Mining Dump Truck/Mineral Dumper Truck
Driving type	6×4
Chassis No	HOWO 6x4 Mining Dump Truck
Cabin	HW7D 53° tiltable with A/C and sleeper
Brand	SINOTRUK HOWO
Dumpbody dimensions (L×W×H)mm	8700x3000x3205
Wheel base(mm)	3800mm+1400
Tare weight(kg)	12000kg
Rated loading weight (kg)	58000kg
Front axle	HF10 Beam boxing type front axle
Rear axle	AC16(cast steel 2×26ton hub-reduction axle),cross-axle diff locks and inter-axle diff locksSpeed ratio :6.5
Axle load	1x69602x10300
Max.Driving speed(km/h)	75
Engine Type	4 stroke, direct injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling
Engine Model	WD615.96C
Nominal power kw/(r/min)	360kw; 380hp
Maximum torque Nm/(r/min)	1500/1200~1500
Emission standard	9.726L
Gearbox	HW19710+HW70
Clutch	Diaphragm spring clutch, diameter 430mm
Brakes	Service brake: dual circuit compressed air brake; Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering gear	ZF8098, left(right is alternative), hydraulic steering with power assistance
Forward gears transmission ratio	14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.8; 1.34; 1
Reverse ratio	13.91; 3.18
Electric system	HOWO electric system-minus,24V, minus earth
Fuel tank(L)	500L
Tire	14.00-25NHS,1000±10kPa
Front suspension	1500mm; Half the elliptical leaf spring with shock absorber cavitation
Rear suspension	1000mm; The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt
Color	Red, white, green, yellow, gray and so on
