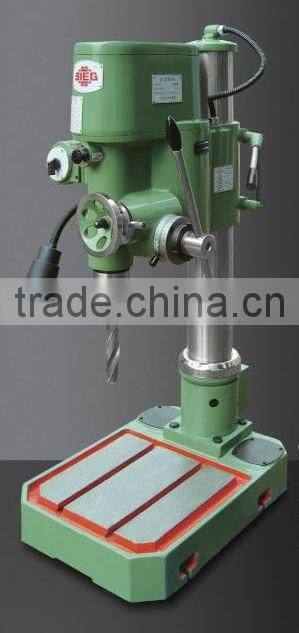

ZH4032 Bench Drilling Machine

Name: ZH4032 Bench Drilling Machine
Brand: bench drilling machine
SKU: 115320901
Availability: InStock

US$ 1 - 2,000 MOQ: 5 Sets

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

78-2500rpm

Shanghai Zhong Jing Imp. & Exp. Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 78-2500rpm

Place of Origin Jiangsu, China

Brand Name bench drilling machine

Model Number ZH4032

Voltage 220-415V

Power(W) 1/1.3/1.7kw

Dimension(L*W*H) 780x505x1410mm

Weight 300kg

Certification CE

After-sales Service Provided Overseas service center available

Specifications

Bench drilling machine
1.Gear shift
2.Superior quality of gears with hardened and lapped gears of surface
3.With micro feed

Bench drilling machine

MAJOR SPECIFICATIONS

Model	ZH4032
Max. drilling diameter(steel)	32mm
Max. tapping diameter(steel)	M20mm
Max. spindle stroke	150 mm
Max.distance from spindle to generating line of column	300 mm
Max. distance from spindle end to the surface of base worktable	730 mm
Max. travel for the spindle box in up and down position	530mm
Spindle taper bore	MT.4
Spindle speed steps	12
Spindle speed ranges	78-2500r/min
Rapid handle feed	110mm/r
Handwheel micro feed	3.66mm/r
Effective working area of worktable	400 x 360mm
Power of main motor	1/1.3/1.7KW
Machine dimension	780 x 505 x 1410mm
Packing dimension	880 x 620 x 1580mm
Weight(Net/Gross)	300/345kg
Sets/20’ container	21

Feature

Gear shift
Superior quality of gears with hardened and lapped gears of surface
With micro feed structure
Length column, expanded the moving distance of spindle box
Increasing the electric current coefficient of convertible switch, with touch protection and CE, UL standard
Inside setting motor with shaft sleeve, convenient maintenance
With new type halogen working lamp

Accessories included in the machine
