Home > Products > 19.cold room > Deep Freezer Cold Room, Walk In Cooler Refrigeration Unit
Deep Freezer Cold Room, Walk In Cooler Refrigeration Unit
- 200 Set / Sets per Month
- Guangzhou Huangpu
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | greenhealth | Model Number: | cold room |
Type: | Other, cold room | Style: | Single-temperature | Certification: | CE |
Capacity: | 20m³ | Temperature: | -18℃ | Refrigerant: | R404a |
Product Description
Deep Freezer Cold Room, Walk In Cooler Refrigeration Unit
Panel thickness has 75mm, 100mm, 150mm, 200mm
Compressor Unit specification
1.Copeland Scroll compressor
2.Hi-thread condenser
3.High-thread series of low-temperature DD evaporator
4.Danfoss high-end expansion valve.(Series expansion valve fot freezer, capilary cut for cooler)
5.Full computer control system(automatic control)
6.Apan Saginomiya/Shangheng solenoid valve( a set of solenoid valve has two units for high temperature unit: running-cream filling, Freezing, Freezing Unit has and addition of liquid spray)
7.Rotor with 4 sets of high-blower
8.LG electrical components
9.Emerson dry filter, pressure relay protection, the protection of high-temperature , compressor temprature control(temperature liquid spray for freezer)
10. Condensale water processor+cooper piping tube+frozen oil+cooling of the refrigerant 404A +silver eletrode + Insulation.Condensate water processor.Packing+carton box/wood box+certification
11. The doors of the cold room have safe lock which is help to open them from inside

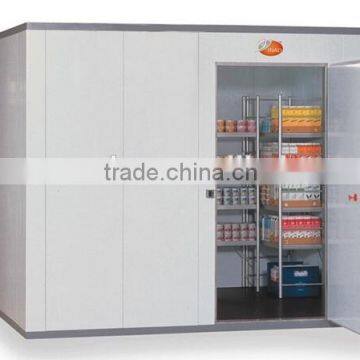

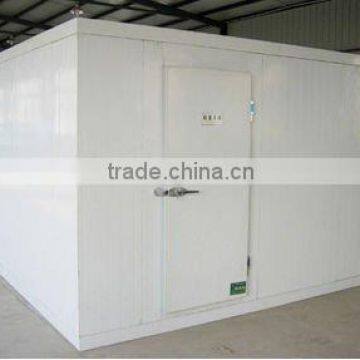

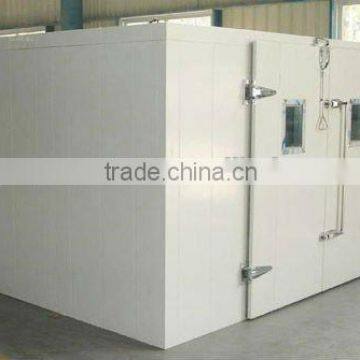

Cold storage room picture
Quick-freeze,ultralow temperature,cold room
temperature setting around -30°C
Main Applications: Frozen quickly.For supermarket, restaurants,hotels, dininghalls, meat shop,fish store,etc.
Copeland Compressor,Vertical scroll compressor

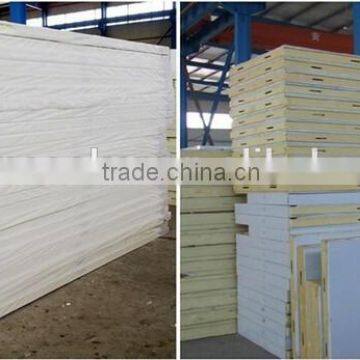

Painted-steel polyurethane panels,thickness 150 mm, thermal insulation very well.
Different designs can meet your different CBM capacity requirement.
The Details specification
1.Double-side colored steel PU panels
2.Panel Accessories(Silicon sealant, hook)
3.Double side color steel hand door
4.DD22 Evaporator
5.Danfoss expansion valve
6.Round-trip insulation copper piping
7.Electrical cabinet
8.R404a refrigerant
9. Moisture-proof cold light
10. Accessories(Hardware, manual stabilize, balance boom, tem-balance window, package.
Factory show
Factory and loading container
