fish and shrimp frozen cold roomthick wall,thermal insulation very well
rapid cooling
uniform temp.
CE approval
fish and shrimp frozen cold room
Greenheath frozen cold storage room adopts environment friendly R404a refrigerant. Capacity can be small to 10cubic meter, big to 1000cubic meter. The temperature can be 0 to 10 °C for chilling storage, or -20°C to frozen storage. The frozen cold room is high quality such as high temperature resistant -60 to +80 celsius. Anti-sun photochemical effect, salt spray test 4days, painted inner interlayer thick 0.5mm, shear stiffness 0.1MPa, inner core materials fire resistance B2. Roof load 1KN/M2 water-proof 0.2Mpa, 10mm/min, 30min, endure. It is fire resistance according to B2 of GB 8624-1997. << buiding materials >> burning relative humidity 5% to 99%. Loading on floor 6KN/m2.
Particular Information:
|
Pictures
105cubic meter |
|
Product Name |
Cold room, vegetables&fruits storage room, meat/butchery freezing room, dairy meat storage cooling room… |
Temperature |
-20 degree |
Machine Lord position(optional) |
Integration refrigerating unit/built in unit or Seperation unit |
Cooling style(optional) |
Air cooling or water cooling |
Door frame(optional) |
double side painting steel, double side stainless steel or double side aluminum board |
Top plank(optional) |
double side painting steel, double side stainless steel or double side aluminum board |
Wall plank(optional) |
double side painting steel, double side stainless steel or double side aluminum board |
Door(optional) |
double side painting steel, double side stainless steel or double side aluminum board |
Cape plank(optional) |
double side painting steel, double side stainless steel or double side aluminum board |
Boffom frame(optional) |
double side painting steel, double side stainless steel or double side aluminum board |
Scale board(optional) |
double side painting steel, double side stainless steel or double side aluminum board |
Product Size |
6m*7m*2.5m |
Product Volume |
105cubic meter |
Unit power/horse number |
13HP |
Body material thickness |
150mm |
Single door size |
W800mm*H1800mm or big sliding door optional |
Cold room with floor panel thickness |
100mm |
Compressor |
Valley wheel compressor |
Use scope |
Ta restaurant equipment, cake room equipment, coffee shop equipment, bakery equipment, liquor stores equipment, western food shop equipment, Chinese food shop equipment, equipment, condiment processing plant equipment brewery, fruit and vegetable processing plant equipment, frozen foods factory equipment, a meat processing equipment, |
Optional function, Cold store door, air curtain machine, lighting:
1.1 Sliding door, manual opening and closing.
1.2 When door is opened, the air curtain machine and lights in cold storage can be running automatically.
Customize idea
Different size, different temperature for keeping different goods available to make…Low Running Costs

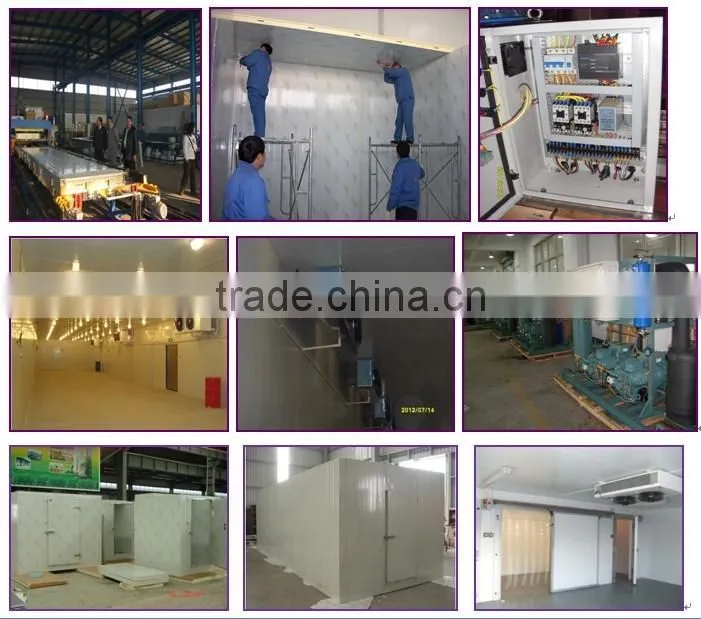

Project pictures
Compressor Unit specification
1.Copeland Scroll compressor
2.Hi-thread condenser

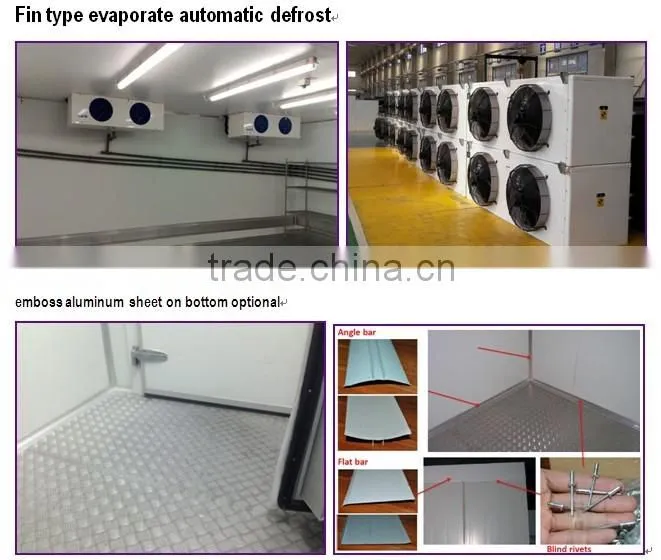

3.High-thread series of low-temperature DD evaporator
4.Danfoss high-end expansion valve.(Series expansion valve fot freezer, capilary cut for cooler)
5.Full computer control system(automatic control)
6.Apan Saginomiya/Shangheng solenoid valve( a set of solenoid valve has two units for high temperature unit: running-cream filling, Freezing, Freezing Unit has and addition of liquid spray)
7.Rotor with 4 sets of high-blower
8.LG electrical components
9.Emerson dry filter, pressure relay protection, the protection of high-temperature , compressor temprature control(temperature liquid spray for freezer)
10. Condensale water processor+cooper piping tube+frozen oil+cooling of the refrigerant 404A +silver eletrode + Insulation.Condensate water processor.Packing+carton box/wood box+certification
11. The doors of the cold room have safe lock which is help to open them from inside
fronzen cold room for meat and fish picture
Quick-freeze,ultralow temperature,cold room
temperature setting around -30°C
Main Applications: Frozen quickly.For supermarket, restaurants,hotels, dininghalls, meat shop,fish store,etc.
Copeland Compressor,Vertical scroll compressor

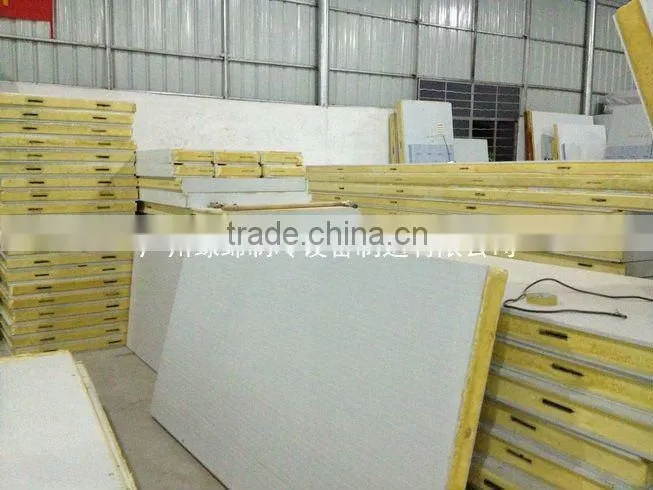

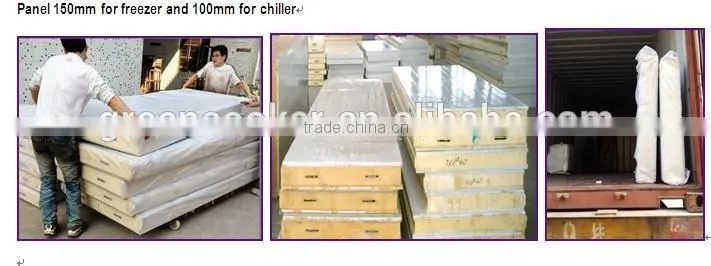

Painted-steel polyurethane panels,thickness 150 mm, thermal insulation very well.
Different designs can meet your different CBM capacity requirement.

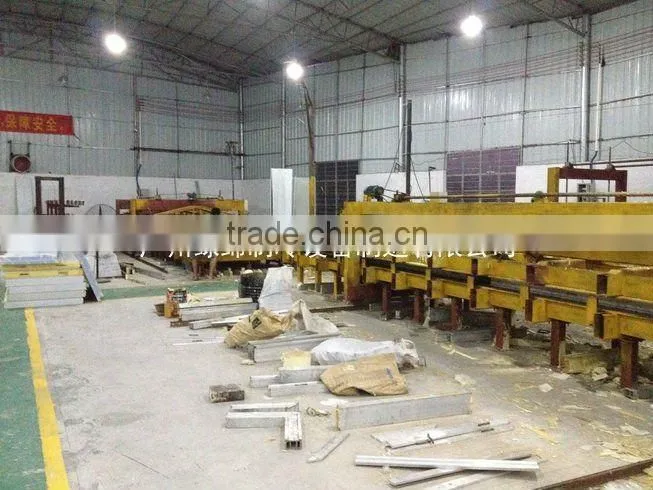

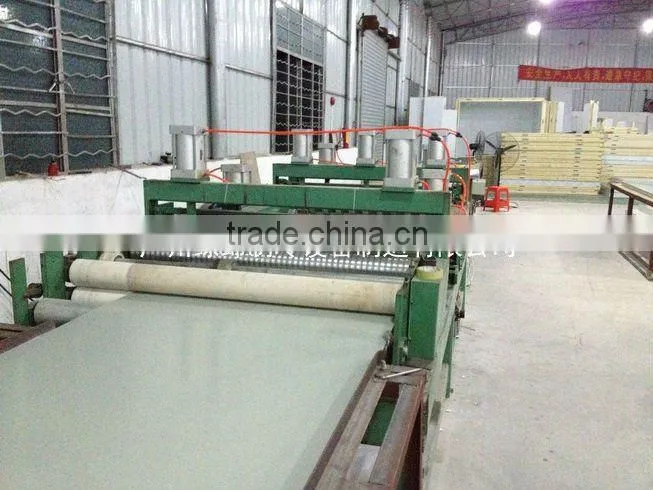

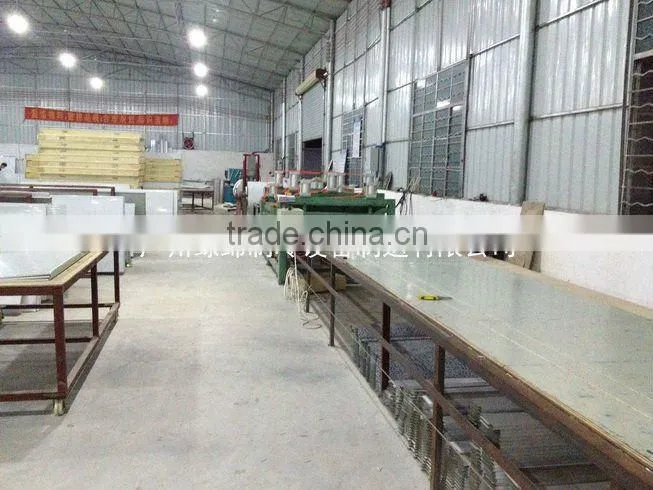

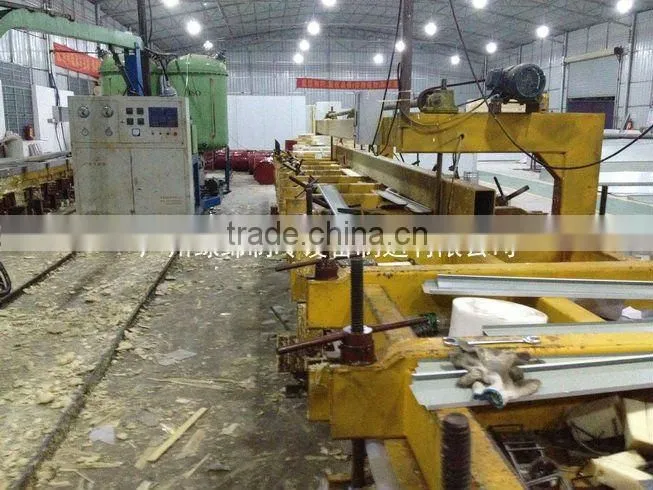

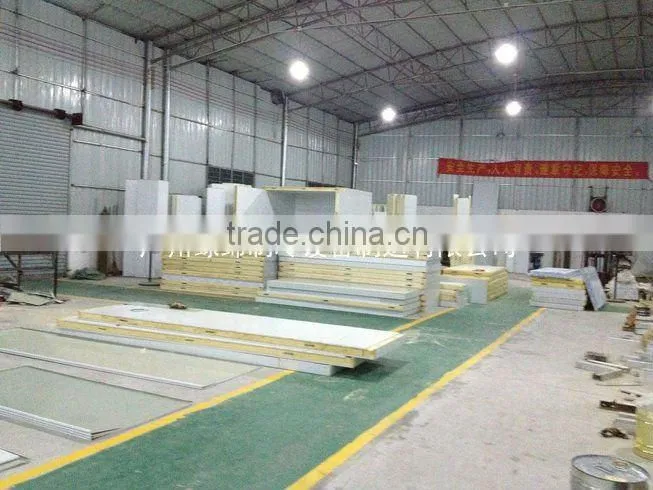

Factory show
|
|
|
|
|
|

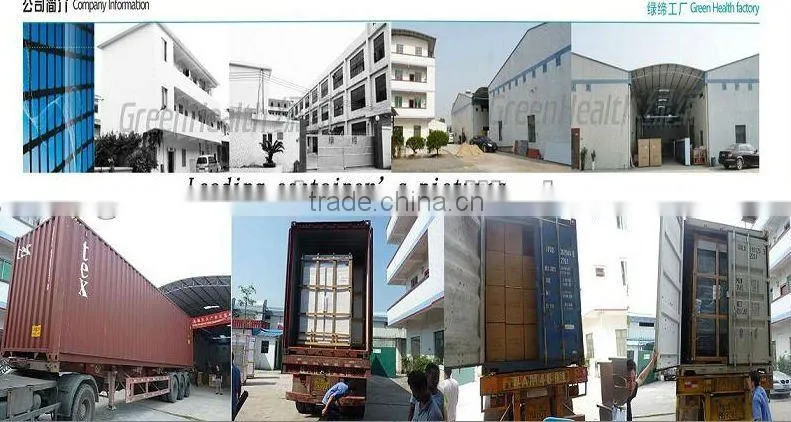

Factory and loading container
