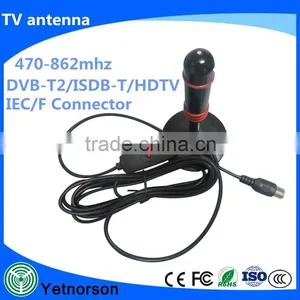

Help Center4dBi TV Antenna With IEC Connector
Related Products
-
UHF VHF Digital DVB-T Antenna DvD-T2 Antenna /Digital Tv Antenna F Male Connector RG58 CableUS$ 1.9 - 2.5MOQ: 500 Pieces -
New DVB-T Antenna For Digital Terrestrial TV ReceiverUS$ 1.9 - 2.5MOQ: 500 Pieces
-
(manufactory)digital Car tv Antenna/tv Antenna AmplifierUS$ 1.6 - 2.5MOQ: 500 Pieces
-
170/230/470~860Mhz Broadband Antenna Magnetic Mount Car Dvb-t AntennaUS$ 0.8 - 1.5MOQ: 300 Pieces
-
2dBi DVB-T TV HDTV Antenna 15cmUS$ 0.8 - 1.5MOQ: 300 Pieces
HDTV digital indoor TV antenna amplifier for signal booster
Key features of 4dBi TV Antenna with IEC Connector
1) Low V.S.W.R. / Low Loss Design / High Gain
2) High Efficiency and Sensitivity
3) Low Loss RF Coaxial Connector Cable Feed
4) Matching Free Design
Specification of 4dBi TV Antenna with IEC Connector
| Electrical Specifications of tv antenna amplifier | |
| Frequency Range (MHz) | VHF174-230 / UHF470-860 |
| Bandwidth (MHz) | V56/U390 |
| Input Impendence (Ω) | 50 |
| V.S.W.R | ≤1.5 |
| Gain (dBi) | 5dBi |
| Prolarization Type | Vertical |
| Radiation Direction | Omni-directional |
| Max Input Power (w) | 50 |
| Mechanical Specifications | |
| Antenna Length (mm) | 120 |
| Material | UV protected ABS |
| Connect Type | SMA/IEC/F (customize) |
| Radiator | Cuprum |
| Working Temp | -40~85°C |
| Mounting | Magnetic Base |
| Radome Color | Black+Red |
| Inner Cable | RG174/RG58 (Customize) |
| Cable Length | 3m (Customize) |
Advantage of 4dBi TV Antenna with IEC Connector
Strong signal reception
Support for waterproof and dustproof
Suitable for indoor DVB-T /DVB-T2 application
This antenna has high gain,wide frequency band, interference resistance, plastic molding method,high-strength magnet,stable performance,easy installation.

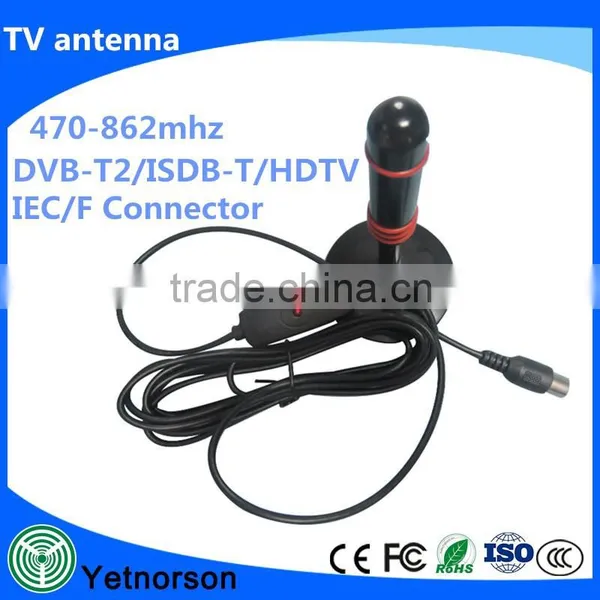

Product Pictures of 4dBi TV Antenna with IEC Connector
Test of 4dBi TV Antenna with IEC Connector
Certificate of 4dBi TV Antenna with IEC Connector
Company information
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3G / 4G / 5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series. Looking forward to your joing.
We Provide
1) High quality and competitive price
2) Standard packing and timely delivery
3) We supply OEM and ODM service
4) Sample Order and Small Order are acceptable
Why us
If You have Any Questions, Feel Free to Contact Us
