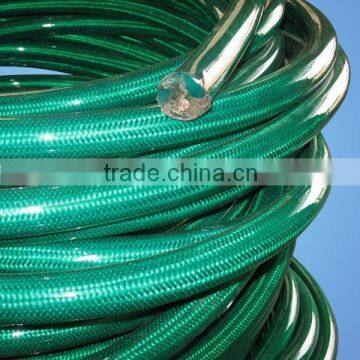

Help CenterBop Control Line Hose Assembly
Related Products

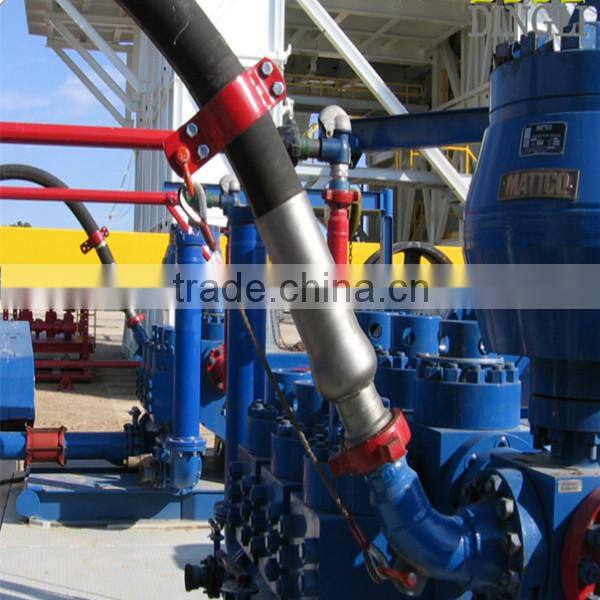

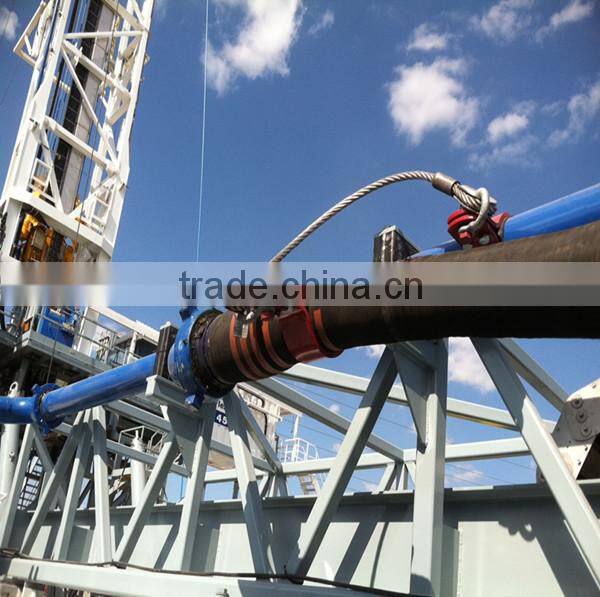

Application: the hose for well control—GNG high-pressure, fire-resistant and heat-insulation hose assembly is mainly used for the
hydraulic control of the BOP for drilling and for hydraulic transmission at high temperature and flammable places in the metallurgic industry.

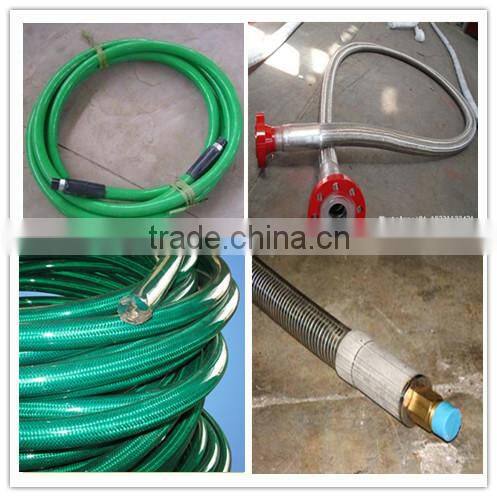

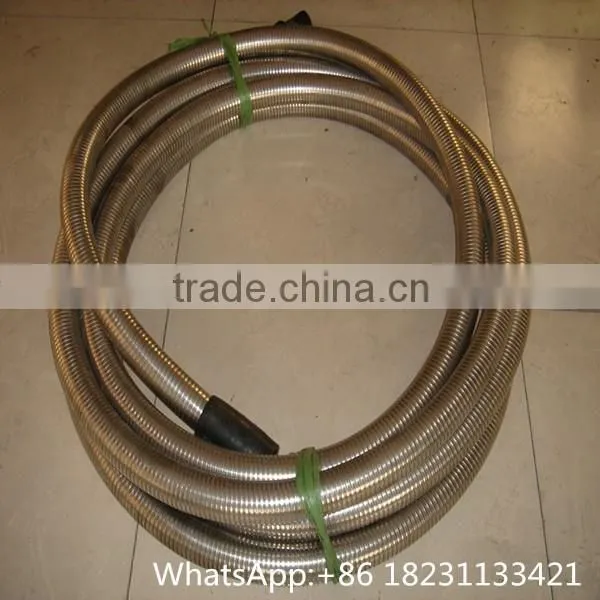

Classification: high molecular polymer jacket type; stainless steel armored jacket type and braided stainless steel wire jacket type
Standard: API Spec 16D; SY/T5053.2-2002
ID | OD | W.P(MPA)) | B.P(MPA)) | min. bending | thread | Working Time with Fire-Resistance at 750C | |
Normal | Limit | ||||||
6.30 | 24 | 35 | 105 | 130 | NPT LP | 5 | 25 |
26 | 70 | 175 | |||||
8.00 | 28 | 35 | 105 | 140 | |||
32 | 70 | 175 | |||||
10.00 | 30 | 35 | 105 | 160 | |||
34 | 70 | 175 | |||||
12.50 | 37 | 35 | 105 | 210 | |||
43 | 70 | 175 | |||||
16.00 | 41 | 35 | 105 | 260 | |||
47 | 70 | 175 | |||||
19.00 | 44 | 35 | 105 | 280 | |||
50 | 70 | 175 | |||||
22.00 | 47 | 35 | 105 | 320 | |||
53 | 70 | 175 | |||||
25.00 | 50 | 35 | 105 | 360 | |||
56 | 70 | 175 | |||||
31.50 | 56 | 35 | 105 | 460 | |||
62 | 70 | 175 | |||||
38.00 | 63 | 35 | 105 | 560 | |||
69 | 70 | 175 | |||||
