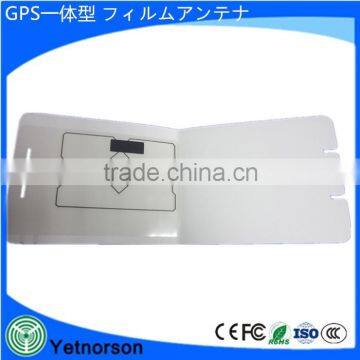

high sensitivity enabled GPS integrated terrestrial digital film general purpose film antenna general-purpose re-covered
Specifications
Electrical Specification | |
Center Frequency (MHz) |
1575.42MHZ±2MHZ |
Bandwidth (MHz) |
±2MHZ |
Gain (dBi) |
29dB±3dB(LNA) |
Input Impendence (Ω) |
50Ω |
V.S.W.R |
≤1.8 |
Consumption Electric |
<10mA |
Polarization Intensity |
R.H.C.P |
Supply Voltage |
DC3.3~5.0V |
ESD-Compliant |
SJ/T 10694 |
Testing voltage(KV) |
15 |
The Sound Coefficient |
≤1.5dB |
Axial Ratio |
3dB |
Max Input Power (w) |
50w |
Operating Temperature |
-40°C~+85°C |
Storing Temperature |
-20°C~+85°C |
Cable length (mm) |
3000 |
Connector Type |
FAKRA C (Blue) IPEX/SMA |
Radome Color |
Black |
Dimension-mm |
Φ72 x 21 |
Weight (g) |
140 |
Electrical Specifications | |
Frequency Range (MHz) |
1575.42Mhz |
Input Impendence (Ω) |
50 |
V.S.W.R |
≤1.5 |
Gain (dBi) |
3.0 |
Polarization Type |
Vertical |
Radiation Direction |
Omnidirectional |
Max Input Power (w) |
50 |
Operating Temperature |
-40°C~+85°C |
Storing Temperature |
-20°C~+85°C |
Cable length (mm) |
3000 |
Connector Type |
SMA |
Radome Color |
Black |
Dimension-mm |
25mm*25mm*4mm |
Testing:
Each products must pass a test,
GPSM Antenna GPS GSM Anten GPS GSM Antenna
1. We can guarantee the product quality within one years.
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise, who is one of the leader engaged in the antenna products, custom service, R&D and design.Our main products at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series.
1. Q: What is you brand?
A: Yetnorson antennas.
2. Q: How can i get the sample?
A: If you need sample to test, please pay for the shipping cost, there we can free for one sample to you.
3. Q: How much the shipping cost will be for sample?
A: It depend on the weight and packing size you are.
4. Q: How can I get the price list?
A: Please send the email and order information for us, so we can give the latest price for you.
5. Q: Can you give me the deliver time?
A: Delivery time is approx. 14 to 25 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations.
1) Australia - 7-14 working days
2) UK/ Canada - 14-21 working days
3) Europe & Ireland - 18-24 working days
4) Brazil/ South America - 30-40 working days
5) Russian Federation:30-50 working days,we suggest you choose hk post
high sensitivity enabled GPS integrated terrestrial digital film general purpose film antenna general-purpose re-covered
