CE&ISO WPC Profile Extrusion Line

FOB Price

US$ 58,000 - 85,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Profile
Plastic Processed	PVC	Screw Design	Double-screw
Automatic Grade	Full automatic	Place of Origin	Jiangsu, China
Brand Name	CHICHENG	Model Number	YF
Voltage	380V or customized	Power(W)	According to model
Dimension(LWH)	According to model	Weight	According to model
Certification	CE$ISO	After-sales Service Provided	Engineers available to service machinery overseas

WPC Profile Extrusion Line
1.High speed twin screw extruder
2.Output: 60-700 kg/h
3.Test before delivery
4.CE&ISO approved

WPC Profile Extrusion Line

Process Flows:

Features:

1. This line is composed of conical twin screw extruder, vacuum calibration tank, tractor, cutter, turn-over stacker.

2. It has advantages of wide adjustment range, high precision, convenient operation and so on.

3. The ouput of the main main engine can reach 150kg to 450kg per hour.

4. The tractor is specially designed by our company and adopts the lifting technology.

5. The vacuum calibration tank adopts special cooling system to ensure the sizing effect.

6. The moving speed of the cutter and tractor are synchronous and the speed is controlled by PLC computer.

7. The cutter also adopts dust recycling device.

8. According to different moulds, calibration tank of 4m, 6m, 8m and 11m can be choosen.

9. The auxiliary machine adopts programmable controller or electric control system.

Main Technical Parameter:

Model	YF180	YF240	YF400	YF600	YF800	YF1000
Max width of board(mm)	180	240	400	600	800	1000
Drawing height(mm)	140
Drawing force(N)	15	30		40	50
Drawing speed(m/s)	0.5-5
Auxiliary equipment sum power(kW)	18.7	31.6				37.1
Compression air(N)	0.6

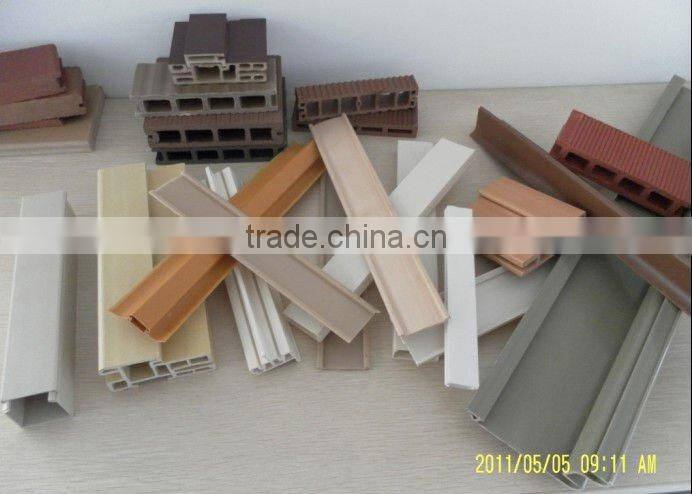

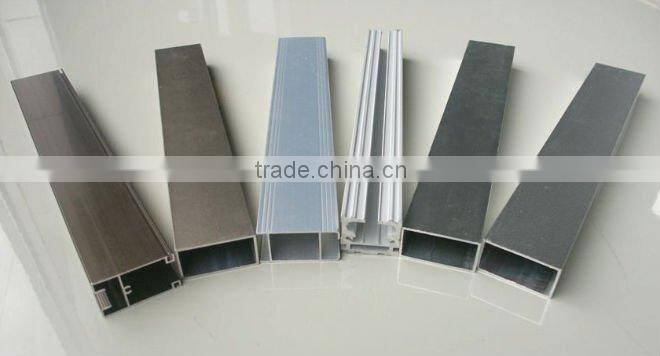

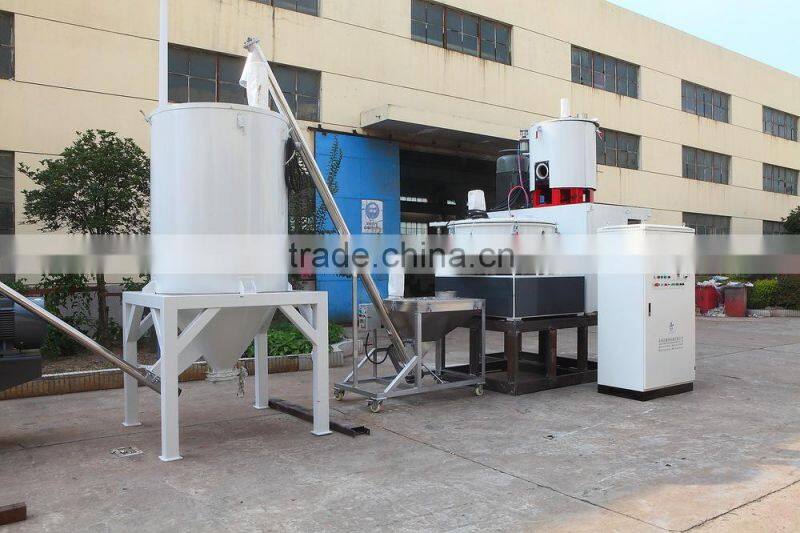

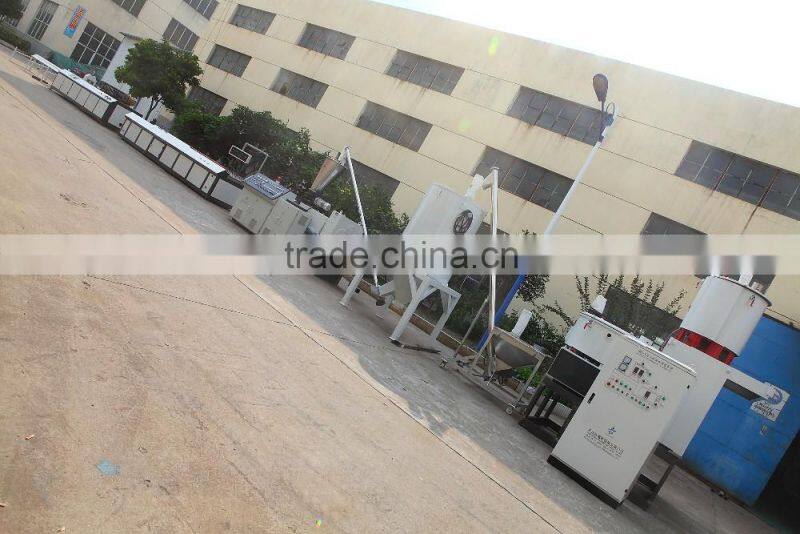

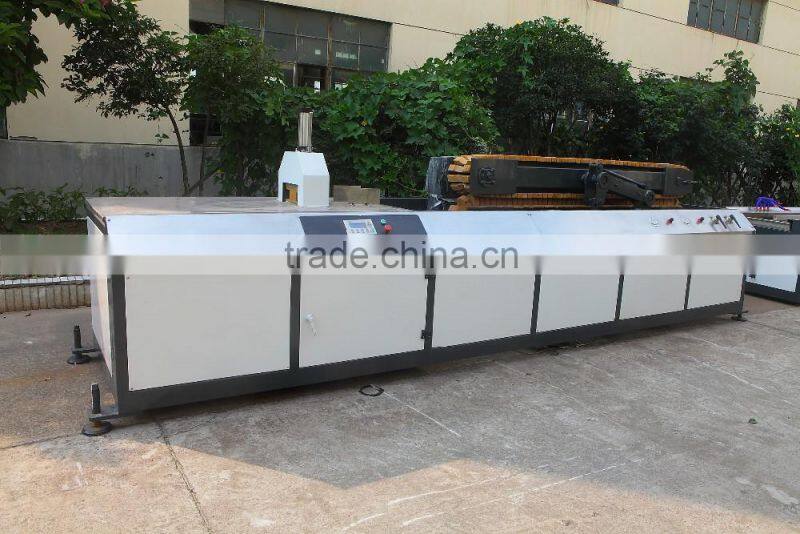

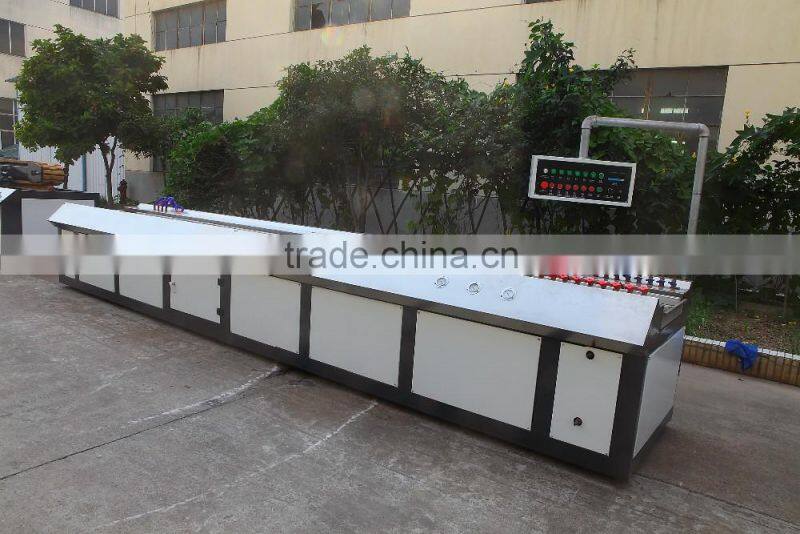

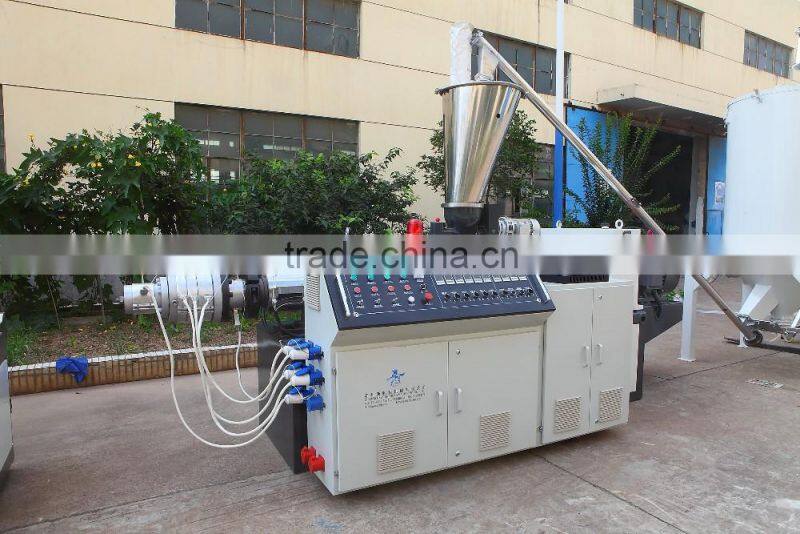

WPC Profile Extrusion Line Pictures:

If you want more information, please contact us, thanks!

Our company is near Shanghai ,about 130km. Welcome to our factory anytime!
