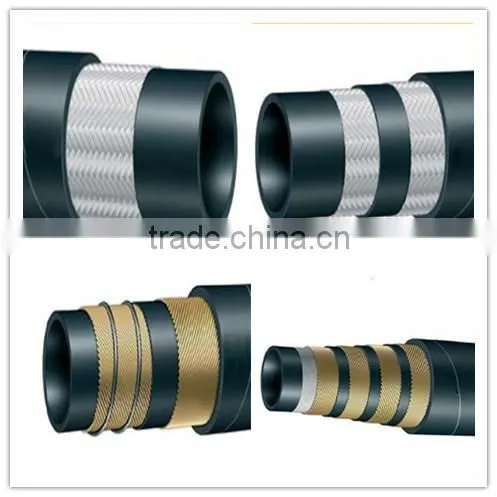

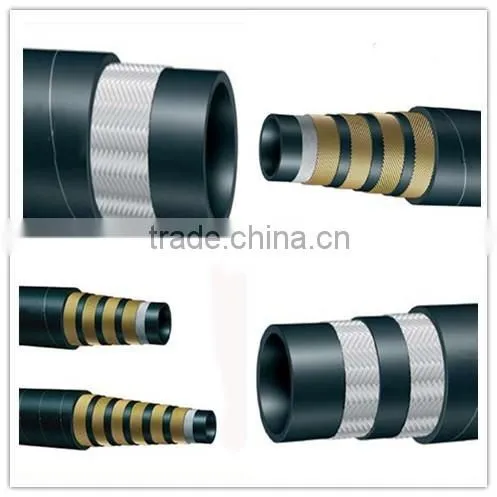

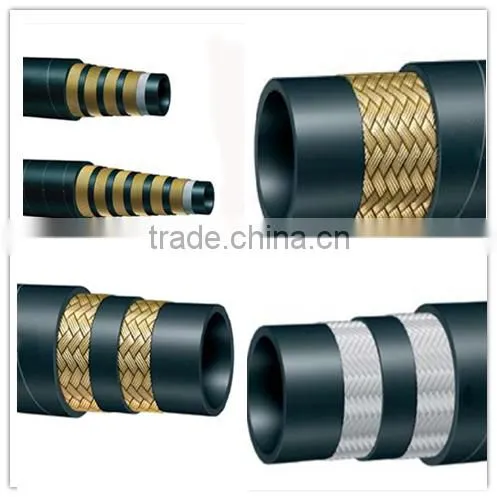

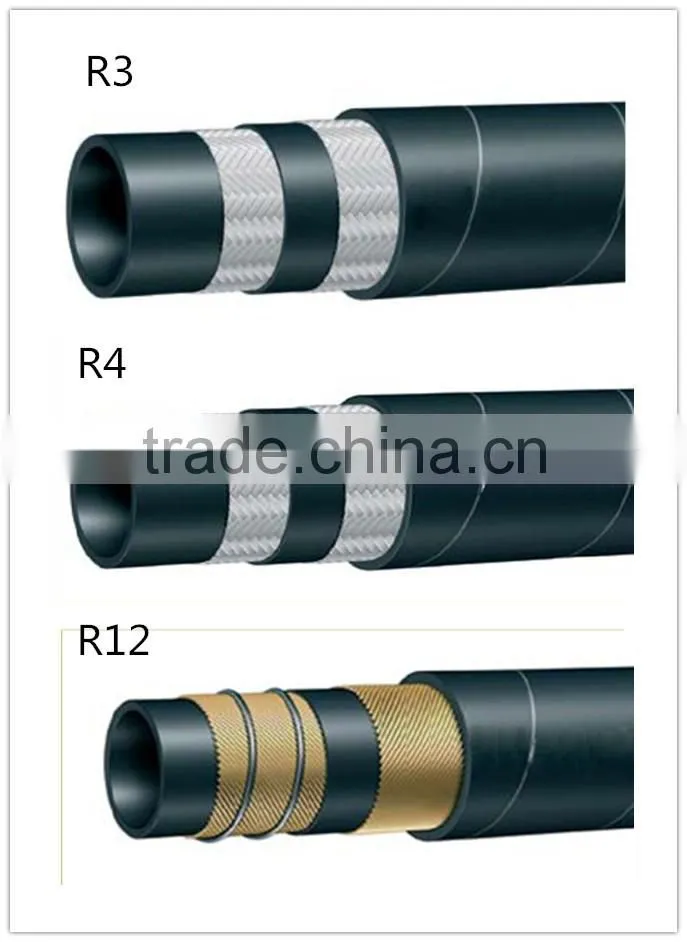

Hydraulic rubber hose

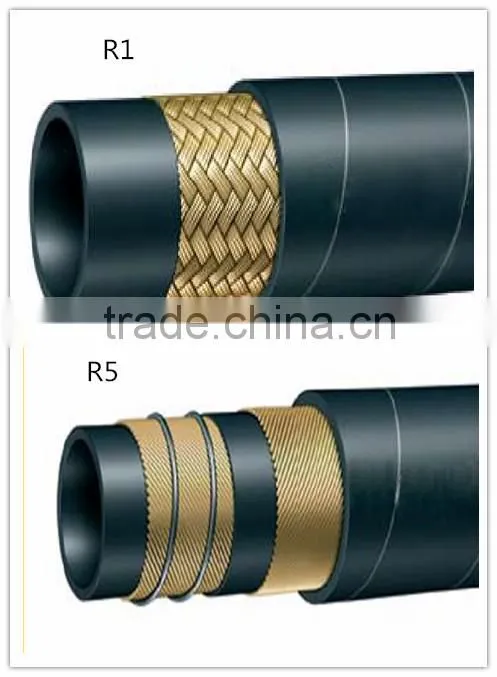

SAE 100R1AT /DIN EN 853 1SN

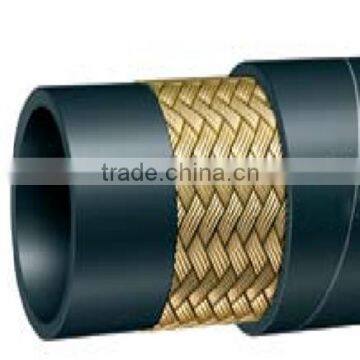

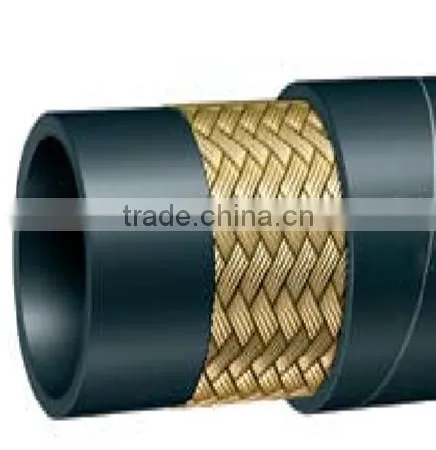

Steel wire reinforced, rubber covered hydraulic hose type AT
Tube: Oil resistant synthetic rubber
Reinforcement:one high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature Range: -40℃ to +100℃
DN |
Hydraulic Hose Assembly
OD | Working Pressure | Burst Pressure | Minimum end Radius | Weight | ||||
inch | mm | mm | Mpa | psi | Mpa | psi | mm | kg/m | |
6 | 1/4 | 6.4 | 15.9 | 22.5 | 3270 | 90.0 | 12840 | 100 | 0.31 |
8 | 5/16 | 7.9 | 17.5 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.38 |
10 | 3/8 | 9.5 | 19.8 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.45 |
13 | 1/2 | 12.7 | 23.0 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.55 |
16 | 5/8 | 15.9 | 26.2 | 13.0 | 1890 | 52.0 | 7420 | 200 | 0.63 |
19 | 3/4 | 19.0 | 30.2 | 10.5 | 1530 | 42.0 | 6000 | 240 | 0.77 |
25 | 1 | 25.4 | 38.1 | 8.8 | 1280 | 35.0 | 5020 | 300 | 1.06 |
32 | 1 1/4 | 31.8 | 46.0 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.45 |
38 | 1 1/2 | 38.1 | 52.4 | 5.0 | 730 | 20.0 | 2860 | 500 | 1.80 |
51 | 2 | 50.8 | 66.7 | 4.0 | 580 | 16.0 | 2280 | 630 | 2.30 |

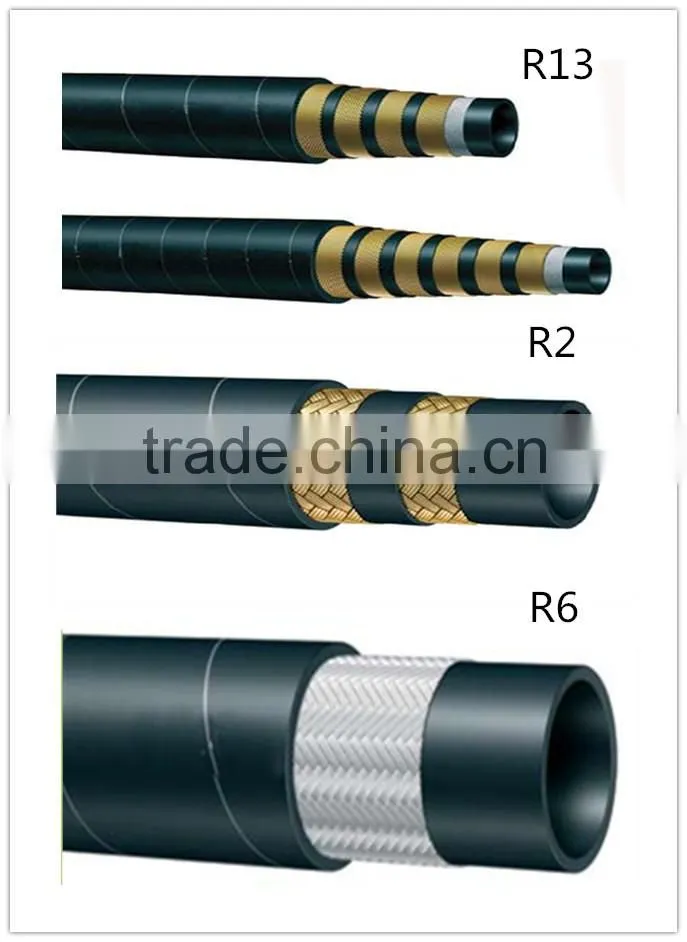

SAE 100R2AT/DIN EN 853 2SN
High pressure, steel wire reinforced, rubber covered hydraulic hose type AT
Tube: Oil resistant synthetic rubber
Reinforcement: two high tensile steel wire layers
Cover: Abrasion and weather resistant synthetic rubber
Temperature Range: -40℃ to +100 ℃
DN | ID | OD | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
inch | mm | mm | Mpa | psi | Mpa | psi | mm | kg/m | |
5 | 3/16 | 4.8 | 13.4 | 41.4 | 6000 | 165 | 23720 | 89 | 0.32 |
6 | 1/4 | 6.4 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 | 0.36 |
8 | 5/16 | 7.9 | 16.6 | 36.0 | 5250 | 140 | 20000 | 114 | 0.45 |
10 | 3/8 | 9.5 | 19.0 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 |
13 | 1/2 | 12.7 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 |
16 | 5/8 | 15.9 | 25.4 | 25.0 | 3630 | 100 | 14280 | 203 | 0.8 |
19 | 3/4 | 19.0 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 |
25 | 1 | 25.4 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 |
32 | 1 1/4 | 31.8 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 |
38 | 1 1/2 | 38.1 | 54.6 | 9.0 | 1310 | 36 | 5140 | 508 | 2.65 |
51 | 2 | 50.8 | 67.3 | 8.0 | 1160 | 32 | 4560 | 635 | 3.42 |
1. We consistent good quality with reasonable price.
2. Stable production capacity(Our output each month can be 800,000 meters for hoses.)
3. Delivery in time.
4. Good quality control.
kelly(at)
