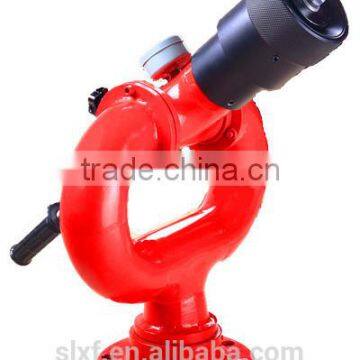

Help CenterFixed Fir Monitor for Foam/water Double Use for Fire Fighting
Related Products
We Accept Customized
General Information
The dual-use monitor is lately designed independently by our company by absorbing domestic and foreign advanced technologies of fire monitor.
The fire monitor has a simple and novel structure with stable and reliable performance. It’s easy to operate and convenient to maintain.It can be used for temperature cooling of fire site and fire rescue.

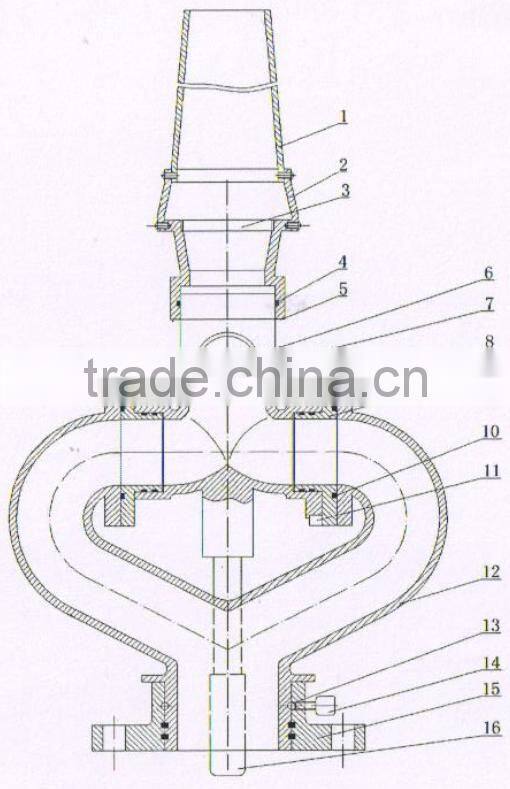

Structure Chart
Part List of Structure Chart
Advantages
1. Large flow and long range spraying.
2. Used for direct current spraying as well as atomizing.
3. Flexible and convenient operation.
4. Function of horizontal and pitching rotation.
5. Function of self-locking
Place for Installation
The product is applicable to solid fire extinguishing equipment,
such as heavy fire trucks, fire boats, mining enterprises,
warehouses, oil fields, tanks and other places.
Using Operation
1. Choose the proper model according to the water supply of fire pump. Aim the target with the fire monitor nozzle and choose spraying angle as needed.
2. Working pressure ranging from 0.6 to 1.2Mpa. When rotating, don’t push too hard for avoiding head damage.
3. The fire monitor is foam and water double-use motor. Don’t open the foam valve when spraying water. If need to extinguish fire with foam, just open the foam valve and spray.
Regular Check and Maintenance
1. Regularly check the fire monitor. The rotating parts should be checked at least once a month and add the lubricating oil.
2. Clean fire monitor once a year to ensure that the rotation is flexible.
3. Check whether the parts are complete, the connection is firm and rubber seal ring is intact after use. Repair or change one if damaged.
4. Pay attention to antifreeze in cold areas
