Help Center90 Degree Elbow Aluminum Profile
Related Products
-
Products Promotion 90 Degree Aluminum ElbowUS$ 0.69 - 98.57MOQ: 1 Piece -
Aluminum Profile 90 Degree ElbowUS$ 0.69 - 97.24MOQ: 1 Piece
-
90 Degree Elbow Aluminum ProfileUS$ 0.69 - 94.57MOQ: 1 Piece
-
Aluminum 90 Degree ElbowUS$ 0.65 - 96.44MOQ: 1 Piece
-
Rigid Aluminum 90 Degree ElbowUS$ 0.69 - 94.35MOQ: 1 Piece

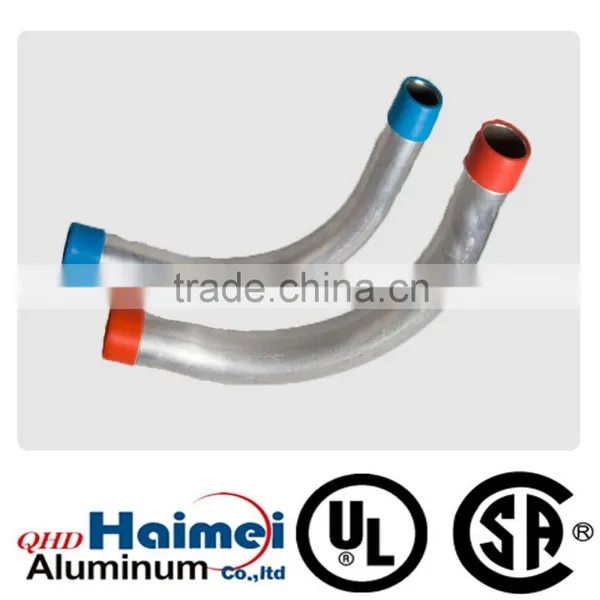

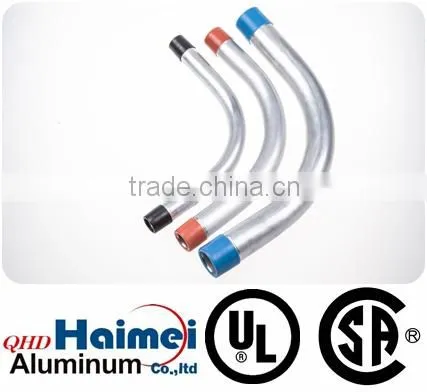

We are Qinhuangdao Haimei Aluminum Co., Ltd. which is the leading manufacturer of Rigid Aluminum Conduits, also offers a broad line of aluminum accessories, including elbows (90o and 45o), couplings and nipples. The range of the products are produced in standard trade size from 1/2" to 6" .
Generally , our products can be used in electrical project, industry,Airport,Bridge Program etc. They are made from 6063 aluminum alloy. 6063 is considered to be an extrusion alloy that is heatable for strengthening. It has a surface finish that is far smoother than the other commercially available alloys.
In order to improve Haimei’s service in high quality, the products match the UL Standard for Electrical Metal Conduit – Aluminum ,Bronze & Stainless Steel, UL6A. They are especially suited for applications and installations requiring light weight, highly corrosive resistant, and non-magnetic protection. The advantage of our products will be introduced to you clearly:
1.Costs Less than Rigid Steel Conduit with extremely durable
2.Light weight is nearly 1/3 as much as Steel
3.Excellent corrosion resistance, non-magnetic, moisture
4.Easy to install and Low maintenance
*Only Haimei Rigid Aluminum Conduit Offers 2 Ways to Save on Every Job
1.Lower Upfront Material Cost
| Percent Material Savings for Aluminum vs Galvanized |
size |
%Savings |
1/2” |
15% |
3/4” |
8% |
1" |
12% |
1 1/4” |
14% |
1 1/2” |
9% |
2" |
9% |
2 1/2” |
21% |
3" |
15% |
3 1/2” |
12% |
4" |
11% |
5" |
38% |
6" |
44% |
2.Less Installation Labor
| Persent Installation Labor Savings for Aluminum vs Galvanized |
| Size | Laid in Trench | 12"ceiling | 16"ceiling | 20"ceiling |
| 1 1/4" | 34.9% | 32.6% | 32.2% | 35.3% |
| 1 1/2" | 46.9% | 48.1% | 47.7% | 46.9% |
| 2" | 59.7% | 57.1% | 55.3% | 57.1% |
| 2 1/2" | 59.1% | 58.2% | 59.1% | 57.1% |
| 3" | 57.1% | 58.1% | 57.1% | 57.6% |
| 3 1/2" | 72.4% | 71.2% | 58.2% | 57.9% |
| 4" | 73.1% | 71.5% | 71.4% | 70.2% |
| 5" | 72.4% | 70.8% | 70.0% | 71.4% |
| 6" | 71.4% | 71.0% | 70.3% | 70.0% |
| Trade Size | Approxinate Weight | Nominal Diameter | |||||||
| Desingnator | per100Ft(30.5) | A | B | C | |||||
| U.S. | Metric | Ib. | Kg. | in. | mm. | in. | mm. | in. | mm. |
| 1/2 | 16 | 26 | 11.7 | 4.00 | 101.6 | 6.50 | 165.1 | 2.50 | 63.5 |
| 3/4 | 21 | 37 | 16.7 | 4.50 | 114.3 | 7.25 | 184.2 | 2.75 | 69.9 |
| 1 | 27 | 63 | 28.7 | 5.75 | 146.1 | 8.375 | 212.7 | 2.875 | 73.0 |
| 1-1/4 | 35 | 103 | 46.7 | 7.25 | 184.2 | 10.25 | 260.6 | 3.00 | 76.2 |
| 1-1/2 | 41 | 143 | 65.0 | 8.25 | 209.6 | 11.875 | 301.6 | 3.625 | 92.1 |
| 2 | 53 | 228 | 103.3 | 9.50 | 241.3 | 14.00 | 355.6 | 4.50 | 114.3 |
| 2-1/2 | 63 | 375 | 170.0 | 10.50 | 266.7 | 15.75 | 400.1 | 5.25 | 133.4 |
| 3 | 78 | 592 | 268.7 | 13.00 | 330.2 | 18.75 | 476.3 | 5.75 | 146.1 |
| 3-1/2 | 91 | 842 | 381.7 | 15.00 | 381.0 | 21.75 | 552.5 | 6.75 | 171.5 |
| 4 | 103 | 1084 | 491.7 | 16.00 | 406.4 | 23.00 | 584.2 | 7.00 | 177.8 |
| 5 | 129 | 2331 | 1058.0 | 24.00 | 609.6 | 36.00 | 914.4 | 11.00 | 279.4 |
| 6 | 155 | 3721 | 1688.0 | 30.00 | 762.0 | 42.50 | 1079.5 | 12.50 | 317.5 |
1.Reply your enquiry in 24 working hours,any time you can contact me.
2.OEM, buyer design, buyer label services provided.
3.Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs.
4.we can provide free sample for your check
5.we have the certification of UL
6.Special discount and protection of sales area provided to our distributor.
7.timely delivery
8.packing can make client brand.
9.Good after-sale service
General Headquarters:
Post Address:No.158 Wenhua Road Haigang District Qinhuangdao Hebei Province,China
Factory Address:Changli Gold Coast,Qinhuangdao,Hebei
Telephone No: +86-335-5948600
Fax No:+86-335-3028323
Calling after Working Time: +86-13933651027 (Cinderella Liu)
