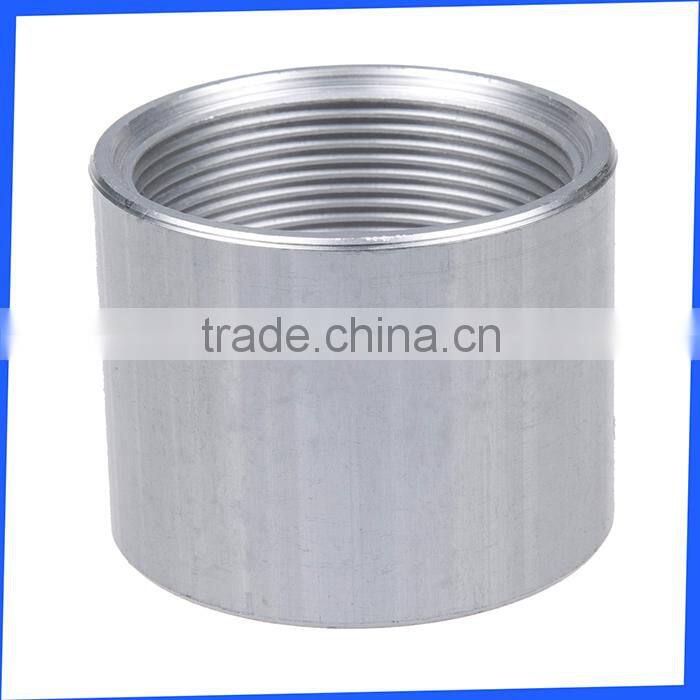

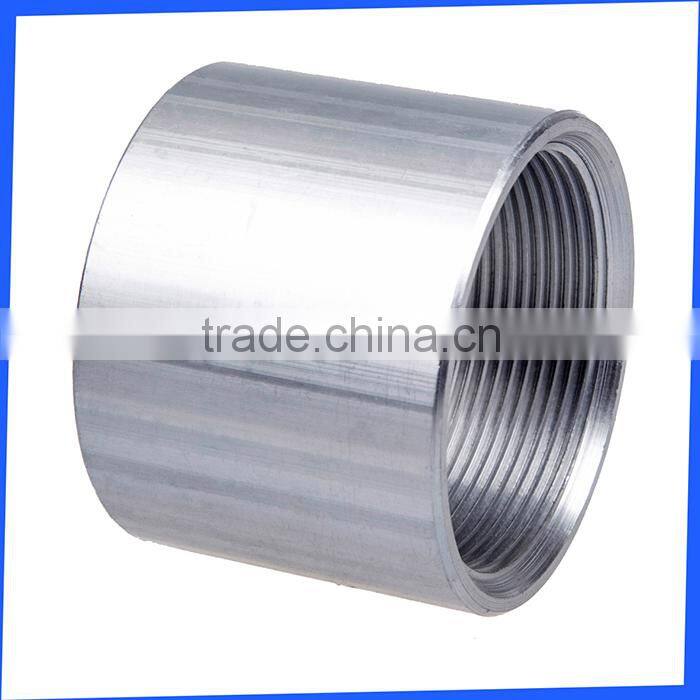

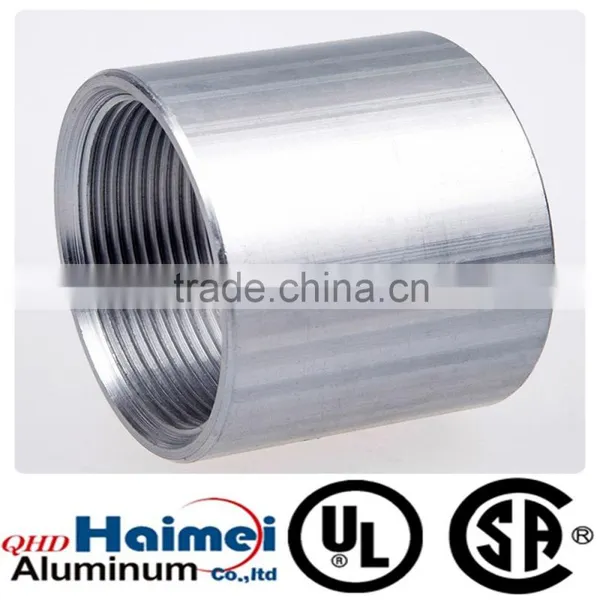

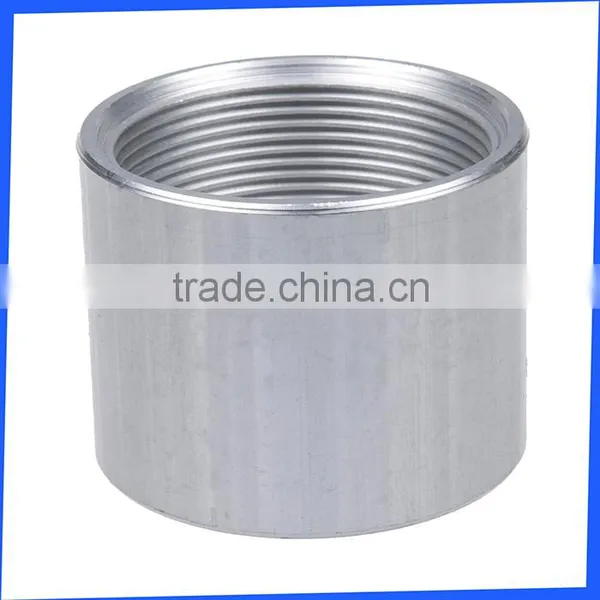

ul approved large diameter aluminum weld pipe fittings
- 6000 Ton / Tons per Month
- Tianjin Xingang
- T/T L/C D/P D/A Credit Card PayPal
- screw pump coupling HSNH280-54A for power plant
- Customized flexible steel motor shaft coupling pump coupling
- China manufacturer Motor side coupling DTPD30FM002 for power generation
- Made in China Type 03 Coupling U238/2ZT(DY) for thermal power plant
- Made in China Type 03 Coupling U238/2ZT(DY) for thermal power plant
- CoupTec Coupling Technology: Innovating Torque Transmission Solutions-supply of china
Product Details
Structure: | Other, thread protector | Flexible or Rigid: | Rigid | Standard or Nonstandard: | Standard |
Material: | Aluminium | Brand Name: | haimei | Place of Origin: | Hebei, China |
Model Number: | ALU |
Product Description
We are Qinhuangdao Haimei Aluminum Co., Ltd. which is the leading manufacturer of Rigid Aluminum Conduits, also offers a broad line of aluminum accessories, including elbows (90o and 45o), couplings and nipples. The range of the products are produced in standard trade size from 1/2" to 6" .
Generally , our products can be used in electrical project, industry,Airport,Bridge Program etc. They are made from 6063 aluminum alloy. 6063 is considered to be an extrusion alloy that is heatable for strengthening. It has a surface finish that is far smoother than the other commercially available alloys.
In order to improve Haimei’s service in high quality, the products match the UL Standard for Electrical Metal Conduit – Aluminum ,Bronze & Stainless Steel, UL6A. They are especially suited for applications and installations requiring light weight, highly corrosive resistant, and non-magnetic protection. The advantage of our products will be introduced to you clearly:
1.Costs Less than Rigid Steel Conduit with extremely durable
2.Light weight is nearly 1/3 as much as Steel
3.Excellent corrosion resistance, non-magnetic, moisture
4.Easy to install and Low maintenance
*Only Haimei Rigid Aluminum Conduit Offers 2 Ways to Save on Every Job
1.Lower Upfront Material Cost
Percent Material Savings for Aluminum vs Galvanized |
size | %Savings |
1/2” | 15% |
3/4” | 8% |
1" | 12% |
1 1/4” | 14% |
1 1/2” | 9% |
2" | 9% |
2 1/2” | 21% |
3" | 15% |
3 1/2” | 12% |
4" | 11% |
5" | 38% |
6" | 44% |
2.Less Installation Labor
Persent Installation Labor Savings for Aluminum vs Galvanized |
Size | Laid in Trench | 12"ceiling | 16"ceiling | 20"ceiling |
1 1/4" | 34.9% | 32.6% | 32.2% | 35.3% |
1 1/2" | 46.9% | 48.1% | 47.7% | 46.9% |
2" | 59.7% | 57.1% | 55.3% | 57.1% |
2 1/2" | 59.1% | 58.2% | 59.1% | 57.1% |
3" | 57.1% | 58.1% | 57.1% | 57.6% |
3 1/2" | 72.4% | 71.2% | 58.2% | 57.9% |
4" | 73.1% | 71.5% | 71.4% | 70.2% |
5" | 72.4% | 70.8% | 70.0% | 71.4% |
6" | 71.4% | 71.0% | 70.3% | 70.0% |
• 6063 Aluminum Alloy
• Available 1/2 "to 6"
• NPT thread on each end
Trade Size | Approxinate Weight | Nominal Outside | Length | Standard | ||||
Desingnator | per100Ft(30.5) | Diameter | Package | |||||
U.S. | Metric | lb. | Kg. | in. | mm. | in. | mm. | Pieces |
1/2 | 16 | 6.0 | 2.7 | 1.08 | 27.4 | 1.56 | 39.6 | 100 |
3/4 | 21 | 9.0 | 4.1 | 1.33 | 33.8 | 1.62 | 41.1 | 50 |
1 | 27 | 11.9 | 5.4 | 1.56 | 39.6 | 2.00 | 50.8 | 30 |
1-1/4 | 35 | 18.7 | 8.5 | 1.95 | 49.5 | 2.06 | 52.3 | 25 |
1-1/2 | 41 | 23.1 | 10.5 | 2.22 | 56.4 | 2.06 | 52.3 | 25 |
2 | 53 | 34.8 | 15.8 | 2.75 | 89.8 | 2.12 | 53.8 | 15 |
2-1/2 | 63 | 60.4 | 27.4 | 3.28 | 83.3 | 3.12 | 79.2 | 20 |
3 | 78 | 84.2 | 38.2 | 3.94 | 100.8 | 3.25 | 82.6 | 15 |
3-1/2 | 91 | 97.9 | 44.4 | 4.44 | 112.8 | 3.37 | 85.6 | 12 |
4 | 103 | 132.1 | 59.9 | 5.00 | 127.0 | 3.50 | 88.9 | 12 |
5 | 129 | 253.5 | 115.0 | 6.30 | 160.0 | 3.75 | 95.3 | 8 |
6 | 155 | 326.3 | 148.0 | 7.39 | 187.7 | 4.00 | 101.6 | 8 |
1.Reply your enquiry in 24 working hours,any time you can contact me.
2.OEM, buyer design, buyer label services provided.
3.Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs.
4.we can provide free sample for your check
5.we have the certification of UL
6.Special discount and protection of sales area provided to our distributor.
7.timely delivery
8.packing can make client brand.
9.Good after-sale service
Are you a trading company or manufacturer? | Manufacturer with factory |
What kinds of filter do you produce? | It covers for air filter,oil filter,fuel filter for car and truck |
Is Customized filter available? | Yes,please offer your required specifications and drawing |
Do you Accept OEM service? | YES! |
what’s your delivery terms? | FOB (2)CFR (3)CIF |
What's your Delivery Time? | 1)generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock |
2)Normally within 30 days,please confirm with us before order! | |
What's the Payment Terms? | Usually,30% as deposit,70% before shipment by T/T |
Western Union acceptable for small amount. | |
L/C acceptable for large amount. | |
Scrow ,Paybal,Alipay are also ok | |
How you pack products? | Normally,plastic bag inside and carton outside .We'll do according to customers' requirement |
What's your available port of Shipment? | Normally, Tianjin Other ports available but you should afford extra charges. |
Trade and Market | Main Market Western European 20% |
