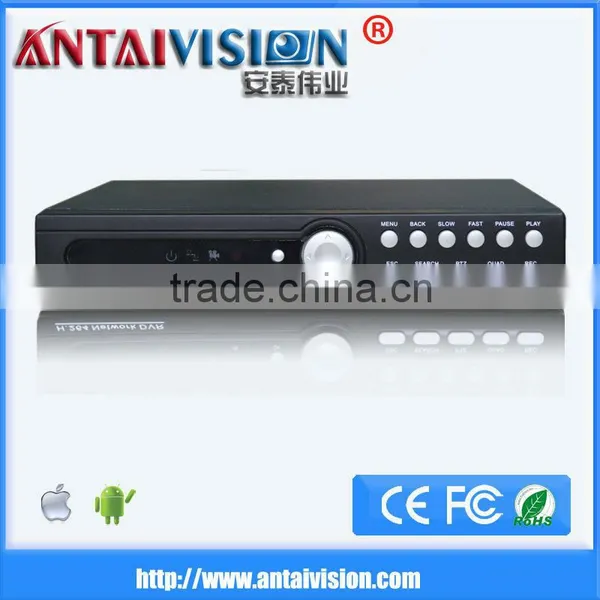

4ch 3g Wifi Digital Video Recorder
US$ 35 - 37
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANTAI
Model Number:
DVR-H3804AP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
ANTAI
Model Number
DVR-H3804AP
Specifications
4CH 960H real Time Recording / 4CH 960H Playback,4ch Video in / 1ch Video out, 1 x HDD,4ch Audio in / 1ch Audio out,Support VGA,Product Description
| FEATURES | |||
| Remote control easily & conveniently without any complicated setting. | |||
| Compression algorithm upgraded to H.264 High Profile, more advanced video compression technique makes the code stream lowered at least 30%. | |||
| Support main stream and extra steam encode synchronously. Main stream is for local storage, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth. | |||
| Supporting 3G & WiFi extension | |||
| Support all kinds of mobile monitor (iPhone, Windows Mobile, BlackBerry, Symbian, Andriod). | |||
| Supporting HDMI 1080P / VGA 1080P / TV simultaneous video output. | |||
| Similarly WINDOWS operating interface design, powerful right-click menus, to let you experience easily and conveniently. | |||
| Powerful net service(support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center, etc), complete enclosure(WEB, CMS, SDK), to easily achieve interconnection. | |||
| For web browsers, compatible with Internet Explorer, Mozilla Firefox, Google Chrome, Safari | |||
| With our own DDNS Service (ARSP), Remote operation step on the internet, Easy to use.Also dupport 3322,dyndns,oray,myq-see,NO-IP,etc | |||
| Support alarm triggered recording will send alerts matter to the designated FTP and email. Support pre-alarm recording (before 10 sec), not lose any suspicious screen. | |||
| Channel switching is independent from the local site, allowing users to have private image monitoring remotely. | |||
| Allows live display, record, playback, backup, network and mobile surveillance at the same time. | |||
| Two USB2.0, supporting USB mouse, backup, record,and upgrade ,etc . | |||
| 28 kinds of language (English, Finnish, French, German, Greek, Italian, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc). | |||
| System auto recovery after power failure | |||
| Main processor | Industrial grade embedded micro controller chip Huawei Hisilicon chipset 3520D | |
| Operating system | Embedded LINUX operating system | |
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
| Operation interface | 16 bit real color GUI interface support mouse operation | |
| Multilingual Language | YES, 28 kinds of language | |
| Video Standard | PAL(625 lines, 50fps); NTSC(525lines, 60fps) | |
| Image encode | H.264(Main Profile) | |
| Monitor quality | Monitor:D1; VGA & HDMI: (1920*1080,1280*720,1440*900,1280*1024,1024*768) | |
| Playback quality | 960H/D1/HD1/CIF | |
| Space Usage | Video CIF:4~5G/day*channel, D1:16~20G/day *channel,960H:9~42G/day*channel, 720P:10G~42G/day*channel,1080P:20G~80G/day*channel,Audio 691.2M/day *channel | |
| Video storage | Local Hard Disk, Network | |
| Back up mode | Network backup, USB portable HDD, USB DVD-RW | |
| Video output | 1ch BNC(1.0Vp-p,75Ω), 1ch VGA, 1ch HDMI | |
| Audio input | 4ch RCA (200-2800mV,30KΩ) | |
| Audio output | 1ch RCA (200-3000mV,5KΩ)/1ch HDMI audio output | |
| Alarm input | 4ch(default: not supportingbut can order) | |
| Alarm output | 1ch(default: not supportingbut can order) | |
| Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | |
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | |
| USB port | Support USB 2.0 port | |
| HDD port | Accommodates 1 SATA HDDs (1 HDD capacity up to 3TB) | |
| Wireless Port | 3G & WIFI ( Extented by USB) | |
| User level | Admin / User | |
| User right | Users can set different permissions (How to use please refer to the manual book) | |
| Password protection | YES | |
| Remote Independent Operation | YES | |
| Download records | YES | |
| Remote Event Trigger Recording | YES | |
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | |
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | |
| Live Audio | YES | |
| On-line user | Max. 10 | |
| Mobile Surveillance | YES (Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod have remote playback function) | |
| Network Protocol | DHCP,PPPOE,NTP,Email,IP Authority,DDNS,FTP,ARSP,Alarm Center,Wireless Dialing,Mobile Monitor,UPNP,Wifi,RTSP,Cloud Service | |
| Motion detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) | |
| Event Notification | FTP / E-Mail | |
| Pre-alarm Recording | YES | |
| Video loss | Video loss notification | |
| Buzzer | YES | |
| IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) | |
| Remote control | YES | |
| Cooling fan | NO | |
| Tour | YES | |
| Power Source (±10%) | DC 12V / 2A | |
| Power Consumption (±10%) | <10W(without HDD) | |
| Operating Temperature | 0°C ~ +55°C | |
| Dimensions (mm) ** | 250mm(L)* 210mm(W)* 45mm(H) | |
| System Recovery | System auto recovery after power failure | |
| Net Weight | 0.95KG±0.1KG | |
| Carton Box Size | 5 units packaging:358mm(L)* 83mm(W)* 270mm(H); 10 units packaging:325mm(L)* 80mm(W)*255mm(H) ; | |
| Package Size | 5 units packaging:440mm(L)* 375mm(W)*285mm(H) ; 10 units packaging:415mm(L)* 335mm(W)*525mm(H) ; | |
| Gross Weight | 5 units packaging:7.5kg±0.5kg; 10 units packaging:14.0kg±0.5kg; | |
