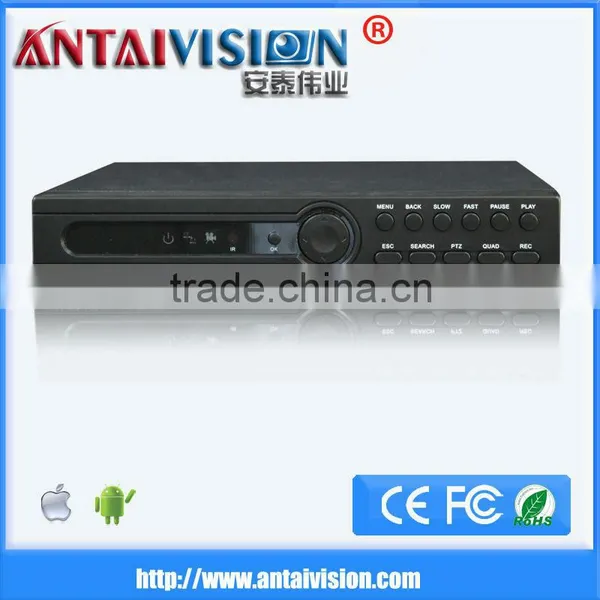

Cheapest 4ch D1 DVR

Cheapest 4ch D1 DVR thumbnail-1
Cheapest 4ch D1 DVR photo-1
US$ 27 - 29 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANTAI
Model Number:
AT-H3704BP-4S
Contact Supplier Request Quote Chat Now
Antaivision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ANTAI
Model Number AT-H3704BP-4S

Specifications

4CH D1 Recording / 4D1Playback
4ch Video in / 1ch Video out, 1 x HDD
4ch Audio in / 1ch Audio out,Support VGA, PTZ, 3G-WiFi,HD


Product Description



FEATURES
Remote control easily & conveniently without any complicated setting.
Compression algorithm upgraded to H.264 High Profile, more advanced video compression technique makes the code stream lowered at least 30%.
Support main stream and extra steam encode synchronously. Main stream is for local storage, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
Support all kinds of mobile monitor (iPhone, Andriod).
Supporting HDMI / VGA / TV simultaneous video output.
Similarly WINDOWS operating interface design, powerful right-click menus, to let you experience easily and conveniently.
Powerful net service(support DHCP/ADSL, PPPOE,DDNS, NTP, UDP, TCP/IP, etc), complete enclosure(WEB, CMS), to easily achieve interconnection.
For web browsers, compatible with 32-bit Internet Explorer, 360,and Sogou,,Google, Mozilla Firefox,etc.
Supporting DDNS Service : DynDNS, NO-IP, Myq-See, Oray, 3322,and so on.
Support alarm triggered recording will send alerts matter to the designated email. Support pre-alarm recording (before 10 sec), not lose any suspicious screen.
Channel switching is independent from the local site, allowing users to have private image monitoring remotely.
Allows live display, record, playback, backup, network and mobile surveillance at the same time.
Two USB2.0, supporting USB mouse, backup, record,and upgrade ,etc .
14 kinds of language to break the national boundaries
System auto recovery after power failure
Operating system Embedded LINUX operating system
System resource Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Operation interface 16 bit real color GUI interface support mouse operation
Multilingual Language YES, supporting 14 kinds of languages
Display screen 1/2/4 Screen 1/2/4/8/9 Screen
Video Standard PAL(625 lines, 50fps); NTSC(525lines, 60fps)
Image encode H.264(Main Profile)
Monitor quality Monitor:D1; VGA&HDMI( 1280*1024;1024*768)
Video output 1ch BNC(1.0Vp-p,75Ω), 1ch VGA , 1ch HDMI
Audio input 4ch RCA (200-2800mV,30KΩ)
Audio output 1ch RCA (200-3000mV,5KΩ)
Alarm input 4ch (default not supporting,but can order )
Alarm output 1ch (default not supporting,but can order )
Network port 1*RJ45 10/100 Base-T self-adaptive Ethernet port
PTZ control 1*RS485 port, Support more than 5 kinds protocols.
USB port 2* USB 2.0 port
HDD port 1* SATA HDD interface,(1 HDD capacity up to 2TB)
Wireless Port 3G & WIFI (extended by USB)
User level Admin
User right Users can set different permissions (How to use please refer to the manual book)
Password protection YES
Remote Independent Operation YES
Download records YES
Remote Event Trigger Recording YES
CMS CMS Software for multiple DVR (up to 255 DVR simultaneously)
Browser Internetie32-bit,360,Sogou,Google, Mozilla Firefox
Live Audio YES
On-line user Max.10
Mobile Surveillance YES (Supporting iPad, iPhone,Android;iPad, iPhone, Andriod remote playback function )
Network Protocol DHCP/ADSL,PPPOE, SMTP,TCP / IP,DDNS,Wireless dial,WIFI,P2P
Motion detection FTP/YES
Event Notification E-Mail
Pre-alarm Recording YES
Video loss Video loss notification
Buzzer YES
IR remote controller Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in)
Remote control Yes
Cooling fan NO
Tour YES
Power Source (±10%) DC 12V / 2A
Power Consumption (±10%) <10W(without HDD)
Operating Temperature 0°C ~ +55°C
Dimensions (mm) ** 325mm(L)* 245mm(W)* 52mm(H)
System Recovery System auto recovery after power failure
Net Weight 0.9kg±0.1kg
Carton Box Size 5units packaging:358mm(L)* 83mm(W)* 270mm(H);       10units packaging:325mm(L)* 80mm(W)*255mm(H) ;
Package Size 5units packaging:440mm(L)* 375mm(W)*285mm(H) ;       10units packaging:415mm(L)* 335mm(W)*525mm(H) ;
Gross Weight 5units packaging:7.5kg±0.5kg;       10units packaging:14.0kg±0.5kg;
