china ahd dvr manufacturer Antai Vision 4ch 8ch 16ch 720p 1080p free client software h.264 ahd dvr
| Model | Model | 16Channel H.264 AHD |
| HS-AHD-5516BE (I,R,D,P,K,Z) | ||
| Board Model | PCBA-HS-AHD-B3531-16 | |
| System | Main processor | Industrial grade embedded micro controller chip Huawei Hisilicon chipset 3531 |
| Operating system | Embedded LINUX operating system | |
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | |
| Display | Operation interface | 16 bit real color GUI interface support mouse operation |
| Multilingual Language | YES, 28 kinds of language | |
| Display screen | 1/4/8/9 screen (set pure local input mode for example, others are decided by channel mode) | |
| Video | Video Standard | PAL/NTSC(720P) |
| Image encode | H.264(High Profile) | |
| Monitor quality | Monitoring:HDMI:HDMI(supporting 1920*1080, 1280*720,1440*900,1280*1024, 1024*768,800*600) | |
| Playback quality | AHD-M/AHD-L(960H)/D1 | |
| Audio | Audio compression | G.711A |
| Two-way Communication | YES | |
| Record and playback | Record mode | Manual, alarm, motion detection, timing |
| Local playback | 1~8ch( local input mode),Max 8ch playback | |
| Video search | Time, date, event, channel search | |
| Storage and back up | Space Usage | Video 720P:16~20G/day *channel,960H:10~20G/day*channel,Audio 691.2M/day *channel |
| Video storage | Local Hard Disk, Network | |
| Back up mode | Network backup, USB portable HDD, USB DVD-RW | |
| Loop Output | NO | |
| Alarm input | 4ch | |
| Alarm output | 1ch | |
| Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | |
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | |
| USB port | Support USB 2.0 port | |
| Wireless Port | 3G & WIFI ( Extented by USB) | |
| User | User level | Admin / User |
| User right | Users can set different permissions (How to use please refer to the manual book) | |
| Password protection | YES | |
| Remote | Remote Independent Operation | YES |
| Download records | YES | |
| Remote Event Trigger Recording | YES | |
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | |
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | |
| Live Audio | YES | |
| On-line user | Max. 10 | |
| Mobile Surveillance | YES (Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod have remote playback function) | |
| Network Protocol | DHCP,PPPOE,NTP,Email,IP Authority,DDNS,FTP,ARSP,Alarm Center,Wireless Dialing,Mobile Monitor,UPNP,Wifi,RTSP,Cloud Service,PMS | |
| Alarm | Motion detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) |
| Event Notification | FTP / E-Mail | |
| Pre-alarm Recording | YES | |
| Video loss | Video loss notification | |
| Buzzer | YES | |
| Other | IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) |
| Remote control | YES | |
| Cooling fan | YES | |
| Tour | YES | |
| Power Consumption (±10%) | <12W (without HDD) | |
| Operating Temperature | 0℃ ~ +55℃ | |
| Dimensions (mm) ** | 370mm(L)* 300mm(W)* 60mm(H) | |
| System Recovery | System auto recovery after power failure |
Back panel picture

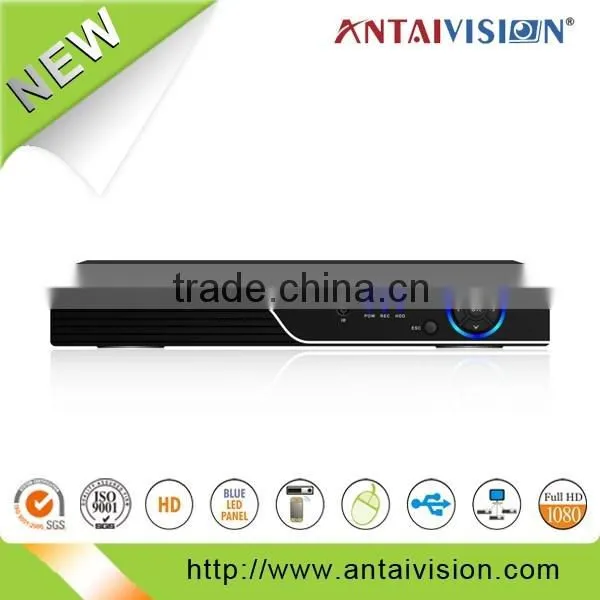

Product Show
| Package | Net Weight | 2.15kg±0.1kg |
| Carton Box Size | 410mm(L)* 124mm(W)* 352mm(H) | |
| Package Size | 640mm(L)* 425mm(W)* 370mm(H) | |
| Gross Weight | 16.0kg±0.5kg |
CERTIFICATE
EXHIBITION
1.Offer OEM/ODM service:
1) Logo silk print service;
2) Nearly 50 kinds of styles provided for clients' choose;
2. After-sale Service:
1) All products will be tested 5 times before delivering.
2) All products will be checked 100% ok before packing.
3) All products will be offered one year's warranty, and technological supports for its lifelong.
If you'd like to learn more and get latest price.pls add my
Skype:Antaivision-Angel
Wechat:A-Sun-01
QQ:3041798485
Or send inquiry to my
Email:sales07 at
I will work for you sincerely !
Please check our website: m
Any inquiries will be replied in 24 hours
Professional manufacturer and welocome to Visit Our factory in Shenzhen City
OEM/ODM service offered, Welcome to Ask Any Question
Antai Looks Forward to Serving You !!!
Q1: What is your MOQ for this product?
A1: We accept small and sample orders for our existing models, for OEM orders the MOQ is 1000 units.
Q2: How long is the warranty period?
A2: 24 months warranty is promised to all customers.
Q3: What is the delivery time?
A3: For sample order it takes 3-5 working days, for mass production it takes 7-15 working days.
Q4: What should I do if I have some problems to handle the DVR?
A4: You can contact our sales, send email to us and all emails wil be replied within 24 hours.
