Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr

Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr thumbnail-1
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr thumbnail-2
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr thumbnail-3
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr thumbnail-4
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr thumbnail-5
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr thumbnail-6
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr photo-1
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr photo-2
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr photo-3
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr photo-4
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr photo-5
Antaivision With Night Vision Real-time Playback DVR, 4 Channel H264 Dvr photo-6
US$ 28 - 33 MOQ: 7 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Antaivision
Model Number:
HS-NH-3804BW
Contact Supplier Request Quote Chat Now
Antaivision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Antaivision
Model Number HS-NH-3804BW

Hi3520DV200  3 Series ONVIF 2.8 H.264 Digital Video Recorder









                                 3W                                                  3A                                                   3K



                         3R                                                   3L                                                   3M



                          3Y                                                    3P                                                   3J









FEATURES

HD iDVR Three in one: DVR/HVR/NVR ,Multi-input; supporting 4/8ch analogue video  encode,supporting ananlogue+network HD video

multi-input,supporting  pure network video input.

Step on the Internet:Remote control easily & conveniently without any complicated setting.

Compression algorithm ideal:Compression algorithm upgraded to H.264 High Profile, more advanced video compression technique makes

the code stream lowered at least 30%.

Playback quality:All real-time Synchronized decoding playback.

Main and Sub Stream:Support main stream and extra steam encode synchronously. Main stream is for local storage, extra stream is for

network real-time transmission, to easily solve the bottleneck problem of bandwidth.

Mobite monitor: supporting iPhone,Windows Mobile,BlackBerry,Symbian,Android.
Display:Supporting TV,HDMI  VGA,HDMI  simultaneous video output,VGA,HDMI support 1080P HDMI video output
Operation interface:Similarly CMS  operating interface design, to let you experience easily and conveniently.

Network: Powerful net service(support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center, etc),

complete enclosure(WEB, CMS, SDK), to easily achieve interconnection.

Browsers:compatible with Internet Explorer, Mozilla Firefox, Google Chrome, Safari.

Remote Access:With our own DDNS Service (ARSP), Remote operation step on the internet, Easy to use.Also dupport 3322,dyndns,

oray,myq-see,etc

Device  port:Supporing 1/2 SATA port,connecting with 1/2 6T HDD,supporting 2*USB2.0 port, supporting USB mouse, backup, record,

and upgrade ,etc .

Differentiation: Starting-up diaplays replace freely,more than 20 languages,more than 10 *GUI displays, 10* remote,dozens of front panel

for choice,easily achieve differentiated products.

Others:Complete circuit protection,unique  triple monitoring functions to ensure device never crash;Unique black box technology  to finish

the whole mpnotoring and lower maintaining cost largely.

System auto recovery after power failure
SPECIFICATIONS
Model DVR Model 4 Channel H.264 AHD-NH
HS-NH-3804BW (A,K,R,L,M,Y,P,J,Q,D,S,Z)
mainboard model PCBA-HS-NH-B3520DH-4
mainboard Image mainboard Image

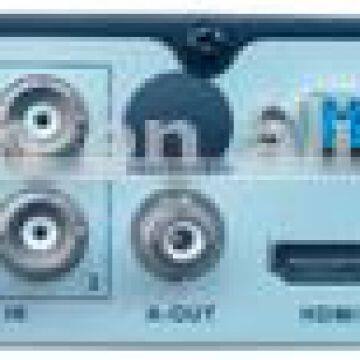

  back panel picture
System Main processor

Industrial grade embedded micro controller chip Huawei Hisilicon chipset

3520DV200
Operating system Embedded LINUX operating system
System resource Multi-channel real-time recording synchronously, multi-channel real-time playback,
multi-channel multi-user network operation, USB back up.
Display Operation interface 16 bit real color GUI interface support mouse operation
Multilingual Language YES, 28 kinds of language
Display screen

1/4 screen (set pure local input mode for example, others are decided by channel

mode)
Video Video Standard PAL/NTSC(1080N)
Image encode H.264(High Profile)
Monitor quality

Monitoring:D1(not supporting);VGA,HDMI:HDMI(supporting 1920*1080, 1280*720,

1440*900,1280*1024, 1024*768,800*600)
Playback quality AHD-NH/ AHD-M
Encode capability 4* 1080N(AHD-NH)@25fps
Decode capability 4* 1080N(AHD-NH)@25fps
Multi-Input
(ONVIF 2.8)		 Analogue:: 4* AHD-NH(1080N) / 4* AHD-M(720P) / 4* AHD-L(960H)
Analogue+ Network HD: 2*AHD-M(Analogue)+2*720P(Network);
Network HD:8*1080P / 8*720P / 4*1080P / 4*720P / 1*1080P
Audio Audio compression G.711A
Two-way communication support
Record and playback Record mode Manual, alarm, motion detection, timing
Local playback 1~4ch playback,local 4*1080P mode,Max 4ch playback
Video search Time, date, event, channel search
Storage and back up Space Usage

Video : 720P:10G~42G/day*channel,1080P:20G~80G/day*channel,

Audio 691.2M/day *channel
Video storage Local Hard Disk, Network
Back up mode Network backup, USB portable HDD, USB DVD-RW
Interface Video input 4ch BNC(1.0Vp-p, 75Ω)
Video output 1ch VGA,1ch HDMI
Audio input 4ch RCA  (200-2800mV,30KΩ)
Audio output 1ch RCA(200-3000mV,5KΩ) /1ch HDMI audio output
Alarm input No
Alarm output No
Network port 1*RJ45 10/100 Base-T self-adaptive Ethernet port
PTZ control 1*RS485 port, Support more than 20 kinds protocols.
USB port Support USB 2.0 port
HDD port Accommodates 1 SATA HDDs (1 HDD capacity up to 6TB)
Wireless Port 3G & WIFI ( Extented by USB)
User User level Admin / User
User right Users can set different permissions (How to use please refer to the manual book)
Password protection YES
Remote Remote Independent Operation YES
Download records YES
Remote Event Trigger Recording YES
CMS CMS Software for multiple DVR (up to 255 DVR simultaneously)
Browser Internet Explorer, Mozilla Firefox, Google Chrome, Safari
Live Audio YES
On-line user Max. 10
Mobile Surveillance

YES (supporting  iPad, iPhone, BlackBerry, Windows Mobile,

Symbian & Android;iPad, iPhone, Andriod  remote playback)
Network Protocol

DHCP,PPPOE,NTP,Email,IP Authority,DDNS,FTP,ARSP,Alarm Center,

Wireless Dialing,UPNP,Wifi,RTSP,Cloud Service,PMS
Alarm Motion detection

16 × 12 grids per channel;6 adjustable parameters for accurate detection

(for local analog channel only)
Event Notification FTP / E-Mail / PMS
Pre-alarm Recording YES
Video loss Video loss notification
Buzzer YES
Others IR remote controller Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in)
Remote  control YES
Cooling fan fNO
Tour YES
Power Source (±10%) DC 12V /2A
Power Consumption (±10%) <10W(Without HDD)
Operating Temperature 0℃ ~ +55℃
Operating humidity 10%-90%
Atmosphere 86kpa-106kpa
Dimensions (mm) ** 250mm(L)* 210mm(W)* 45mm(H)
System Recovery System auto recovery after power failure
Package Net Weight 0.9kg±0.1kg
Carton Box Size

5units packing:358mm(L)* 83mm(W)* 270mm(H);

10units packing:325mm(L)* 80mm(W)*255mm(H) ;
Package Size

 5units packing:440mm(L)* 375mm(W)*285mm(H) ;

10units packing:415mm(L)* 335mm(W)*525mm(H) ;
Gross Weight 5units packing:7.5kg±0.5kg;       10units packing:14.5kg±0.5kg;
*The specifications are subject to change without notice.
** Dimensional tolerance: ±3mm







About us:



Antai vision Technology Company Limited, founded in 2007, located in south of china, specialized in the research, development, manufacturing and sales of the DVR, Mobile DVR and wifi kits etc. Every month our selling quantity is up to 90,000 pieces DVR and more than 10,000 of mobile DVR, the yearly selling amount is up to three hundred million USD, each 3 month we will launch one new products. Each year our increasing rate is up to 200 percent. The products is selling to different country all over the world, our main market is America, Turkey, Iran, middle east and European countries. Antai vision has gained a good reputation by our color products line and good quality.









Exhibition

Exhibition:

Antaivision with night vision real-time playback DVR, 4 channel h264 dvr Antaivision with night vision real-time playback DVR, 4 channel h264 dvr





After sales service:



We offer 2 years warranty and whole life support:



1),software: we establish a neutral software website so that customer can go there to download all of the upgrade software by themselves.

2),hardware: we offer complete reparation book and offer free electronic components for your reparation.



The most important is we offer customized service so that you can valued your brand:



1,Unique hardware design (including front panels, mainboard, color box ect)

2,Unique software design (including UI, APP, additional special software)









FAQ:





Case Description:







The host computer fails to start after being connected to the power supply?

Check whether the power switch on the back of the host computer is opened.
Check whether the starting operation is correct.
Check whether the source power is sufficient.



Does it keep in the starting-up logo frame?

Physical damages have occurred to the hard disk.
The system guiding is abnormal.



Starting-up is very slow?

The hard disk error will lead to repeated hard disk check by the DVR host computer, thus causing slowly starting-up.



The host computer restarts repeatedly?

Please check power supply of the host computer. After hitching a lot of hard disks, it’s possible that the host computer starts up repeatedly due to insufficient power.
Please disconnect the gridline, and then check if the machine operation is normal. Network with serious failures is also likely to lead to repeated starting-up of the host computer.



The machine crashed during reproducing or watching the visual recording information by proper application?

Check whether there is anything wrong with hitching of the hard disk, and change the failed one in time.
Whether the ambient temperature is high.
Whether there is any heavy-current device near to the host computer or the circumscribing video device. The heavy current impacts the video cable, and make the host computer fail to work properly, thus leading to system crash.



Updating operation has failed?

The host computer is unable to identify the poor U-disk due to its poor compatibility. It’s recommended to test more than one U, or to use new-brand U-disks.
The USB port contact is poor. During updating, the voltage fluctuates dramatically.



The image on the invigilator or the TV set is black and white?

Check whether the video input, DVR host computer, invigilator or the TV set system is
absolutely consistent. If not, please set the invigilator or the TV set system option in the automatic
identification state.



There is no anything displayed on the invigilator or the TV set?

Check whether the invigilator power supply is opened, and whether the invigilator’s brightness is in its lowest condition.
Check whether the video cable is properly connected, and whether there is anything wrong in the circuit.











If you would like to know more about us and to be our partners in the near future, pls feel free to contact with us and visit our factory.
