Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > H.264 Network Security DVR 4ch AHD 1080P DVR

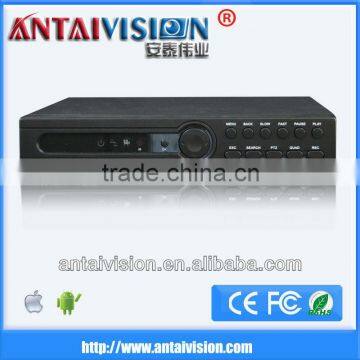

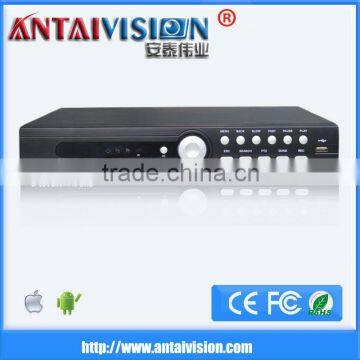

H.264 Network Security DVR 4ch AHD 1080P DVR
US$ 22.00 - 22.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANTAI
Model Number:
HY-NH-3004D
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Antaivision AHD-NH h 264 4 Channel Realtime DVR With New FunctionsUS$ 25 - 30MOQ: 10 Pieces -
Promotion!4ch H.264 1080N Real-time Playback All in One Cctv DVR for Home Security System With HDMI Output, for 1 SATAUS$ 30 - 40MOQ: 1000 Pieces
-
Small Dimension PAL Video Standard AHD Hybrid 1080n Onvif DVR 4CHUS$ 25.00 - 25.00MOQ: 1 Piece
-
1080N H.264 4 Channel DVR 4Ch Hybrid Mode HDMI Cloud P2P Support Android Online View DVRUS$ 25 - 35MOQ: 1000 Pieces
-
5 in 1, AHD,TVI,CVI,IP,ANANOLOG Compatible DVRUS$ 22.00 - 22.00MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ANTAI
Model Number
HY-NH-3004D
Product Description
H.264 Network Security DVR 4ch AHD 1080P DVR
Specification:
| System | Main processor | Industrial grade embedded micro controller chip Taiwan Zhiyuan chipset GM8283 | |
| Operating system | Embedded LINUX operating system | ||
| System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
||
| Display | Operation interface | 16 bit real color GUI interface support mouse operation | |
| Multilingual Language | YES, 25 kinds of language | ||
| Display screen | 1/4 screen | ||
| Video | Video Standard | PAL / NTSC(1080N) | |
| Image encode | H.264(Main Profile) | ||
| Capture function | YES | ||
| Monitor quality | Monitor:D1; VGA & HDMI: (1920*1080,1280*1024,1280*720,1024*768) | ||
| Playback quality | 1080N/720P | 1080N/720P | |
| Encode capability | 4ch 1080N@25fps | 4ch 1080N@25fps | |
| Decode capability | 4ch 1080N@25fps | 4ch 1080N@25fps | |
|
Multi-Input (ONVIF 2.8) |
Analogue:4ch 1080N | Analogue:4ch 1080N | |
| Analogue+ Network HD:1080N(AHD-NH)*2+1080P(network)*2 | Analogue+ Network HD:1080N(AHD-NH)*2+1080P(network)*2 | ||
| Network:4*1080P(network) | Network:4*1080P(network) | ||
| Audio | Audio compression | G.711A | |
| Record and playback | Record mode | Manual, alarm, motion detection, timing | |
| Local playback | 1--4ch (local mode) | ||
| Video search | Time, date, event, channel search | ||
| Storage and back up | Space Usage | Video 720P:10G~42G/day*channel,1080P:20G~80G/day*channel,Audio 691.2M/day *channel | |
| Video storage | Local Hard Disk, Network | ||
| Back up mode | Network backup, USB portable HDD | ||
| Interface | Video input | 4ch BNC(1.0Vp-p,75Ω) | |
| Video output | 1ch CVBS, 1ch VGA, 1ch HDMI | 1ch CVBS, 1ch VGA, 1ch HDMI | |
| Audio input | 4ch RCA (200-2800mV,30KΩ) | 1ch RCA (200-2800mV,30KΩ) | |
| Audio output | 1ch RCA (200-3000mV,5KΩ)/1ch HDMI audio output | ||
| Alarm input | NO | ||
| Alarm output | NO | ||
| Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | ||
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | NO | |
| USB port | Support USB 2.0 port | ||
| HDD port | Accommodates 1 SATA HDDs (1 HDD capacity up to 4TB) | ||
| Wireless Port | 3G & WIFI ( Extented by USB) | 3G & WIFI ( Extented by USB) | |
| User | User level | Admin / User | |
| User right | Users can set different permissions (How to use please refer to the manual book) | ||
| Password protection | YES | ||
| Remote | Remote Independent Operation | YES | |
| Download records | YES | ||
| Remote Event Trigger Recording | YES | ||
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | ||
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | ||
| Live Audio | YES | ||
| On-line user | Max. 10 | ||
| Mobile Surveillance | YES (supporting iPad, iPhone & Android;iPad, iPhone, Andriod remote playback) | ||
| Network Protocol | DHCP, PPPOE, FTP, DDNS, NTP, UPNP, EMAIL, IP authority, 3G, Wireless settings | ||
| Alarm | Motion detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) | |
| Event Notification | FTP / E-Mail | ||
| Pre-alarm Recording | YES | ||
| Video loss | Video loss notification | ||
| Buzzer | YES | NO | |
| Others | IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) | |
| Remote control | YES | ||
| Cooling fan | NO | ||
| Tour | YES | ||
| Power Source (±10%) | DC 12V / 2A | ||
| Power Consumption (±10%) | <10W(without HDD) | ||
| Operating Temperature | 0℃ ~ +55℃ | ||
| Dimensions (mm) ** | 250mm(L)* 210mm(W)* 45mm(H) | ||
| System Recovery | System auto recovery after power failure | ||
| Package | Net Weight | 0.92kg±0.1kg | |
| Carton Box Size | 5units packing:358mm(L)* 83mm(W)* 270mm(H); 10units packing:325mm(L)* 80mm(W)*255mm(H) ; | ||
| Package Size | 5units packing:440mm(L)* 375mm(W)*285mm(H) ; 10units packing:415mm(L)* 335mm(W)*525mm(H) ; | ||
| Gross Weight | 5units packing:7.5kg±0.5kg; 10units packing:14.0kg±0.5kg; | ||
Packaging & Shipping
Company Information
Exhibition
Certification
Our Services
After sales service:
We offer 3 years warranty and whole life support:
1.software:we establish a neutral software website so that customer can go there to download all of the upgrade software by themselves.
2.hardware:we offer complete reparation book and offer free electronic components for your reparation.
The most important is we offer customized service so that you can valued your brand:
1.Unique hardware design(including front pannels,mainboard,color box ect)
2.Unique software design(including UI,APP,additional special software)
