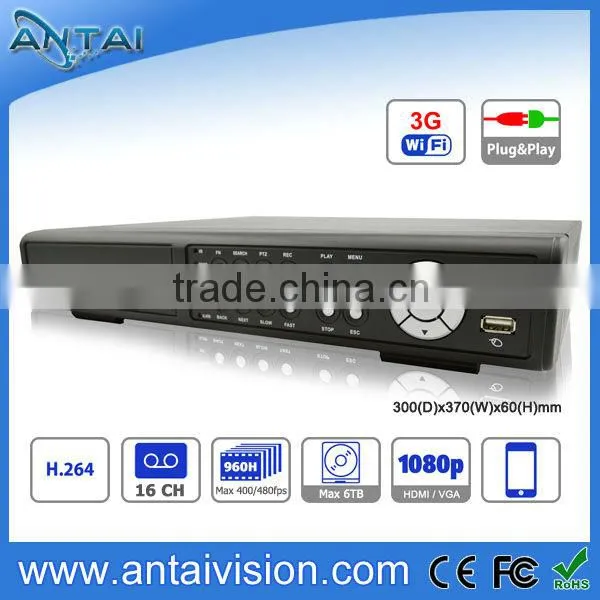

Manufacture 16ch 960h DVR With HDMI and Support HVR/NVR/DVR 3 in 1

Manufacture 16ch 960h DVR With HDMI and Support HVR/NVR/DVR 3 in 1 thumbnail-1
Manufacture 16ch 960h DVR With HDMI and Support HVR/NVR/DVR 3 in 1 photo-1
US$ 102 - 108 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Antai
Model Number:
DVR-5516HE
Contact Supplier Request Quote Chat Now
Antaivision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Antai
Model Number DVR-5516HE

Specifications

1.DVR Stand alone DVR Network DVR
2.Real time 960H Resolution
3.P2P Cloud DVR
4.Support mobile phone view
5.Em

  Specification

System Main processor Industrial grade embedded micro controller chip Huawei Hisilicon chipset 3531
Operating system Embedded LINUX operating system
System resource Multi-channel real-time recording synchronously, multi-channel real-time playback,
multi-channel multi-user network operation, USB back up.
Display Operation interface 16 bit real color GUI interface support mouse operation
Multilingual Language YES, 28 kinds of language
Display screen 1/4/8/9/16 Screen
Video            Video Standard PAL(625 lines, 50fps); NTSC(525lines, 60fps)
Image encode H.264(Main Profile); JPEG Snapshot
Monitor quality Monitor:D1; VGA & HDMI: (1920*1080,1280*720,1440*900,1280*1024,1024*768)
Playback quality 960H/D1/HD1/CIF
Encode capability 16ch 960H/D1 real-time
Decode capability 960H mode:8ch 960H real-time
D1 mode :16ch D1 real-time
Multi-Input
(ONVIF 2.3)		 Analogue: 16 *960H/16*D1
Analogue+ Network HD: 8*D1+16 *D1/8*D1+8*720P/8*D1+(2*1080P+2*720P)/4 *D1+20*D1;
/4 *D1+(2*1080P+10*D1)/4 *D1+(1*1080P+1*720P+10*960H);
Network HD: 24* D1/20*960H/4*1080P/1*1080P+8*720P/2*1080P+4*720P+4*960H
Audio Audio compression G.711A
Two-way Communication YES
Record and playback Record mode Manual, alarm, motion detection, timing
Snapshot NO
Local playback 960H mode:8*960H@25fps
D1 mode:16*D1@25fps
Video search Time, date, event, channel search
Storage and back up Space Usage Video CIF:4~5G/day*channel, D1:16~20G/day *channel,960H:9~42G/day*channel, 720P:10G~42G/day*channel,1080P:20G~80G/day*channel,Audio 691.2M/day *channel
Video storage Local Hard Disk, Network
Back up mode Network backup, USB portable HDD, USB DVD-RW
Interface Video input 16ch BNC(1.0Vp-p,75Ω)
Video output 1ch BNC(1.0Vp-p,75Ω), 1ch VGA,1ch HDMI
Loop Output NO
Audio input 16ch RCA (200-2800mV,30KΩ)
Audio output 1ch RCA(200-3000mV,5KΩ) /1ch HDMI audio output
Alarm input 8ch
Alarm output 1ch
Network port 1*RJ45 10/100 Base-T self-adaptive Ethernet port
PTZ control 1*RS485 port, Support more than 20 kinds protocols.
USB port Support USB 2.0 port
HDD port Accommodates 2 SATA HDDs (1 HDD capacity up to 3TB)
Wireless Port 3G & WIFI ( Extented by USB)
User User level Admin / User
User right Users can set different permissions (How to use please refer to the manual book)
Password protection YES
Remote Remote Independent Operation YES
Download records YES
Remote Event Trigger Recording YES
CMS CMS Software for multiple DVR (up to 255 DVR simultaneously)
Browser Internet Explorer, Mozilla Firefox, Google Chrome, Safari
Live Audio YES
On-line user Max. 10
Mobile Surveillance YES (Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod have remote playback function)
Network Protocol DHCP,PPPOE,NTP,Email,IP Authority,DDNS,FTP,ARSP,Alarm Center,Wireless Dialing,Mobile Monitor,UPNP,Wifi,RTSP,Cloud Service
Alarm Motion detection 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only)
Event Notification FTP / E-Mail
Pre-alarm Recording YES
Video loss Video loss notification
Buzzer YES
Other IR remote controller Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in)
Remote control YES
Cooling fan YES
Tour YES
Power Source (±10%) DC 12V / 5A
Power Consumption (±10%) <15W (without HDD)
Operating Temperature 0°C ~ +55°C
Dimensions (mm) ** 370mm(L)* 300mm(W)* 60mm(H)
System Recovery System auto recovery after power failure
Package Net Weight 2.25kg±0.1kg
Carton Box Size 410mm(L)* 124mm(W)* 352mm(H)
Package Size 640mm(L)* 425mm(W)* 370mm(H)
Gross Weight 16.0kg±0.5kg
