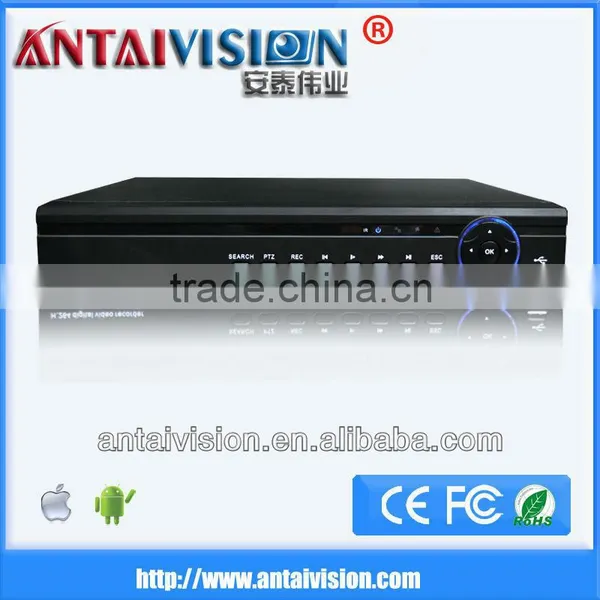

16ch Mini DVR With HDMIi P2P Cloud Technology
US$ 65 - 67
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
antaivision
Model Number:
AT-4316TW-S
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
16ch H.264 960H Network Realtime Recording CCTV DVRUS$ 112 - 117MOQ: 50 Pieces -
2014 Hot Selling! 16CH 960H HD DVR With 3G WifiUS$ 64 - 65MOQ: 50 Pieces
-
960H Dvr HVR/NVR/DVR 3 in 1US$ 115 - 125MOQ: 1 Piece
-
Hot Selling! 16CH DVRUS$ 106 - 108MOQ: 50 Pieces
-
16ch H.264 Network Realtime Recording CCTV DVRUS$ 112 - 117MOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
antaivision
Model Number
AT-4316TW-S
Specifications
16 D1 Recording / 16CH D1 Playback16ch Video in / 1ch Video out, 1x HDD
Models: AT-4316TW-S
Features:
1. Support various types of mobile monitoring (iPhone, Android)
2. screen preview, recording, playback, backup, network and mobile terminal operating simultaneously.
3. Powerful network services (support DHCP / ADSL, PPPOE, DDNS, UDP, TCP / IP, etc.), perfect (WEB, client), easy to achieve interoperability
4. Supported Web browser (Internet 32-bit browser, 360, Sogou, etc.)
5. Support DDNS domain name service, such as: 3322 (Greek network), dyndns, oray (peanut shells), myq-see, NO-IP, make monitoring becomes easy and enjoyable.
Specifications
| main processor | High performance embedded microprocessor HI3521 | |
| operation system | Embedded LINUX operating system | |
| system resource | Pentaplex function: Live, recording, playback, backup& remote access and usb backup | |
| operation interface | 16-bit true color graphical menu interface, support mouse, remote control, key operation | |
| Multi-Language | YES, support 14 kinds of language | |
| display | 1/2/4/8/9/16 display | |
| Video Standard | PAL(625TVL,50HZ/S);NTSC(525TVL ,60HZ/S) | |
| Image Encode | H.264(Main Profile) | |
| Monitor Quality | monitor:D1; VGA & HDMI: (1920*1080,1280*1024,1024*768) | |
| Playback Quality | D1/CIF | |
| encode capacity | 16ch D1realtime | |
| decode capacity | 8ch D1not realtime @18fps | |
| Local playback | 8ch D1 not realtime @18fps playback | |
| record serch | Time serch ,calendar serch ,event serch ,channel serch | |
| compacity using | video CIF:4~5G/day*channel , D1:16~20G/day *channel ,audio 691.2M/day *channel | |
| video storage | HDD. Network | |
| Back mode | network backup,USB HDD ,U Disk (FAT32) | |
| video input | 16ch BNC(1.0Vp-p, 75Ω) | |
| video output | 1ch BNC(1.0Vp-p,75Ω), 1ch VGA,1ch HDMI | |
| audio input | 8ch RCA (200-2800mV,30KΩ) | |
| audio output | 1ch RCA (200-3000mV,5KΩ) | |
| network port | 1RJ45 10M/100M adaptive ethernet port | |
| control port | 1RS485port ,support 5 kinds of PTZ protocol | |
| USB interface | 2 USB 2.0 ports | |
| HDD interface | 1or 2 SATA HDD ,(each max support 2TB) | |
| wireless interface | 3G & WIFI (USB extension) | |
| user limited | different user can set different promission(the detail can refer to user manual ) | |
| Monitor software | Free CMS,one page can support 64 channel ,max connect 255 sets DVR,CMS can be set into a suspended window and worked while monitoring at the same time | |
| Browser | Internatie32,360,sougou | |
| online Audio | YES | |
| online user | max 10 | |
| Mobile monitor | YES (support iPad, iPhone,Android;iPad, iPhone, Andriod remote playback) | |
| Network protocol | DHCP/ADSL,PPPOE, SMTP,TCP / IP,DDNS,wireless dial,WIFI,P2P | |
| Mition detection | YES | |
| Alarm mode | ||
| Pre-alarm recording | YES | |
| Video Lost | video loss detection alarm | |
| power | DC 12V /3A | |
| work temperature | 0°C ~ +55°C | |
| Size | 325mm(L)* 245mm(W)* 52mm(H) | |
Product Description
Packaging & Shipping
Our Services
1.OEM/ODM available:
1).Silk print logo on the front panel;
2).Provide many kind of panels to choose;
2.After-sale Service:
1).All products will been tested good before deliver.
2).All products will been checked good before packing.
3).All products warranty for one year,after the warranty period ,still provide technological support ,help the client to solve problem.
3.Payment:
30% prepaid as deposit,70%pay before shipment .
