High efficient waste tire tyre recycling grinding machine
WASTE TYRE RECYCLING PRODUCTION LINE

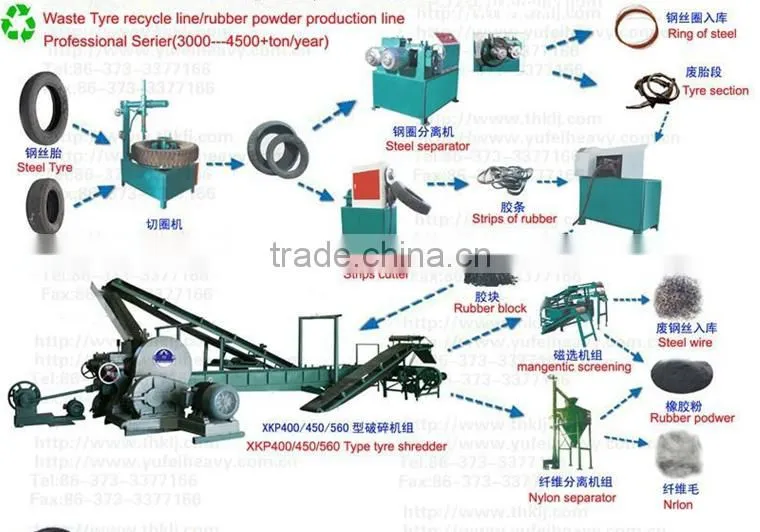

1. Working processing:
Cut off tyre steel bead----cut tyre body into strips ----cut the strips into 50*50mm-----crush into 10-30 mesh-----separate steel wire------separate fiber----pure rubber powder
2 Technical parameters

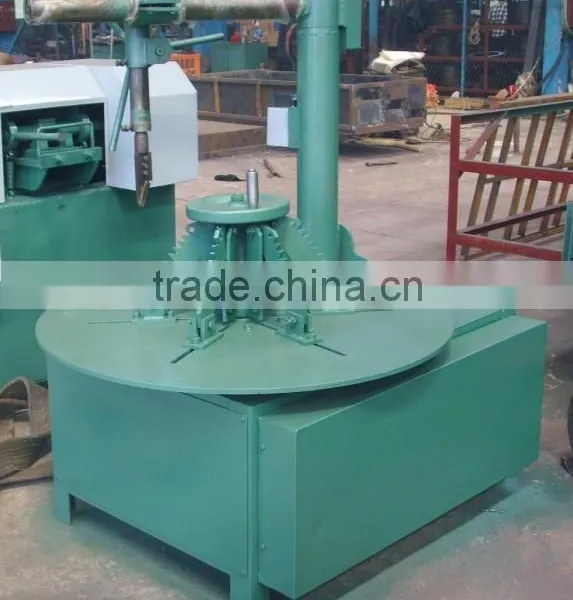

1)Ring cutter:
Item |
Specification |
Motor power |
5.5 |
Speed of main screw |
46.8 r/min |
MAX Diameter of tyre |
1200mm |
Dimension |
1100*900*1700mm |
2) Loop machine:
Item |
Specification |
Motor power |
15 KW |
Linear speed of front roller |
15.5 m/min |
Ratio of speed |
1.1 |
Dimension |
1520*1150*12101 |
Purpose:To Separate the steel ring from the rubber after 1 step. | |
3)strip cutter
Name |
Parameter |
Motor Power |
5.5 |
Disc Diameter |
380 |
Rotate Speed |
18.4 |
Dimension |
1290*870*1550 |
|
Purpose: To cut the old tyre intostrip
| |
4) block cutter
Item |
Specification |
motor power |
11kw |
Speed of main screw |
420 r/min |
Out diameter of cutter |
200mm |
Dimension |
1130*830*1100 |
Purpose: To Cut the strip into block | |

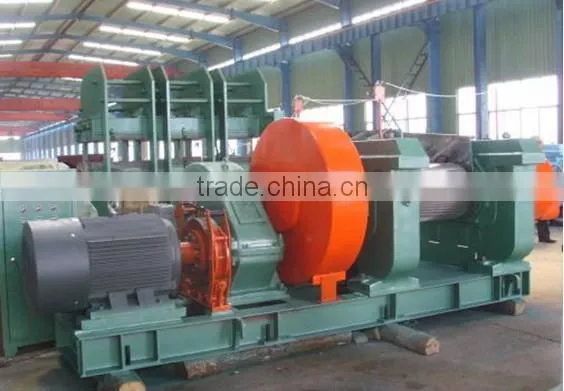

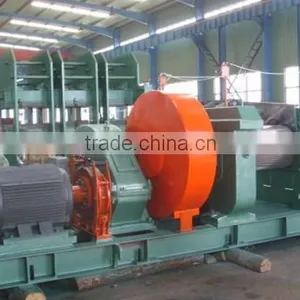

5) tyre crusher
model |
XKP-400 Cracker |
XKP-450 Cracker |
XKP-560 cracker |
Working dia of front roll(mm) |
400 |
450 |
560 |
Working dia of rear roll(mm) |
400(groove roll) |
450(groove roll) |
510(groove roll) |
Working length of roll(mm) |
600 |
650 |
800 |
Linear speed of front roll(m/min) |
17.32 |
23.2 |
25.56 |
Friction ratio of rolls(front/rear) |
1:1.38 |
1:1.38 |
1:1.30 |
Max.gap(mm) |
8 |
8 |
15 |
Capacity (kg/h) |
200-300 |
600-800 |
-1500 |
Main motor power(kw) |
45 |
55 |
75 |
Overall diemension.(mm) |
3950×1800 |
4770×1846 |
5064×2284 |
.................................................More information will be offered you when you contact us.
