Product Description

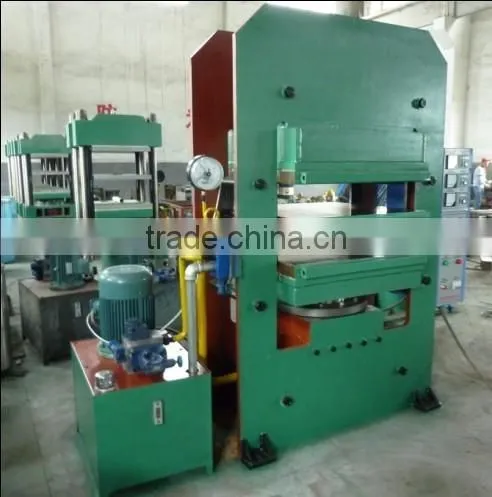

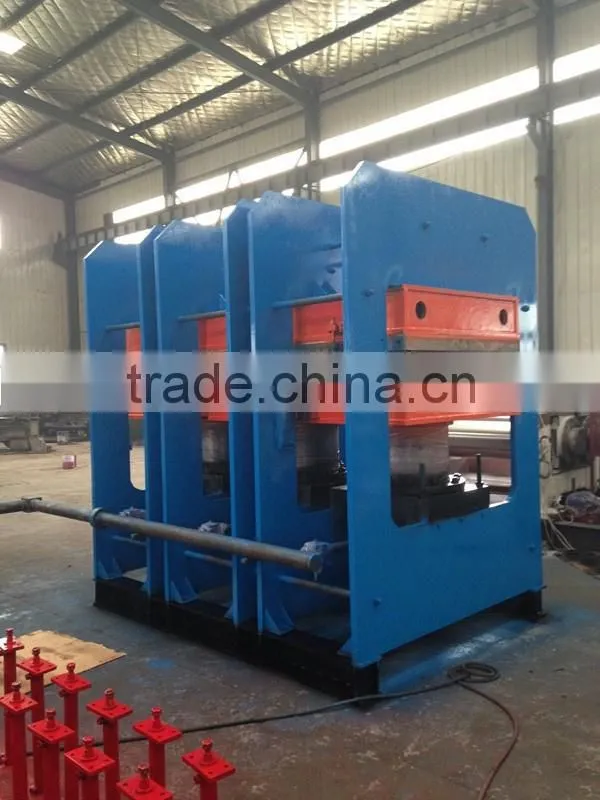

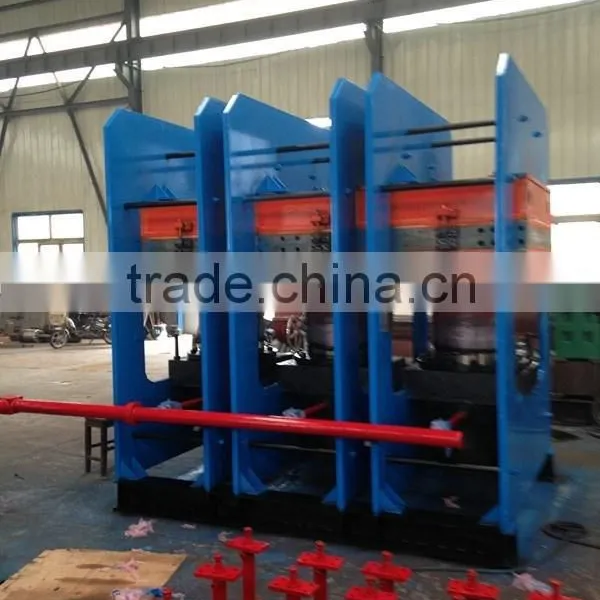

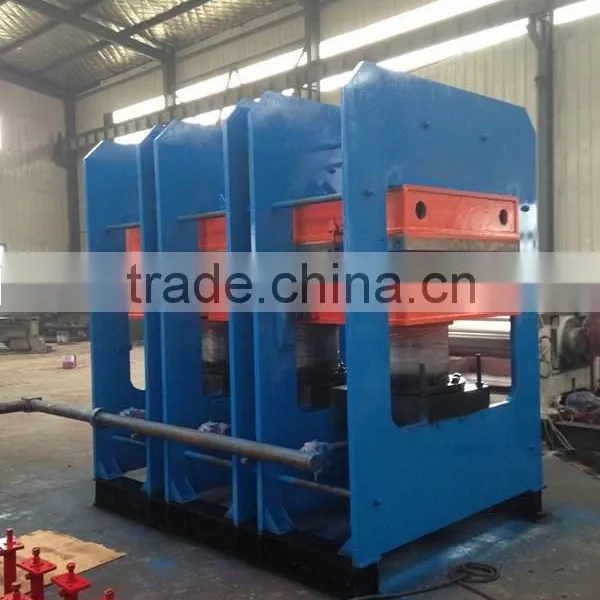

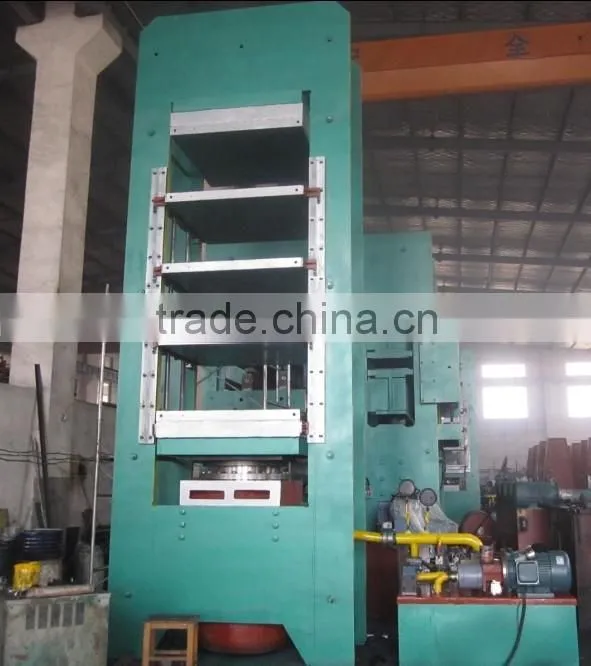

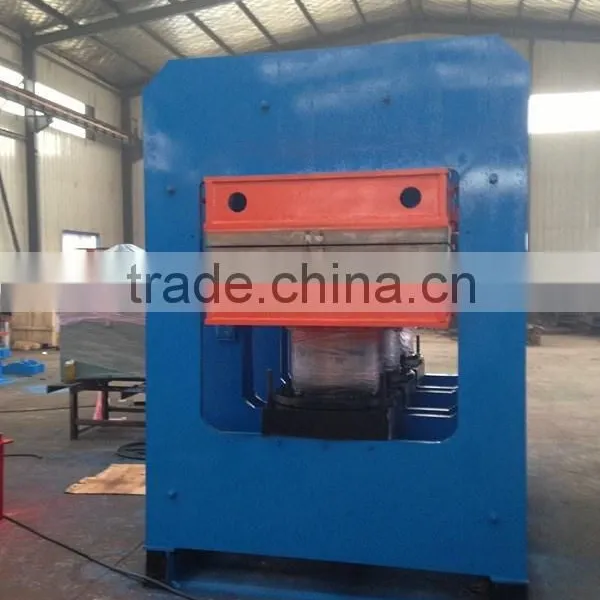

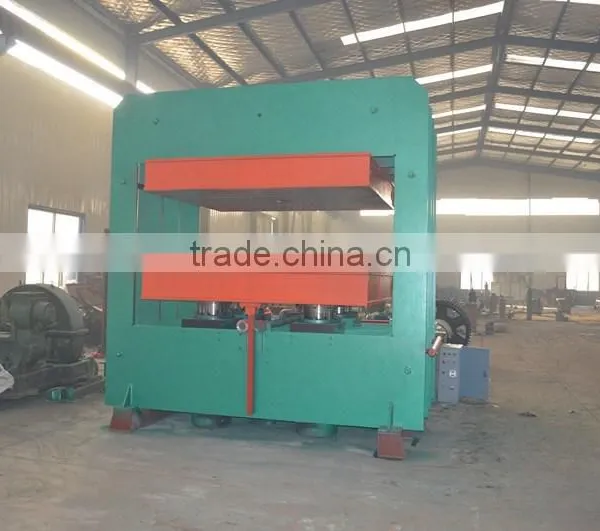

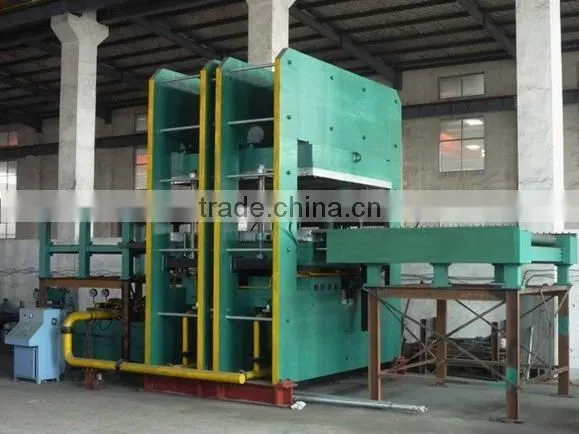

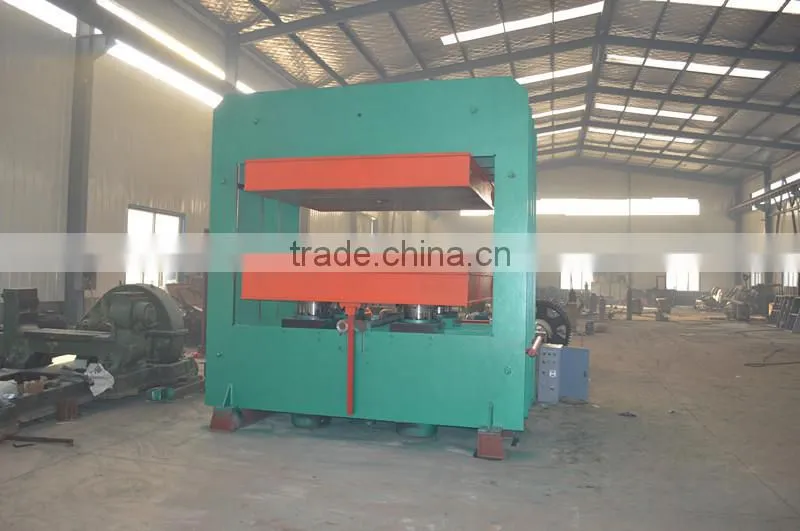

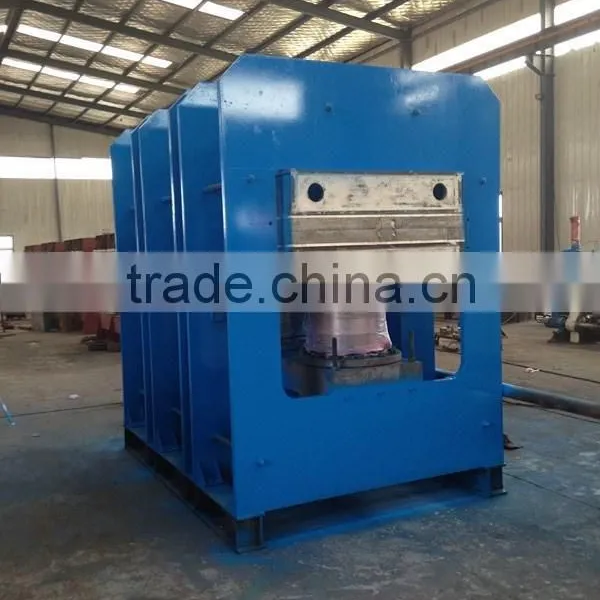

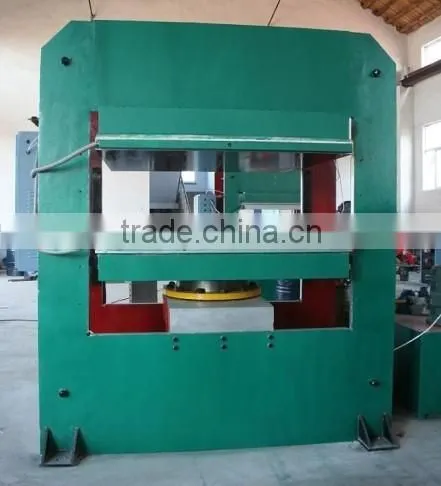

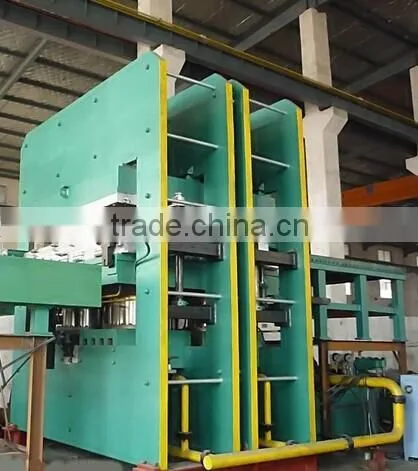

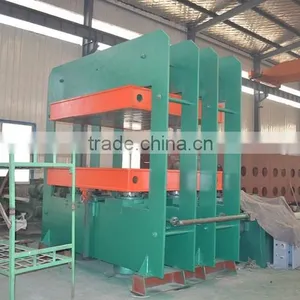

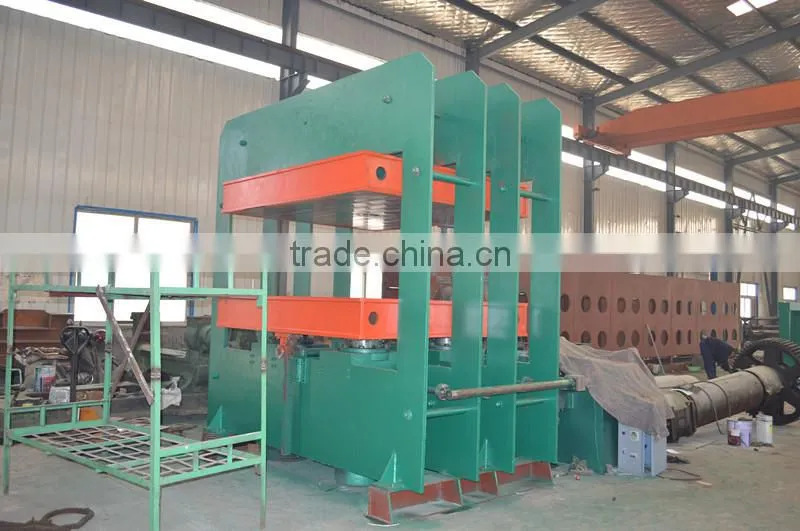

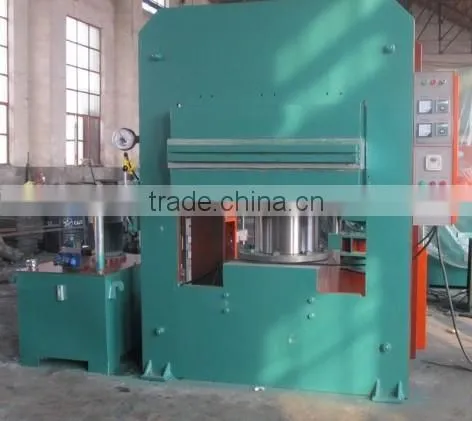

This vulcanizing machine is used for vulcanizing all kinds of rubber and plastic model products, and non-model products. Being a frame structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
Technical parameters:
Type |
XLB-D2100× 2100× 2 |
XLB-D2100× 2100× 1 |
Total pressure(MN) |
2200T |
2200T |
Plate size(mm) |
2100× 2100 |
2100× 2100 |
Plate clearance(mm) |
400 |
400 |
Working layer number |
2 |
1 |
Piston stroke(mm) |
800 |
400 |
Plate unit pressure(MPa) |
5 |
5 |
Main motor power(KW) |
11KW X 3 |
11KW X 3 |
Dia of piston |
650mm |
650mm |
Hydraulic cylinder quantity |
4 pcs |
4 pcs |
System pressure |
16.9 MPa |
16.9 MPa |
Heating type |
Electric heating |
Electric heating |
Control type |
PLC control |
PLC control |
Structure type |
Frame type |
Frame type |
Close mould speed(mm/s) |
≥16 |
≥16 |
Open mould speed(mm/s) |
≥20 |
≥20 |
Overall dimension(L× W× H)(mm) |
3200×2200 × 4500 |
3200×2200 × 4000 |
Weight(kg) |
Approx 78T |
Approx 68T |
we can design various model plate vulcanizing pess according to customer's detailed requirements, welcome to you to visit our factory.
